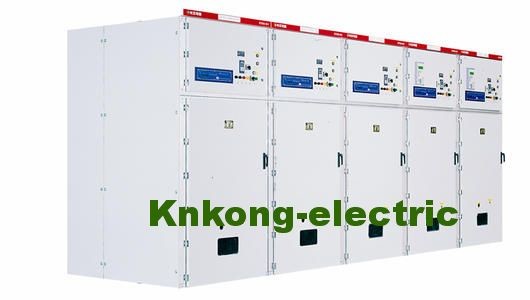

2000A Medium Voltage Switchgear Electrical Panel 33KV Switchgear
2000A Medium Voltage Switchgear Electrical Panel 33KV Switchgear
Specifications
Brand Name :
KNKONG
Model Number :
KYN61A-40.5KV
Certification :
GB,ISO IEC
Place of Origin :
China
MOQ :
1
Price :
USD 6000-15000
Payment Terms :
L/C, T/T
Supply Ability :
50 units/Month
Delivery Time :
15 working days
Packaging Details :
Standard export packaging
Runing Voltage :
Max 40.5KV
Runing Current :
Max 2000A
Frequency :
50/60Hz
Standards :
IEC ISO GB
OEM/ODM :
Available
Manufactory :
KNKONG-ELECTRIC
Description
3 Phase Medium Voltage Switchgear 2000A electrical Panel
KYN61-40.5KV medium voltage switchgear,
Knkong/ABB/Schneider VCB
40.5KV, 3-phase, AC 50/60Hz
Complete ISO IEC standard
For the design switchgear service please inquire by email.

Product Introduction

KYN61-40.5 switch cabinet is a three-phase AC 50Hz, rated voltage 40.5kV indoor complete power distribution device. It has the characteristics of good exchangeability and easy replacement.

Working environment:

a) Air temperature: -25℃~+40℃

b) Humidity: Monthly humidity 95%; Daily humidity 90%.

c) Altitude no more than 2500m

d) Ambient air not apparently polluted by corrosive and flammable gas, vapor, etc.

e) No frequent violent shake

Technical data

Items Unit Data
Voltage KV 40.5
Frequency Hz 50
Current A 1250,1600,2000
Short-circuit Breaking Current KA 25,31.5
Making Current (Peak) KA 63,80
4s Thermal Stability Current KA 25,31.5
Dynamic Current (Peak) KA 63,80
Insulation Level 1min Power Frequency Withstand Voltage (r.m.s) KV 95
Lightning Impulse Withstand Voltage (Peak) KV 185
1min Power Frequency Voltage Across the open gap (r.m.s) KV 118
Lightning Impulse Withstand Voltage Across the open gap (Peak) KV 215
Enclosure Protection Class

Enclosure IP4X,

Between Compartments IP2X
Enclosure Dimension (Width*Depth*Height) mm 1400*2800*2600
1600*2800*2600
Type of Circuit Breaker VCB: ZN85-40.5
SF6 Circuit Breaker

*Note: order switchgear should provide SLD(Single-line diagram) by customer

VS1-40.5 Technical data

Items Unit Date
voltage

KV

 40.5
short-time power frequency withstand voltage (1min) 95
lightning impulse withstand voltage (peak) 185
frequency Hz 50/60
current A 1250 1600 2000 2500 4000
short-circuit drop-out current KA 25 31.5
short-time withstand current 25 31.5
short-time continual time s 4
peak withstand current KA 63 80
short-circuit closing current 63 80
single/ back-to-back capacitor bank drop-out current A 630/400
Opening time (rated volt.) ms 35~60
Closing time (rated volt.) 50~100
Mechanical life times 20000
break times for rated short drop-out current s 20
operation voltage V AC110/220 DC110/220
current of power storing motor W 230
Average opening speed m/s 1.6~2.0
Average closing speed 0.5~0.8
operation procedure

opening-0.3s-closing

opening-180s-closing opening


Knkong Electric 33KV switchgear has served the international market for over the past 10 years.
