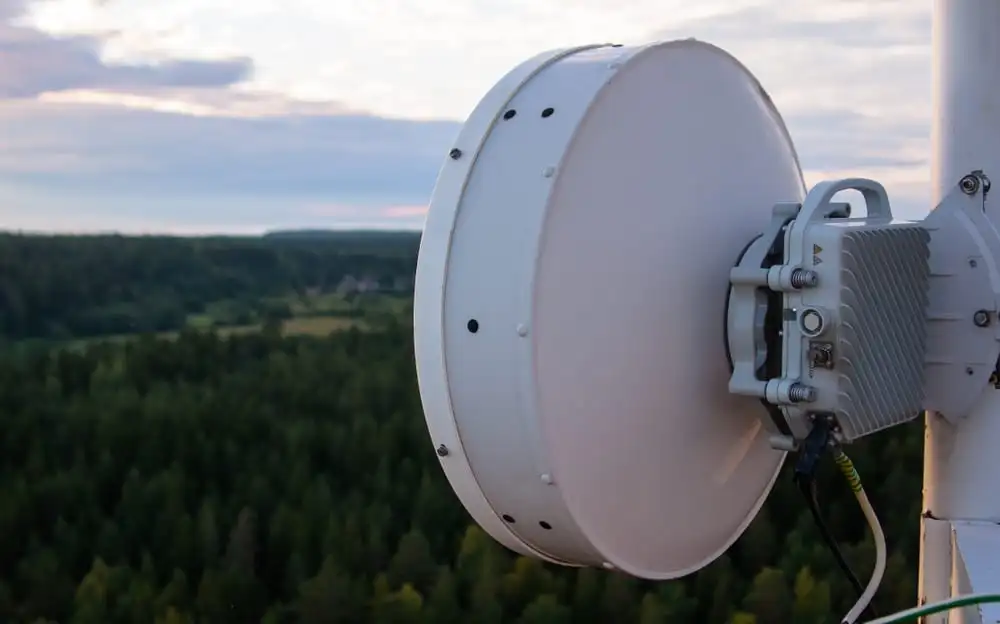

0.9m/3ft Standard Dual Polarized Antenna For Mission Critical Communication Needs
0.9m/3ft Standard Dual Polarized Antenna For Mission Critical Communication Needs
Specifications
Brand Name :
Famous
Model Number :
Microwave Parabolic Antenna
Certification :
CE，ISO9001
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T ， L/C
Packaging Details :
Standard export packaging/customizable packaging
name :
Microwave Parabolic Antenna
Diameter of Mounting Pole :
φ114 mm
Fine Azimuth Adjustment :
Coarse 360°Fine±15°
Fine Elevation Adjustment :
Fine ±10°
Wind Velocity Operational :
180km/h
Wind Velocity Survival Rating :
250km/h
Ice-load :
25.4 mm
Operational Temperature :
-55~+70℃
Description

Versatile Applications:

From satellite communication and wireless backhaul networks to radar systems and radio astronomy, the Microwave Parabolic Antenna finds widespread applications across various industries. Its versatility, combined with high performance and reliability, makes it a preferred choice for mission-critical communication needs.

Features:

  • Stable gain over ultra-wide bandwidth
  • Comes pre-assembled from the factory for quickest time to tower
  • Includes radome ensuring robust and reliable performance under the most challenging condition
  • Optimized F/B & side-lobe suppression minimizes interference
  • Installs in minutes to reduce service calls and installation time
  • Heavy-duty bracket with fine elevation and azimuth adjustment
  • Heavy-duty hardware survives 250Km/h wind speeds

Electrical performance:

Antenna Model

Antenna Size(m)

Frequency (GHz)

Gain(dBi)

3dB BW

(degs)

XPD (dB)

VSWR

F/B radio

(dB)

ISO

Low

Mid

Top

CM09U6WD

0.9

5.925-7.125

32.7

33.5

34.3

3.6

30

1.3

58

35

CM09U7WD

0.9

7.125-8.5

34.3

35.1

35.8

2.8

30

1.3

59

35

CM09U10WD

0.9

10.125-11.7

37.0

38.0

38.6

2.0

30

1.3

63

35

CM09U13D

0.9

12.75-13.25

39.3

39.5

39.7

1.7

30

1.3

64

35

CM09U15D

0.9

14.4-15.35

40.4

40.7

41

1.5

30

1.3

59

35

CM09U18D

0.9

17.7-19.7

42.2

42.7

43.1

1.2

30

1.3

68

35

CM09U23D

0.9

21.2-23.6

43.7

44.2

41.1

1.0

30

1.3

69

35

CM09U26D

0.9

24.2-26.5

44.9

45.3

45.7

0.9

30

1.3

70

35

Mechanical performance:

Diameter of Mounting Pole

Φ114 mm

Fine Azimuth Adjustment

Coarse 360° Fine ±15°

Fine Elevation Adjustment

Fine ±10°

Wind Velocity Operational

162km/h

Wind Velocity Survival Rating

250km/h

Ice-load

25.4 mm

Operational Temperature

-45℃~ +65℃

1.The low/mid/high gain has≤-0.5dBi tolerance is within the normal range;

2.F/Bradio:Denotes highest radiation relative to the main beam,at 180°±40°,across the band.Production antennas do not exceed rated values by more than 2 dB unless stated otherwise;
