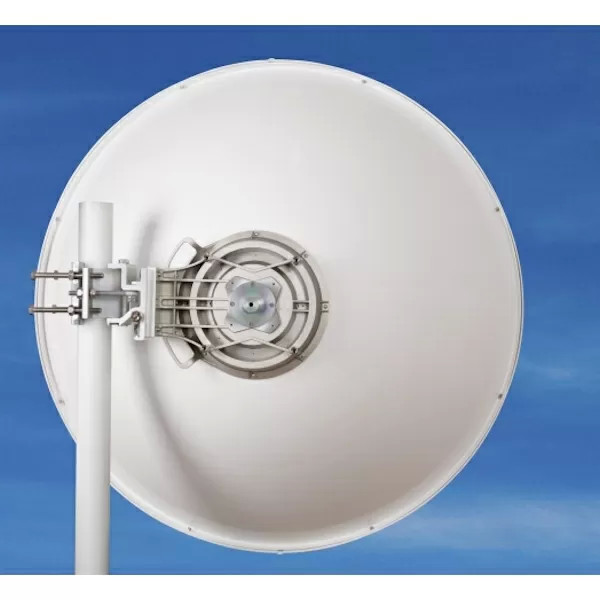

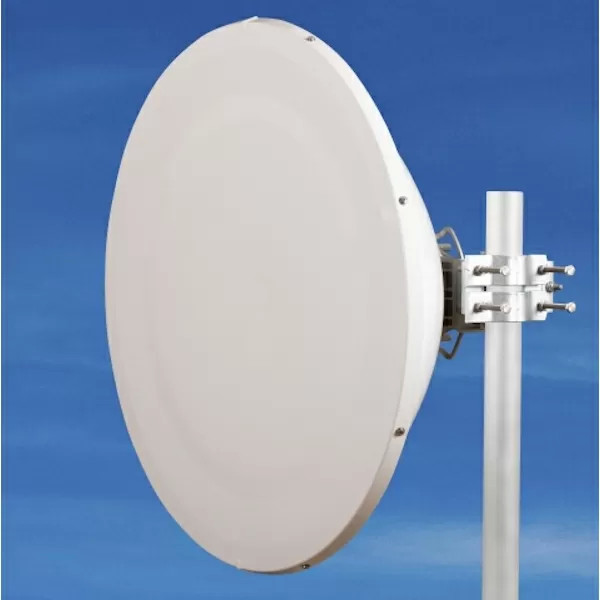

0.6m / 2ft Class 3 Microwave Parabolic Antenna High Gain
0.6m / 2ft Class 3 Microwave Parabolic Antenna High Gain
0.6m / 2ft Class 3 Microwave Parabolic Antenna High Gain
0.6m / 2ft Class 3 Microwave Parabolic Antenna High Gain
Specifications
Brand Name :
Famous
Certification :
CE，ISO9001
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T ， L/C
Packaging Details :
Standard export packaging/customizable packaging
name :
Microwave Parabolic Antenna
Diameter of Mounting Pole :
φ51~φ114 mm
Fine Azimuth Adjustment :
Coarse 360°Fine±15°
Fine Elevation Adjustment :
Coarse±25°Fine±15°
Wind Velocity Operational :
180km/h
Wind Velocity Survival Rating :
250km/h
Ice-load :
25.4 mm
Operational Temperature :
-55~+70℃
Description

0.6m/2ft Class3 Dual-Polarized Antenna

Electrical performance:

Antenna Model

Antenna Size(m/ft)

Frequency (GHz)

Gain(dBi)

3dB BW

(degs)

XPD (dB)

VSWR

F/B radio

(dB)

ISO

Low

Mid

Top

5G30

0.6/2ft

5.0-7.0

30

6

25

1.7

40

30

CMP066WDA

0.6m/2ft

5.925-7.125

29.1

29.9

30.7

5.2

30

1.3

55

35

CMP067WDA

0.6m/2ft

7.125-8.5

30.7

31.5

32.2

4.3

30

1.3

56

35

CMP0610WDA

0.6m/2ft

10.0-11.7

33.6

34.3

35.0

3.0

30

1.3

59

35

CMP0613WDA

0.6m/2ft

12.2-13.25

35.3

35.7

36.1

2.6

30

1.3

60

35

CMP0615DA

0.6m/2ft

14.4-15.35

36.8

37.1

37.4

2.3

30

1.3

62

35

CMP0618DA

0.6m/2ft

17.7-19.7

38.6

39.1

39.5

1.8

30

1.3

64

35

CMP0623DA

0.6m/2ft

21.2-23.6

40.2

40.6

41.1

1.5

30

1.3

65

35

CMP0626DA

0.6m/2ft

24.2-26.5

41.3

41.7

42.1

1.3

30

1.3

67

35

CMP0628DA

0.6m/2ft

27.5-29.5

42.4

42.7

43.0

1.2

30

1.3

68

35

CMP0632DA

0.6m/2ft

31.8-33.4

43.7

43.9

44.1

1.0

30

1.3

69

35

CMP0638DA

0.6m/2ft

37.0-40.0

45.0

45.3

45.7

0.9

30

1.3

70

35

Mechanical performance:

Diameter of Mounting Pole

Φ51~Φ114 mm

Fine Azimuth Adjustment

Coarse 360° Fine ±15°

Fine Elevation Adjustment

Coarse ±25° Fine ±15°

Wind Velocity Operational

180km/h

Wind Velocity Survival Rating

250km/h

Ice-load

25.4 mm

Operational Temperature

-55~ +70℃

1.The low/mid/high gain has≤-0.5dBi tolerance is within the normal range;

2.F/B radio:Denotes highest radiation relative to the main beam,at 180°±40°,across the band.Production antennas do not exceed rated values by more than 2 dB unless stated otherwise;
