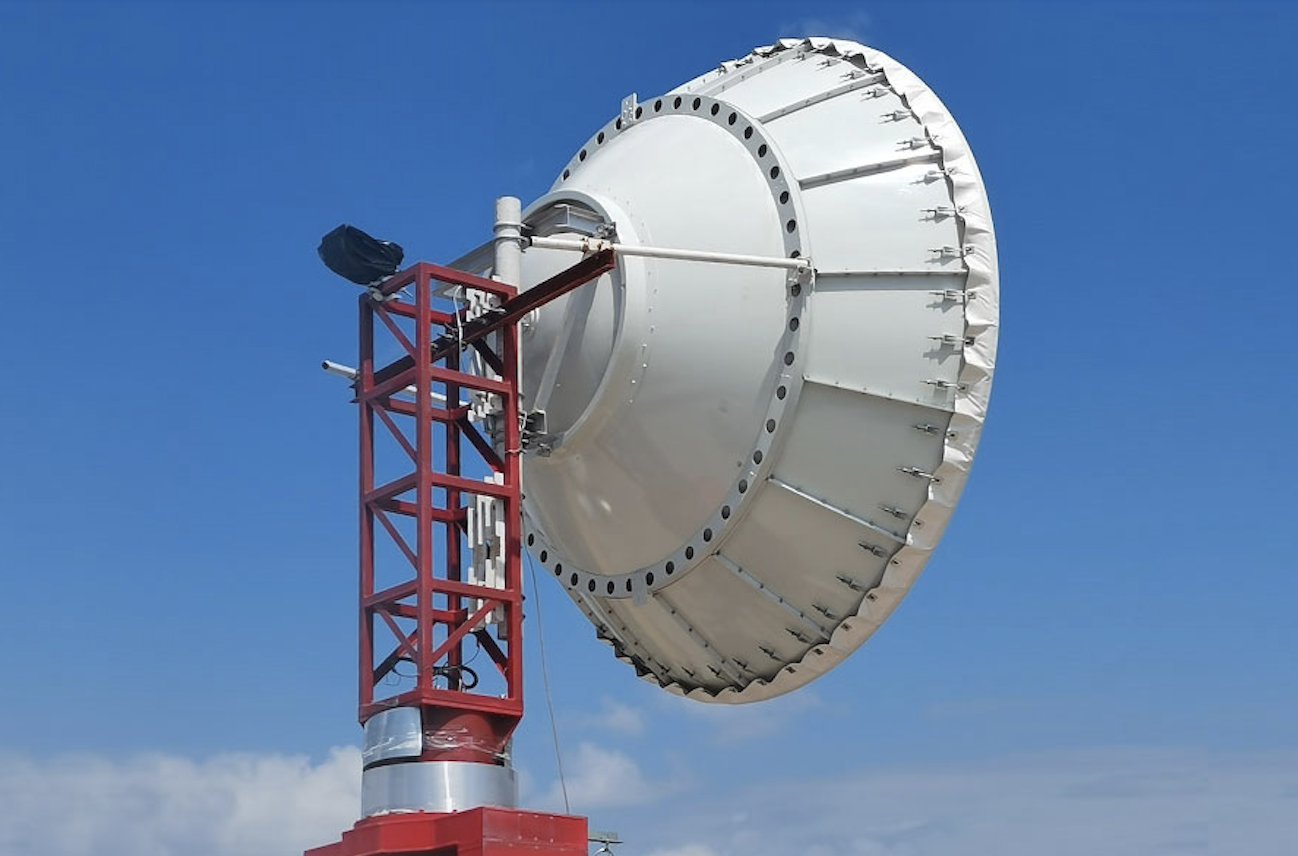

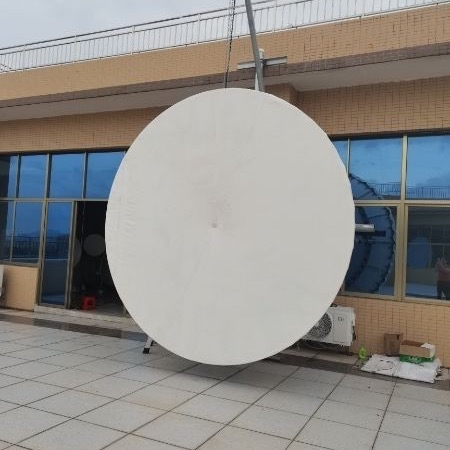

2.4m / 8ft Standard Dual Polarized Microwave Parabolic Antenna
2.4m / 8ft Standard Dual Polarized Microwave Parabolic Antenna
2.4m / 8ft Standard Dual Polarized Microwave Parabolic Antenna
2.4m / 8ft Standard Dual Polarized Microwave Parabolic Antenna
Specifications
Place of Origin :
China
Brand Name :
Famous
Certification :
CE，ISO9001
Model Number :
XPD Antenna
MOQ :
1 SET
Price :
Negotiable
Packaging Details :
Standard export packaging/customizable packaging
Payment Terms :
T/T ， L/C
Diameter of Mounting Pole :
φ114 mm
Fine Azimuth Adjustment :
Coarse 360°Fine±5°
Fine Elevation Adjustment :
Fine±5°
Wind Velocity Operational :
180km/h
Wind Velocity Survival :
200km/h
Operational Temperature :
-55~+70℃
Description

2.4m/8ft Standard Dual-Polarized Microwave Parabolic Antenna

- Our patent split-lobe microwave communication parabolic antenna for large diameter, which can save packaging and transportation costs greatly without any quality compromised；

- High performance ultra high XPD parabolic antennas – Excellent performance for a wide range of applications；

- Simple Assembly – Minimal required assembly simplifies installation on site and guarantees “factory-tested” quality；

Electrical performance:

Antenna Model

Antenna Size(m/ft

Frequency (GHZ

 Gain(dBi)

3dB BW (degs

XPD

(dB)

VSWR

F/B radio dB)

ISO
Low Mid Top
CMP243DA 2.4m/8ft 3.6-4.2 36.1 37.3 38 2.4 30 1.15 62 35
CMP244DA 2.4m/8ft 4.4-5.0 38.0 38.8 39.3 2.0 30 1.15 63 35
CMP246WDA 2.4m/8ft 5.925-7.125 40.8 41.7 42.5 1.4 30 1.1 67 35
CMP247WDA 2.4m/8ft 7.125-8.5 42.5 43.3 44.0 1.1 30 1.1 69 35
CMP2410WDA 2.4m/8ft 10-11.7 45.5 46.1 46.8 0.8 30 1.1 71 35
CMP2413WDA 2.4m/8ft 12.2-13.25 47.5 47.7 47.9 0.7 30 1.1 72 35
CMP2415DA 2.4m/8ft 14.4-15.35 48.6 48.8 49.1 0.6 30 1.1 74 35

Mechanical performance:

Diameter of Mounting Pole φ114 mm
Fine Azimuth Adjustment Coarse 360°Fine±5°
Fine Elevation Adjustment Fine±5°
Wind Velocity Operational 180km/h
Wind Velocity Survival 200km/h
Ice-load 25.4 mm
Operational Temperature -55~+70℃

1.The low/mid/high gain has≤-0.5dBi tolerance is within the normal range;

2.F/Bradio:Denotes highest radiation relative to the main beam,at 180°±40°,across the band.Production antennas do not exceed rated values by more than 2 dB unless stated otherwise;
