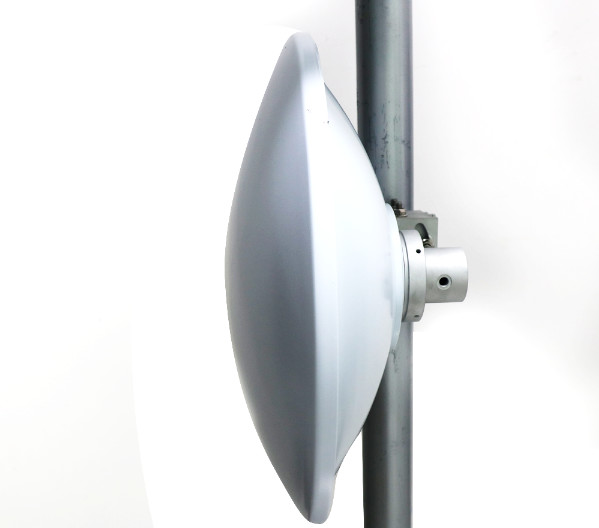

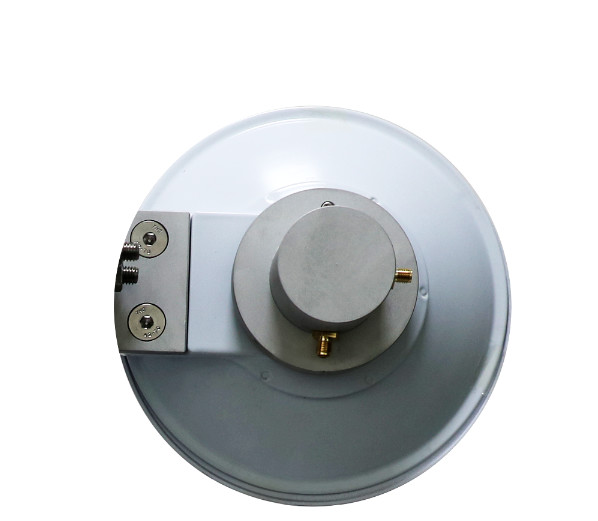

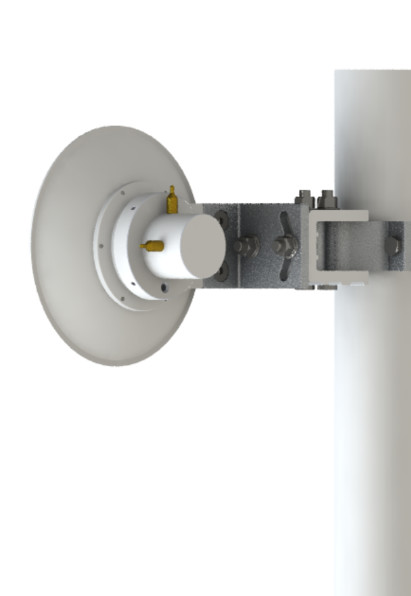

0.2m / 0.7ft Dual Polarized Antenna 40 Ghz
0.2m / 0.7ft Dual Polarized Antenna 40 Ghz
0.2m / 0.7ft Dual Polarized Antenna 40 Ghz
0.2m / 0.7ft Dual Polarized Antenna 40 Ghz
0.2m / 0.7ft Dual Polarized Antenna 40 Ghz
0.2m / 0.7ft Dual Polarized Antenna 40 Ghz
Specifications
Brand Name :
Famous
Model Number :
0.2m/0.7ft Dual-Polarized Antenna
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T ， L/C
Packaging Details :
Standard export packaging/customizable packaging
Certification :
CE，ISO9001
Name :
Microwave Antenna
Diameter of Mounting Pole :
Φ51~Φ114 mm
Fine Azimuth Adjustment :
Coarse 360° Fine ±15°
Fine Elevation Adjustment :
Coarse ±25° Fine ±15°
Wind Velocity Operational :
180km/h
Wind Velocity Survival :
250km/h
Ice-load :
25.4 mm
Operational Temperature :
-55~ +70℃
Description

0.2m/0.7ft Dual-Polarized Antenna

Features:

  • Optimized F/B & side-lobe suppression minimizes interference
  • Quick connect waveguide allows rapid change of polarization and installation
  • Installs in minutes to reduce service calls and installation time
  • Integrated handle / hoisting hook for added safety and convenient installation
  • Heavy-duty bracket with fine elevation and azimuth adjustment beamwidths

Applications:

  • Wireless MIMO LAN systems & IEEE 802.11n applications
  • Point-to-point (PtP) for backhaul or client premise equipment (CPE)
  • High-density deployments requiring frequency reuse to achieve high capacity and data rates
  • Last-mile connection

Electrical performance:

Antenna Model Antenna Size(m/ft) Frequency (GHz) Gain(dBi)

3dB BW

(degs)

 XPD (dB) VSWR

F/B radio

(dB)

 ISO
Low Mid Top
CMP0213DA 0.2m/0.7ft 12.2-13.25 26.2 26.6 26.9 7.3 30 1.3 52 35
CMP0215DA 0.2m/0.7ft 14.4-15.35 27.4 27.8 28.2 6.5 30 1.3 53 35
CMP0218DA 0.2m/0.7ft 17.7-19.7 29.5 29.9 30.3 5.1 30 1.3 56 35
CMP0223DA 0.2m/0.7ft 21.2-23.6 31.0 31.5 32.0 4.3 30 1.3 57 35
CMP0226DA 0.2m/0.7ft 24.2-26.5 32.2 32.6 33.0 3.8 30 1.3 58 35
CMP0228DA 0.2m/0.7ft 27.5-29.5 33.3 33.6 33.9 3.4 30 1.3 59 35
CMP0232DA 0.2m/0.7ft 31.8-33.4 34.6 34.8 35.0 3.0 30 1.3 60 35
CMP0238DA 0.2m/0.7ft 37.0-40.0 35.9 36.2 36.5 2.5 30 1.3 61 35


Mechanical performance:

Diameter of Mounting Pole Φ51~Φ114 mm
Fine Azimuth Adjustment Coarse 360° Fine ±15°
Fine Elevation Adjustment Coarse ±25° Fine ±15°
Wind Velocity Operational 180km/h
Wind Velocity Survival Rating 250km/h
Ice-load 25.4 mm
Operational Temperature -55~ +70℃

0.2m / 0.7ft Dual Polarized Antenna 40 Ghz0.2m / 0.7ft Dual Polarized Antenna 40 Ghz0.2m / 0.7ft Dual Polarized Antenna 40 Ghz
