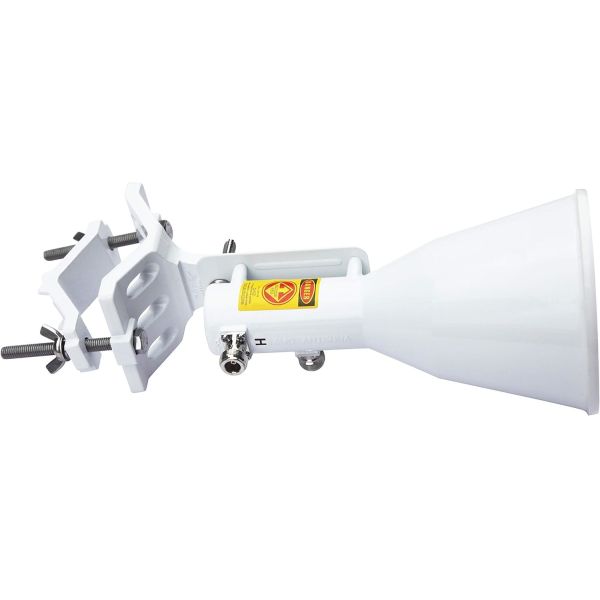

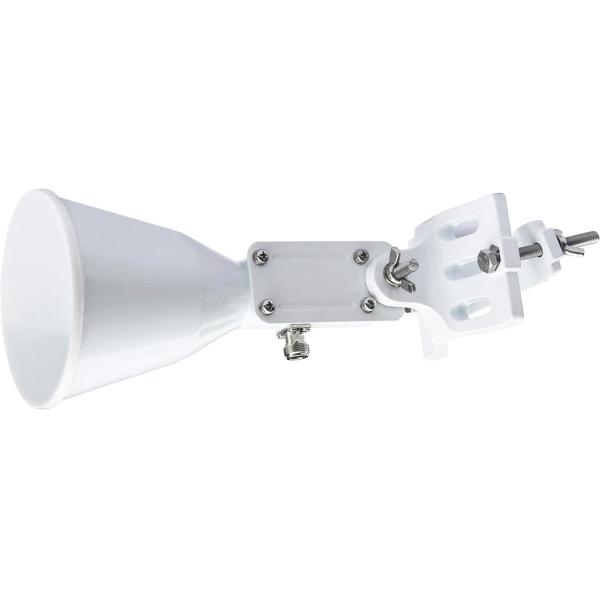

Horn Antenna 5GHz 18dBi Dual Polarization For WISP
Horn Antenna 5GHz 18dBi Dual Polarization For WISP
Horn Antenna 5GHz 18dBi Dual Polarization For WISP
Horn Antenna 5GHz 18dBi Dual Polarization For WISP
Specifications
Brand Name :
Famous
Model Number :
Horn Antenna
Certification :
CE，ISO9001
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T ， L/C
Packaging Details :
Standard export packaging/customizable packaging
Name :
Symmetrical Horn Antenna
Diameter of Mounting Pole :
Φ51~Φ114 mm
Antenna Connection :
Waveguide (special made by Dongguan Famous Precision) or SMA
Net Weight :
2.5kgs/5.5Ib
Material :
UV stabilized PC, aluminum alloy
Wind survivability :
200 km/h
Wind loading :
200 km/h
Mechanical adjustment: :
±25° elevation, ±25° azimuth
Pole compatibility :
Ø40 to 60 mm
Weatherproofing :
IP55
Description

Horn Antenna 5GHz 18dBi Dual Polarization For WISP

  • Aluminum Die Casting Horn and Bracket
  • Noise rejection and isolation band reuse
  • Easy to amount, easy to adjust antenna elevation angle
  • Small size, light weight, less wind load, need less space on Tower
  • Include two pigtail cable assembly, N male to RPSMA

Electrical performance:

Frequency Range (GHz)

 Gain (dBi) Azimuth Beam Width -3dB Elevation Beam Width -3dB Azimuth Beam Width -6dB Elevation Beam Width -6dB Front/Back Ratio(dB) VSWR Polarization
30° 5.0-7.0 18

H21°

V21°

H21°

V21°

H30°

V30°

H30°

V30°

 37 ≤1.8 Dual-Linear
40° 5.0-7.0 16

H27°

V27°

H27°

V27

H40°

V40°

H40°

V40°

 35 ≤1.8 Dual-Linear
50° 5.0-7.0 14

H33°

V33°

H33°

V33°

H50°

V50°

H50°

V50°

 33 ≤1.8 Dual-Linear
60° 5.0-7.0 13

H41°

V41°

H41°

V41°

H60°

V60°

H60°

V60°

 32 ≤1.8 Dual-Linear
70° 5.0-7.0 11

H50°

V50°

H50°

V50°

H70°

V70°

H70°

V70°

 30 ≤1.8 Dual-Linear
80° 5.0-7.0 10

H60°

V60°

H60°

V60°

H80°

V80°

H80°

V80°

 29 ≤1.8 Dual-Linear
90° 5.0-7.0 9

H67°

V67°

H67°

V67°

H90°

V90°

H90°

V90°

 28 ≤1.8 Dual-Linear
Antenna Connection Waveguide (special made by Dongguan Famous Precision) or SMA
Net Weight 2.5kgs/5.5Ib
Material UV stabilized PC, aluminum alloy
Wind survivability 200 km/h
Wind loading 200 km/h
Mounting Mechanical adjustment: ±25° elevation, ±25° azimuth
Pole compatibility: Ø40 to 60 mm
Weatherproofing IP55

Horn Antenna 5GHz 18dBi Dual Polarization For WISPHorn Antenna 5GHz 18dBi Dual Polarization For WISP
