4.9-6.5GHz 18dBI Symmetrical Horn Antenna For Mimosa Radio
4.9-6.5GHz 18dBI Symmetrical Horn Antenna For Mimosa Radio
4.9-6.5GHz 18dBI Symmetrical Horn Antenna For Mimosa Radio
4.9-6.5GHz 18dBI Symmetrical Horn Antenna For Mimosa Radio
4.9-6.5GHz 18dBI Symmetrical Horn Antenna For Mimosa Radio
4.9-6.5GHz 18dBI Symmetrical Horn Antenna For Mimosa Radio
Specifications
Brand Name :
Famous
Model Number :
Horn Antenna
Certification :
CE，ISO9001
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T ， L/C
Packaging Details :
Standard export packaging/customizable packaging
Name :
24dB Horn Antenna
Description

Features

1.Wireless MIMO LAN systems & IEEE 802.11n/ac applications
2. Point-to-multipoint (PtMP) requiring sectorial coverage
3. Supports public safety (4.9 GHz), U-NII-1, 2, 3, and 4 (5.15-5.925 GHz), and up to 6.4GHz for world-wide market
4. Mobile WiMAX Wireless Internet Provider "cell" sites
5.Gap coverage close to the tower
6.High-density deployments requiring frequency reuse to achieve high capacity and data rates
7.Valleys, mountains, mines, or regions with large elevation changes that need uniform coverage

Application

1. High-performance gain and patterns that are stable over a wide bandwidth
2.Interference mitigation with highly suppressed side-lobes and superior front-to-back that allows channel reuse
3. Over 25 dB cross polarization discrimination and port isolation for optimal MIMO performance
4. Ideal for high-density AP deployments with radio co-location due to compact size and highly focused radiation
5. Improved coverage near and far from the tower with equal elevation and azimuth beamwidths
6. Quick-connect waveguide allows polarization to be adjusted and quick change of adapters without tools
7 Direct Connect radio-specific and dual polarized N-type connector adapters available
8.Fine azimuth- and elevation- tilt markings to simplify alignment
9.Mountable on left or right side of the pole without flipping upside down
Model
ANT4965D18P-DP
Frequency range
4.9-6.5GHz
Gain
18dBi
VSWR
<2.0
Polarization
Vertical and Horizontal
Isolation
>25dB
Front to Back Ratio
>23dB
Horizontal Beamwidth
30º
Vertical Beamwidth
30º
Maximum Power
50W
Impedance
50Ω
Lighting protection
DC Ground
Connector
2* N Female
Antenna Size
φ120x215mm
Antenna Weight
1kg
Antenna color
white
Diameter of the Pole
Φ30mm to φ50mm
Mechanical Tilt
± 15°
Operational Temperature
-40°C to +70°C (-32°F to +158°F)

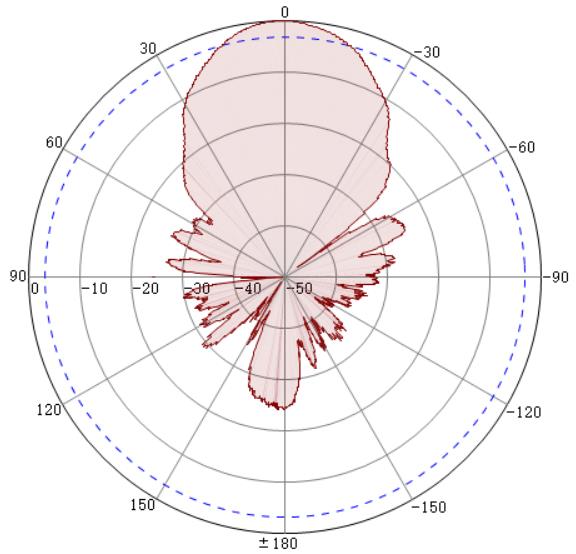

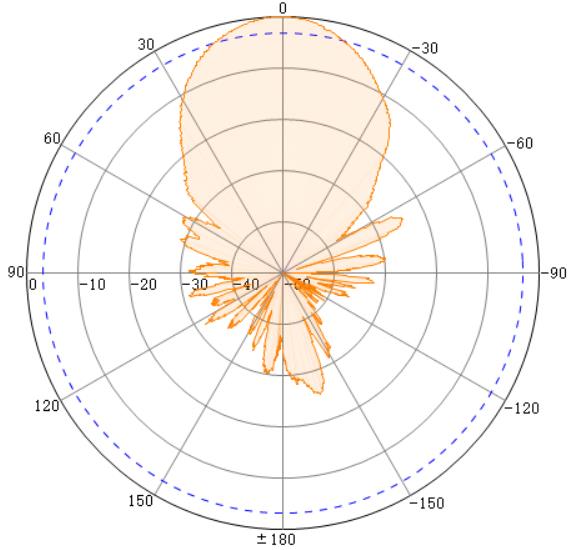

4.9-6.5GHz 18dBI Symmetrical Horn Antenna For Mimosa Radio4.9-6.5GHz 18dBI Symmetrical Horn Antenna For Mimosa Radio
