1.7GHz-6GHz Dual Polarization Horn Antenna Asymmetrical
1.7GHz-6GHz Dual Polarization Horn Antenna Asymmetrical
Specifications
Brand Name :
Famous
Model Number :
Horn Antenna
Certification :
CE，ISO9001
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T ， L/C
Packaging Details :
Standard export packaging/customizable packaging
Name :
Asymmetrical Horn Antenna
Material :
aluminum (integrated processing)
Frequency :
1.7-6GHz
Standing wave :
≤2
Cross-polarization isolation :
≥25dB
Interface :
SMA-K
Maximum power :
50W
Size :
135mm×112mm×112mm
Description

Port 1:

FrequencyMHz Gain value E-plane beamwidth H-plane beamwidth Front to rear ratio dB
1700 6.98 76.4 84.2 11.9
2000 8.15 68.2 67.3 13.3
2100 8.31 66.8 62.7 14.1
2500 9.24 65.8 56.9 18.5
2700 9.48 62.2 52.7 19.1
3000 10.54 57.1 45.6 21.3
3500 11.50 50.5 37.2 18.2
4000 10.22 52.8 33.7 17.4
4500 11.10 48.2 36.9 20.4
5000 11.52 48.7 35.3 21.3
5500 12.42 39.8 31.7 19.4
5800 12.60 38.8 36.3 19.2
6000 13.09 37.3 34.2 21.0

Port 2:

FrequencyMHz Gain value E-plane beamwidth H-plane beamwidth Front to rear ratio dB
1700 6.93 76.5 84.3 11.9
2000 8.20 68.0 67.2 13.3
2100 8.34 66.7 62.7 14.1
2500 9.28 65.6 56.8 18.6
2700 9.48 62.3 52.8 19.1
3000 10.50 57.0 45.6 18.0
3500 11.5 50.6 37.3 18.1
4000 10.2 53.1 33.9 17.4
4500 11.1 48.7 37.3 20.0
5000 11.5 49.3 35.8 20.5
5500 12.4 40.1 31.9 19.5
5800 12.7 38.1 35.2 19.3
6000 13.2 36.7 33.6 21.0

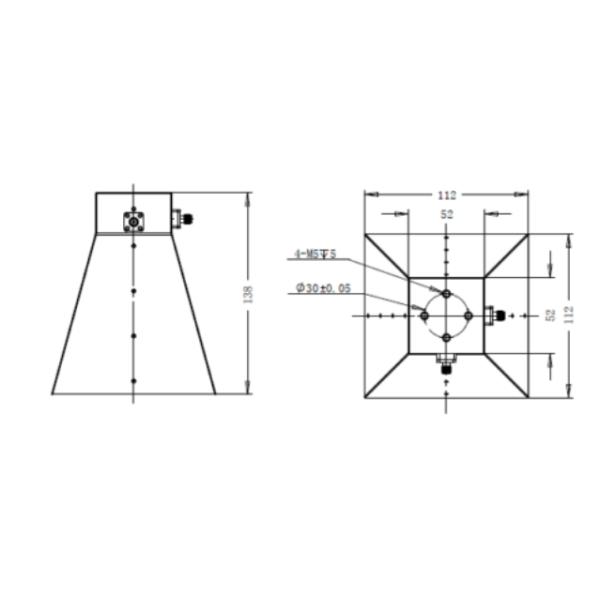

Structural dimensions:

1.7GHz-6GHz Dual Polarization Horn Antenna Asymmetrical
