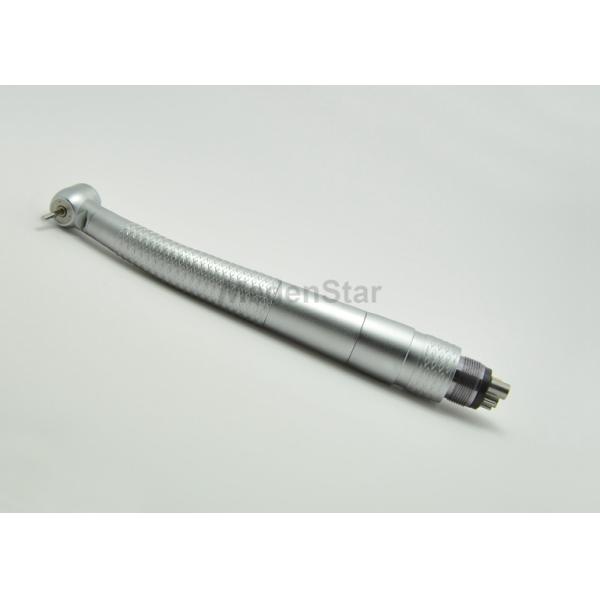

Stainless Bearing NSK Fiber Optic Handpiece Triple Water Spray M4 / B2 Hole

Description:

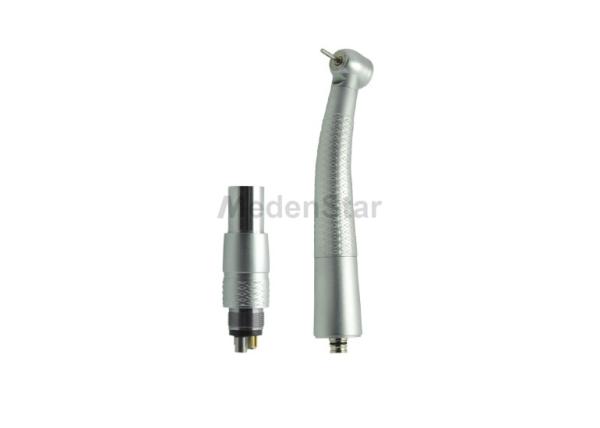

6-Hole Fiber Optic Handpiece With Quick Couplin

Chuck Type:Push Button, Compatible with NSK Machlite/Phatelus

Bearing:Stainless bearing

Spray:Triple water spray

Working Air Pressure:0.20-0.25MPa(0.22MPa prefrred)

Rotation Speed:350,000-400,000R.P.M(Standard Head);

280,000-320,000R.P.M(Torque Head);

Bur Applicable:Φ1.595-1.600mm

Features:
1. Mini head, strong torque;
2. Double cogwheels and airways cartridge
3. Triple spray with anti retraction;
4. Fashion design
5. Four points back cover

Product Parts:

Consists of handpiece head, handle, caudal thread, cartridge.
Working Conditions:
1. Air pressure 0.25~0.30mpa,must be filtrated.
2. Use high speed dental bur with shaft diameter Φ1.59~1.60mm×21-23mm and roghtness less than 0.8um.
3. The amount of handpieces spray or water spray should be able to adjusted.
4. Hard glass fiber,can be repeatedly sterilized in high temperautre and pressure.
Product Scope:
Only used for drilling, molar of stomatology clamping high-speed dental burs.

HPA012(N) Handpiece we Provide Two Kind Of Head For Choice

Environmet-friendly fiber opitic handpiece tube:
If the dental unit don’t have the optical fiber system,please insert our optical fiber tubing and electricity borad in the dental ubit,
then it can use our optical fiber handpiece and inclube the high speed handpiece which compliance with international standards.

Electricity board:
1. Power in:12-24VFIBER OPTIC HANDPIECE
2. Power out:2.5-3.5V(adjustable)FIBER OPTIC HANDPIECE
3. Output delay:0-12s(adjustable)
4. Linkage air pressure:P＞0.2Mpa
5. Control ways:2 ways

Maintenance:

1. Considering safety first, please be careful to use it with full attention.
2. Be limited to dentists who held the dental treatment qualifications.
3. Strictly forbid decomposition and reconstruction by unauthorized.
4. Please run point testing on outside of patients oral beforehand. If feel anomalies, please stop using immediately and contact with our after-sales center.
5. When appears abnormal during using, please stop it immediately and contact with our after-sales center.
6. It will cause a high noise using a center-vibration or bended bur and a handpiece of which bearing has been worn, A long time in this state will be harm to people’s hearing. Forbid using a vibration or bended bur, if appear high noise, please replace the shaft core early
