Low Noise High Torque Fiber Optic Dental Handpiece With NSK Machlite / Phatelus

Description:

6-Hole Fiber Optic Handpiece With Quick Couplin

Chuck Type:Push Button, Compatible with NSK Machlite/Phatelus

Bearing:Stainless bearing

Spray:Triple water spray

Working Air Pressure:0.20-0.25MPa(0.22MPa prefrred)

Rotation Speed:350,000-400,000R.P.M(Standard Head);

280,000-320,000R.P.M(Torque Head);

Bur Applicable:Φ1.595-1.600mm

Features:
Low noise, large torque, vibration free, heating free and high illumination.
Push button, Triple water spray, LED handpiece integrate E-generator.
4-Hole Push Button system
Back siphonage prevention sanitation handpiece
Professional LED light source, superior brightness, longevity 1000 hours.

Unique electric generator, just a little air can generate sufficient power.

- Chuck: Push button
- Sterilization by autoclave at 135℃

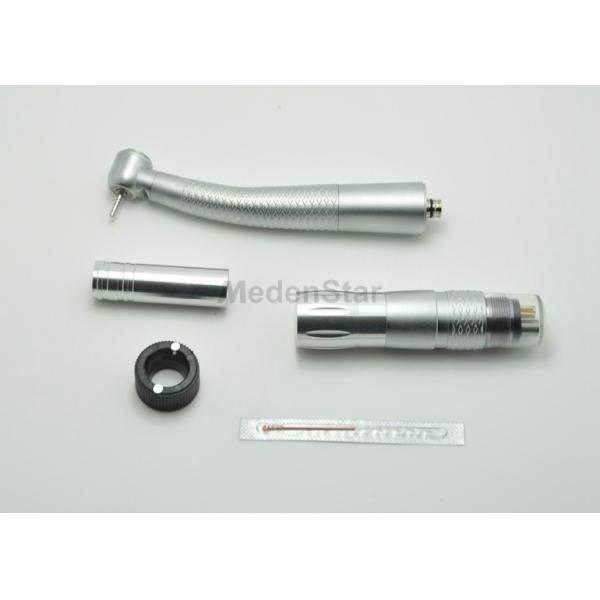

Product Parts:

Consists of handpiece head, handle, caudal thread, cartridge.
Working Conditions:
1. Air pressure 0.25~0.30mpa,must be filtrated.
2. Use high speed dental bur with shaft diameter Φ1.59~1.60mm×21-23mm and roghtness less than 0.8um.
3. The amount of handpieces spray or water spray should be able to adjusted.
4. Hard glass fiber,can be repeatedly sterilized in high temperautre and pressure.
Product Scope:
Only used for drilling, molar of stomatology clamping high-speed dental burs.

HPA012(N) Handpiece we Provide Two Kind Of Head For Choice

Environmet-friendly fiber opitic handpiece tube:
If the dental unit don’t have the optical fiber system,please insert our optical fiber tubing and electricity borad in the dental ubit,
then it can use our optical fiber handpiece and inclube the high speed handpiece which compliance with international standards.

Electricity board:
1. Power in:12-24VFIBER OPTIC HANDPIECE
2. Power out:2.5-3.5V(adjustable)FIBER OPTIC HANDPIECE
3. Output delay:0-12s(adjustable)
4. Linkage air pressure:P＞0.2Mpa
5. Control ways:2 ways

FAQ
1. Q: What is your payment term?
A: We usually use 50% by T/T as deposit, balance by T/T before delivery.

(T/T means Telegraph Transfer)

2. Q: How long is the delivery time?
A: About 7~10 working days after receiving the down payment.

3. Q: Minimum Order Quantity
A: One unit is ok!

4. Q: Are you manufacturer or trading company?
A: We are manufacturer, we have our own factory with more than ten years experience on dental unit industry.

5. Q: What documents have you got for the dental chair unit?
A: We have got certificate of quality management system ISO 13485 and CE certificate authorized by TUV from Germany. As well as the free sales certificate authorized by the food and drug administration.

6. Q: If the voltage can be 110V, 60Hz?
A: Sure, we can make it..
