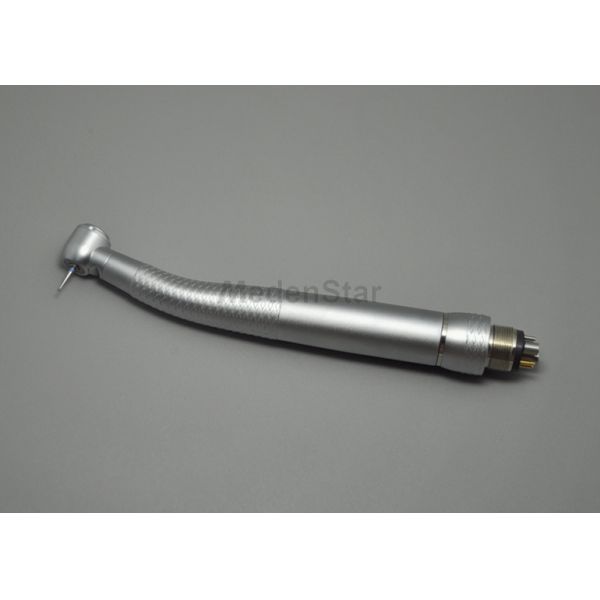

High Performance 6 Hole Fiber Optic Dental Handpiece Push Button Chuck Type

KAVO Fiber Optic Handpiece

Description:

6-Hole Fiber Optic Handpiece With Quick Couplin

Chuck Type:Push Button, Compatible with KAVO Multifelx Lux

Bearing:Stainless bearing

Spray:Triple water spray

Working Air Pressure:0.20-0.25MPa(0.22MPa prefrred)

Rotation Speed:350,000-400,000R.P.M(Standard Head);

280,000-320,000R.P.M(Torque Head);

Bur Applicable:Φ1.595-1.600mm

Product Parts:

Consists of handpiece head, handle, caudal thread, cartridge.
Working Conditions:
1. Air pressure 0.25~0.30mpa,must be filtrated.
2. Use high speed dental bur with shaft diameter Φ1.59~1.60mm×21-23mm and roghtness less than 0.8um.
3. The amount of handpieces spray or water spray should be able to adjusted.
4. Hard glass fiber,can be repeatedly sterilized in high temperautre and pressure.

Product Scope:
Only used for drilling, molar of stomatology clamping high-speed dental burs.

HPA012(K) Handpiece we Provide Two Kind Of Head For Choice

Features:
Low noise, large torque, vibration free, heating free and high illumination.
Push button, Triple water spray, LED handpiece integrate E-generator.
4-Hole Push Button system
Back siphonage prevention sanitation handpiece
Professional LED light source, superior brightness, longevity 1000 hours.

Unique electric generator, just a little air can generate sufficient power.

-Chuck: Push button
-Sterilization by autoclave at 135℃

Warranty:
Long Life-Span
One Year Manufacturer Warranty

Environmet-friendly fiber opitic handpiece tube:
If the dental unit don’t have the optical fiber system,please insert our optical fiber tubing and electricity borad in the dental ubit,
then it can use our optical fiber handpiece and inclube the high speed handpiece which compliance with international standards.

Electricity board:
1. Power in:12-24VFIBER OPTIC HANDPIECE
2. Power out:2.5-3.5V(adjustable)FIBER OPTIC HANDPIECE
3. Output delay:0-12s(adjustable)
4. Linkage air pressure:P＞0.2Mpa
5. Control ways:2 ways
