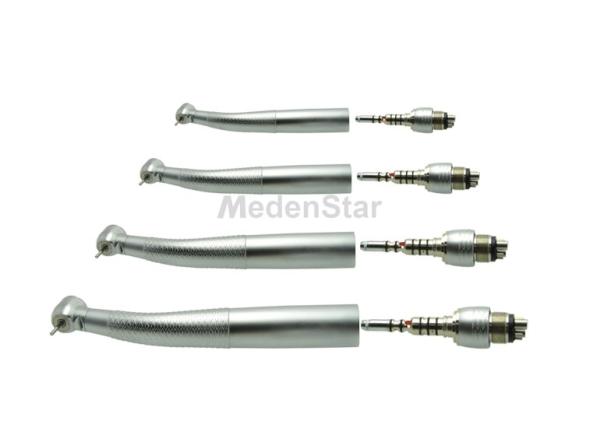

Six Holes Fiber Optic Impact Air Surgical Handpiece KAVO Dental Turbine

KAVO Fiber Optic Handpiece

Description:

6-Hole Fiber Optic Handpiece With Quick Couplin

Chuck Type:Push Button, Compatible with KAVO Multifelx Lux

Bearing:Stainless bearing

Spray:Triple water spray

Working Air Pressure:0.20-0.25MPa(0.22MPa prefrred)

Rotation Speed:350,000-400,000R.P.M(Standard Head);

280,000-320,000R.P.M(Torque Head);

Bur Applicable:Φ1.595-1.600mm

Features:

1. It has unique appearance design and fluent outline.
2. Smooth as silk, it has excellent texture.
3. With people-friendly design, easy for operation.
4. With best quality cartridge, easier for cleaning.
5. With high-speed turbine rotation, it has better performances.
6. Chucking power of chucking needle is 20N-45N.
7. It is noise-free and stable Fiber Optic High Speed Dental Handpiece .

Product Parts:

Consists of handpiece head, handle, caudal thread, cartridge.
Working Conditions:
1. Air pressure 0.25~0.30mpa,must be filtrated.
2. Use high speed dental bur with shaft diameter Φ1.59~1.60mm×21-23mm and roghtness less than 0.8um.
3. The amount of handpieces spray or water spray should be able to adjusted.
4. Hard glass fiber,can be repeatedly sterilized in high temperautre and pressure.
Product Scope:
Only used for drilling, molar of stomatology clamping high-speed dental burs.

HPA012(N) Handpiece we Provide Two Kind Of Head For Choice

Features:

1. Clamping force of handpiece is:20-45N
2. Noise not exceed 70dB
3. At 25-30 atmosphele pressure,350,000-400,000R.P.M(Standard Head);280,000-320,000R.P.M(Torque Head);
4. Optical handpiece ,3 point water spray,double air tracks, quick coupling, light guide vitreous, illumination≥25000LUX. Voltage is 3.3V±0.1V, LED light.

Environmet-friendly fiber opitic handpiece tube:
If the dental unit don’t have the optical fiber system,please insert our optical fiber tubing and electricity borad in the dental ubit,
then it can use our optical fiber handpiece and inclube the high speed handpiece which compliance with international standards.
