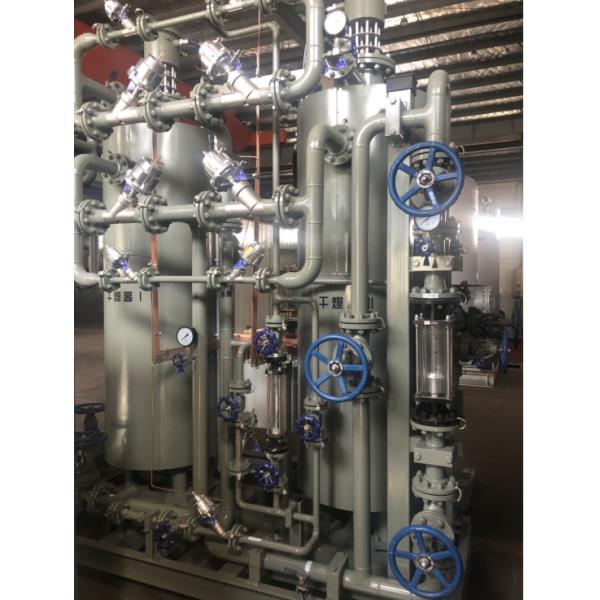

99.999%-99.9995% Nitrogen Hydrogenation Purifier Device 500 Scfm
99.999%-99.9995% Nitrogen Hydrogenation Purifier Device 500 Scfm
Specifications
Brand Name :
SUMAIRUI GAS
Model Number :
OSP-H
Certification :
ISO9001, CE, BV, SGS, TUV, ASME, GOST,NB,NR ETC
Place of Origin :
SUZHOU, CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100 sets/months
Delivery Time :
30-45 days
Packaging Details :
Exporting wooden case /Film packing
Flow :
100-10000Nm3/hr
Purity :
99.999-99.9999%
Ppm :
＜3
Consume :
Hydrogen and water
Raw Nitrogen :
＞99%
Hydrogen required :
＞99.5%
Cooling type :
Water
Application :
Steel, Cooper, Galvanization line,Stainless steel production line, electron filed
Working duration :
24 hrs non-stop
Operation mode :
Fully automatic
Control type :
Remote start and stop
Data Upload :
Modbus 485, Ethernet,Profibus, DP，Hart,TCP etc
Temperature control :
Schneider
Heating rod :
Included
Heating temperature :
150℃
High purity N2 :
99.9995%
Towers :
Warming type
Color :
Available customized
Weight :
As per actual size
Working mode :
Fully automatic
Control System :
Advanced
Durability :
High
Flow Rate :
High
Installation :
Easy
Maintenance :
Easy
Noise Level :
Low
Operating Temperature :
Wide Range
Power Consumption :
Low
Pressure Drop :
Low
Pressure Range :
Wide Range
Product Name :
Hydrogenation Purifier
Purification Capacity :
High
Purification Efficiency :
High
Safety System :
Advanced
Description

High Quality Hydrogenation Purifier 500 scfm with Automatic Interlocking & Emptying for 99.999%-99.9995% Purity

Technical indicators:

1.Deoxygenation and dehydrogenation catalysts are highly efficient, durable, long life service and good stability.

2.Deoxidization can be carried out at room temperature without heating, which greatly saves energy consumption.

3.Nitrogenous fertilizer has a wide range of requirements, and nitrogen can be selected within 99.999%.

4.The hydrogenation purifying unit is equipped with an automatic nitrogen-hydrogen mixing device according to the working conditions. It can automatically calculate and control the amount of hydrogen added according to the inlet amount and purity of nitrogen gas. It is fully automatic controlled. The equipment is sensitive to reaction, has small lag and has high adjusting precision.

5.The contact part of electric and hydrogen by electrical explosion, safe and reliable.

6.The mixing of nitrogen and hydrogen is accomplished in a static mixer with good mixing effect and less hydrogen consumption.

7.Equipped with automatic interlocking and emptying, multiple fault alarm.
