Carbon Molecule Sieve 0.6MPa PSA N2 Generator With Compressor
Carbon Molecule Sieve 0.6MPa PSA N2 Generator With Compressor
Carbon Molecule Sieve 0.6MPa PSA N2 Generator With Compressor
Carbon Molecule Sieve 0.6MPa PSA N2 Generator With Compressor
Specifications
Brand Name :
SFX
Model Number :
SFXG
Certification :
23425244
Place of Origin :
Su Zhou, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
FOB Shanghai; T/T,30% payment in advance,balance before shipment;
Supply Ability :
1000 sets / year;
Delivery Time :
30-40 days after contract comes into effect
Packaging Details :
Wooden case packing,Seaworthy packing
Name :
Nitrogen Generator
Type :
Carbon Molecule Sieve, Quality Compressor
Nitrogen Capacity :
1-4000Nm3 / Hr
Brand :
SFX
Color :
Customized Color
Model :
SFXG
Certificate :
ISO9001:2015; CE
Description

Nitrogen Maker, Nitrogen Generator Unit With Quality Compressor, Carbon Molecule Sieve

Product Description:

1) Main parts of the system:

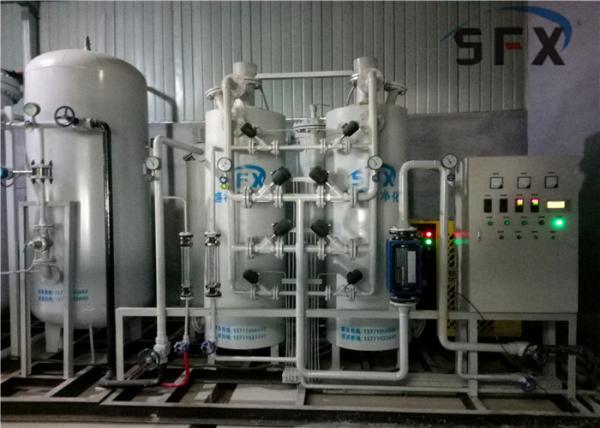

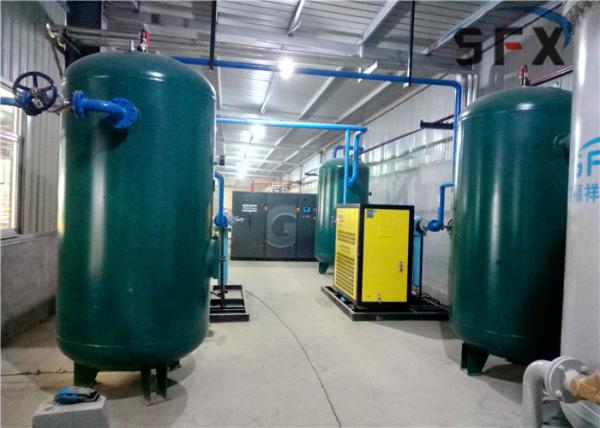

· The system consists of screw air compressor, buffer tank, refrigerator dryer, pre-filter units, activated carbon filter, PSA towers, buffer tanks and its electrical control cabinet. Each unit is connected by pipes and work as integrity system.

· Select high quality compressor with famous brand.

· The unit can automatically running, no need extra labour force.

2) High Quality:

· Company has the culture of quality first.

· Adopting decent quality spare parts always. For instance, we choose high quality valve and its service life reach up to one million times.

· Quality inspection activities is carried out in the whole manufacture process.

· The equipment is convenient for installing and operating.

3) Nitrogen Purity:

· The purity of N2 can reach 95% - 99.9% with large volume.

· The units is suitable used in petroleum, natural gas and coal mining industry, where require high N2 capacity.

Air is composed of 78% Nitrogen and 21% Oxygen. PSA Nitrogen generation technology works on the principle of air separation by adsorbing Oxygen for getting Nitrogen.
Pressure Swing Adsorption (PSA Nitrogen) process comprises of 2 tanks filled with Carbon Molecular Sieves (CMS). (see image below).
Step 1: Adsorption
Pre filtered compressed air is passed through one CMS filled tank. Oxygen is adsorbed by the CMS and nitrogen comes out as the product gas. After some time of operation, the CMS inside this tank gets saturated with Oxygen and can no longer adsorb.
Step 2: Desorption
When the CMS is saturation in the one tank, the unit automatically switches nitrogen generation to the other tank. The waste gas (oxygen, carbon dioxide, etc.) is discharged into atmosphere.
Step 3: Renew
In order to regenerate the CMS in the tank, part of the Nitrogen produced by the other tank is purged into this tank. This makes quick CMS regeneration and make it available for produce nitrogen in the next cycle.
The above process cycle ensures continous supply of the Nitrogen.

Carbon Molecule Sieve 0.6MPa PSA N2 Generator With Compressor

Technical Indicators:

N2 Capacity 1-4000Nm3 / Hr
N2 Purity 95%-99.99%
Compressed Air Pressure ≤ 0.7MPa
Dew Point 40 ℃ ~ - 60 ℃
N2 Outlet Pressure ≤0.6MPa
Quality Standard:
Applying ISO9001 quality management standard to control the manufactuer process. The products conform with the EU standard.

Applications:
- All kinds of metal heat treatment industry, for instance, copper, carbon steel strip, carbon steel wire etc.
- Traditional Chinese Medicine Industry; Food packaging (herbs, fresh pasta, ready meals, sandwiches,etc. ..)
- Fruit and vegetable storage and packing material;
- Steel processing industry;
- Medical industry and Pharmaceutical Industry;Chemical fertilizer industry;
- Aerospace Technology: rocket fuel booster, launch pad ventilation and safety protection gas, astronaut control gas, space simulation room, aircraft fuel pipeline cleaning gas, etc
PSA Nitrogen Generator System is a reliable technology, the equipment is widely used in food packing, food storing, electric and electronic industry, petro-gas & oil field, chemicals and petro-chemicals, coal-mine, power metallurgy, pharmacy, SMT, fire-resistance, lab, air diving, and so on.

Carbon Molecule Sieve 0.6MPa PSA N2 Generator With Compressor
