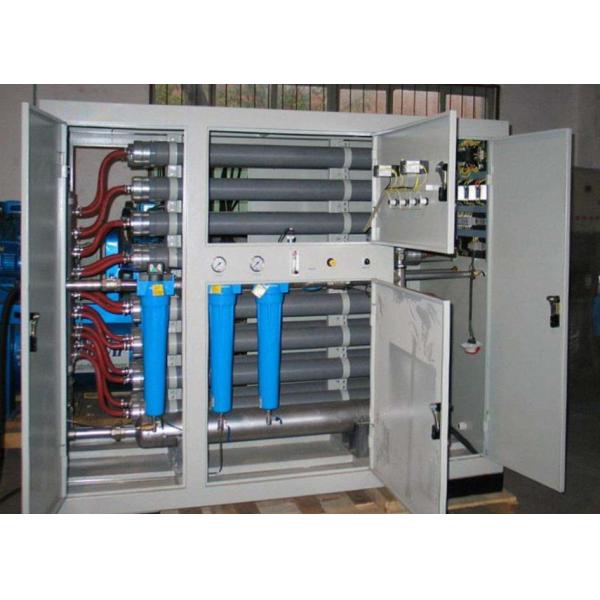

1200M3/H Adjustable Membrane Nitrogen Generator For 99.5% N2 Making
1200M3/H Adjustable Membrane Nitrogen Generator For 99.5% N2 Making
Specifications
Brand Name :
SFX
Model Number :
SFXG295-1200
Certification :
23425244
Place of Origin :
Su Zhou, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
FOB Shanghai; T/T,30% payment in advance,balance before shipment;
Supply Ability :
1000 sets / year;
Delivery Time :
30-40 days after contract comes into effect
Packaging Details :
Wooden case packing,Seaworthy packing
Name :
Nitrogen Generator
Type :
Carbon Molecule Seive,Membrane
Nitrogen Capacity :
1~3000Nm3/Hr
Brand :
SFX
Color :
Customized Color
Model :
SFXG295-1200
Certificate :
ISO9001:2015; CE
Description

1200m3/h With Purity 99.5% Membrane Nitrogen Generator

Product Description:

Polymer membrane material is the core material of this technology. When pressure is applied, nitrogen can pass quickly, while another gas is difficult to pass through the membrane.Membrane materials is a kind of hollow fibers with high surface area to bring the high processing rates for high bolometric gas.

The membrane has the characterisitics of selective permeability.We use its selective nature of passing through the gas to separate the gas.

The rate of permeation of each gas go through the polymeric membranes is determined by its solubility, and the rate of diffusion through the molecular free volume in the membrane material. The high solubility gases in the nitrogen membranes, and gases that are small in molecular size, permeate faster than larger, less soluble gases.

Fast Gases and Slow Gases

"Fast" gases permeate through the nitrogen membrane wall more readily than "slow" gases, thus separating the original gas mixture into two streams. The purity of the desired streams can be adjusted by changing the operating conditions.

1200M3/H Adjustable Membrane Nitrogen Generator For 99.5% N2 Making

The ability of a nitrogen membranes to separate two gases is determined by the ratio of permeabilities of the two gases. The higher the selectivity, the more efficient the separation and less energy is needed.

Technical Indicators:

N2 Capacity 1200Nm3 / Hr
N2 Purity 95% - 99.5%
Compressed Air Pressure ≤ 1.3MPa
Dew Point 40 ℃ ~ - 60 ℃
N2 Outlet Pressure ≤ 1.0MPa
Quality Standard:
Applying ISO9001 quality management standard to control the manufactuer process. The products conform with the EU standard.

Applications:
- Food packaging (herbs, fresh pasta, ready meals, sandwiches,etc. ..)
- Bottling wine, water, vinegar, beverage;
- Fruit and vegetable storage and packing material;
- Steel processing industry;
- Medical industry;
- Chemistry;

1200M3/H Adjustable Membrane Nitrogen Generator For 99.5% N2 Making

After Sales Service Commitment

Free warranty for the equipments during the promised period.

1. The main machine,1 year warranty.
2. Lifelong maintance service in a timely manner, the responding time is less than 8 hours.

3.Provide 24-hour hotline service.
4.Return visit every six months.
5. Supply accessories in a timely manner, the delivery time is generally 1-7 days.
