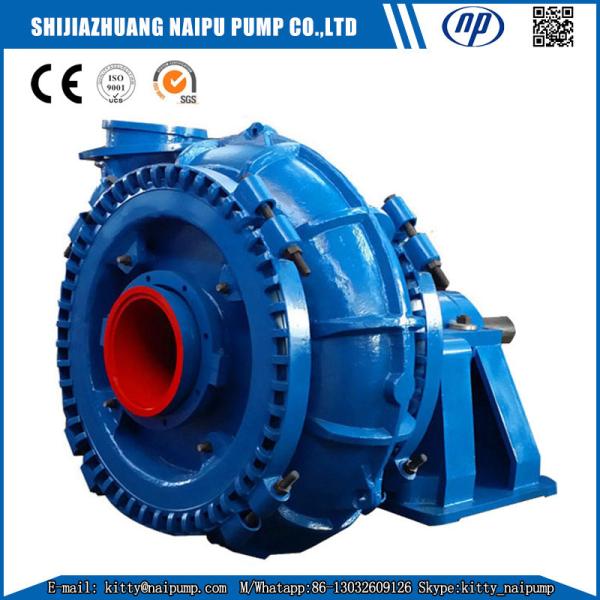

Abrasive Resisitant Diesel Engine 300ZJS (12Inch) Sand Gravel Pump
Abrasive Resisitant Diesel Engine 300ZJS (12Inch) Sand Gravel Pump
Specifications
Place of Origin :
China
Brand Name :
naipu
Certification :
ISO , CE , SGS
Model Number :
300ZJS (14/12)
MOQ :
1 set
Price :
USD 19000
Packaging Details :
Wooden case
Delivery Time :
within 15 days after received the deposit
Payment Terms :
TT
Supply Ability :
1000 Set per month
Material :
High Chrome Alloy
Inlet size :
14inch
Discharge Size :
12 inch
Capacity :
522-3168 m3/h
Head :
9.5-66m
Drive :
Diesel or Motor
Pump Weight :
5400kg
OEM :
accept
Factory or not :
30 years factory
Located :
ShiJiaZhuang , Hebei
Description

Diesel Engine Sand Dredging Pump

Contact person :kittyliu

whatapp /Mobile:86-13032609126

Skype:kitty_naipump

QQ:517563001

Email:kitty at naipump.com

Description:

Abrasive Resisitant Diesel Engine 300ZJS (12Inch) Sand Gravel Pump

Feature:

They are suitable for delivering slurries in Mining, explosive-sludge in metal melting,

dredging in dredger and course of rivers and other fields.

1. Construction of this pump is of single casing connected by means of clamp bands and wide wet passage.

2. The wet-parts are made of Ni-hard and high chromium abrasion-resistance alloys.

3.The discharge direction of pump can be oriented in any direction of 360°.

4. This type of pump possesses the advantages of easy installation and operation, goodperformance of NPSH and Abrasion-resistance

Typical Applications---

  • Slag Granulation

  • Suction Hopper Dredging

  • Dredging

  • Barge Loading

  • Sand Reclamation

  • Sugar Beet

Performance Parameters:

NP-G Gravel Sand Slurry Pump PERFORMANCE PARAMETERS
Model Flow(m3/h) Head(m) Speed(r/min) Efficiency(%) NPSHr/m Max permissible particle size/mm
6X4D-NP-G 187-36 7-51 1400-600 30-58 1.5-3.7 82
8X6E-NP-G 576-133 10-48 1400-800 60-54 1.2-4.2 127
10X8F-NP-G 930-216 11-44 940-500 65-34 3-7 178
12X10G-NP-G 1512-360 11-58 850-400 70-50 1.5-6 220
14X12G-NP-G 3168-522 9.5-66 700-300 68-60 2-8.5 241
16X14TU-NP-G 3024-900 14-45 500-300 70-50 3.5-6.5 254
10X8F-NP-GH 1091-324 19.2-56.5 800-500 72-60 1.5-5 180
12X10G-NP-GH 2232-612 28-77 700-450 73-60 1.5-8 210
16X14TU-NP-GH 3450-1000 72-25 500-300 78-65 2-8 160
18X16TU-NP-G 3600-1050 42-12 250-450 60-72 2-8 254
18X16TU-NP-GH 4300-1350 70-18 250-500 60-70 2.5-8 254

Construction drawing:

Abrasive Resisitant Diesel Engine 300ZJS (12Inch) Sand Gravel Pump

Materials of Construction

VOLUTE

IMPELLERS

BASE

EXPELLER

EXPELLER RING

SHAFT SLEEVE

SEALS

Standard

High Chrome Alloy

High Chrome Alloy

Cast Iron

Chrome Alloy
or
SG Iron

Chrome Alloy
or
SG Iron

SG Iron

Natural Rubber

Options

SG Iron

SG Iron

Mild Steel
Fabricated

SG Iron

SG Iron

EN56C
Ferralium
Hasteloy C
Ceramic
Stellite
Chrome Oxide

Nordel
Neoprene
Viton
Butyl
EPDM

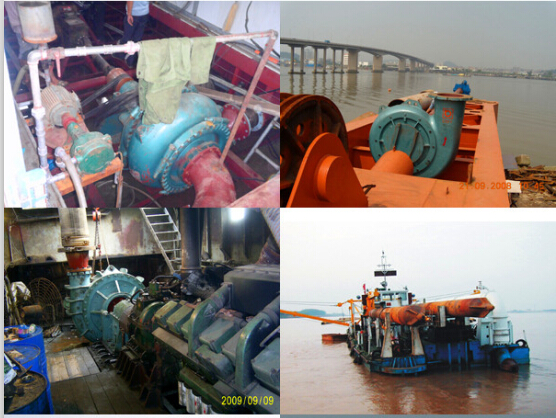

Sand pump working site

Abrasive Resisitant Diesel Engine 300ZJS (12Inch) Sand Gravel Pump

Our Service:

1. Quick Reply. All Message or email will get reply within 8 hours

2. We can help to select the suitablepump if you can not sure which model pump suitable for you

3.We have a group of high quality technicians with rich experience who can solve everything during the whole process.

4. Perfect after -sales . We will be responsible for the whole life period

5. OEM order.Many material are available ,like High chrome, rubber , stainless steel and etc.,
