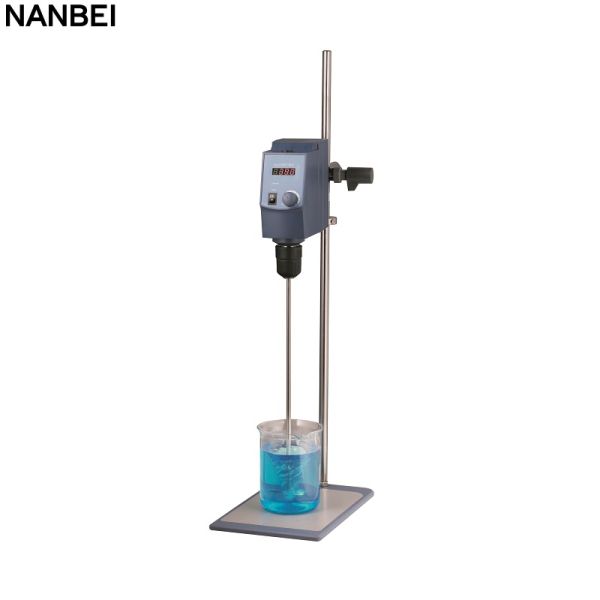

LCD Overhead Electric Magnetic Stirrer 50 to 2200rpm
LCD Overhead Electric Magnetic Stirrer 50 to 2200rpm
Specifications
Brand Name :
NANBEI
Model Number :
B20-S/NB40-S
Certification :
CE,ISO,SGS
Place of Origin :
Zhengzhou
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 SET PER MONTH
Delivery Time :
7 work days
Packaging Details :
Wooden case
Description

Laboratory LCD Overhead Magnetic Electric Stirrer Instrument

Key Specifications/Special Features:

Main functions: Stirring, homogenizing, mixing, dispersing, mostly used as a mixture material to prevent material precipitation.
The main application areas involved are: laboratories in higher education institutions, scientific research institutes, water plants, sewage treatment plants, water supply/drainage, environmental protection, petroleum, chemical, metallurgy, light industry, pharmacy, electric power, papermaking, printing and dyeing industries, laboratory
Lab Electric Stirrer NB20-S(20L)

Key Features:
High reliability and outstanding performance.
A wide range of speed from 50 to 2200rpm.
Brushless DC motor for long life, maintenance free and explosion proof.
LED screen for monitoring actual speed.
Safety circuits allow for safe stop function in anti-stall or overload conditions.

Lab Electric Stirrer NB40-S(40L)
Key Features:
High reliability and outstanding performance.
A wide range of speed from 50 to 2200rpm.
Brushless DC motor for long life, maintenance free and explosion proof.
LED screen for monitoring actual speed.
Safety circuits allow for safe stop function in anti-stall or overload conditions.

Specifications NB20-S NB40-S
Max. stirring quantity[H2O] 20L 40L
Motor type brushless DC motor brushless DC motor
Motor input power 60W 120W
Motor output power 50W 100W
Voltage 100-240V, 50/60 Hz 100-240V, 50/60 Hz
Power 70W 130W
Speed range 50-2200rpm 50-2200rpm
Speed display accuracy ±3rpm ±3rpm
Speed display LED LED
Overload protection display LED light LED light
Max. torque 40Ncm 60Ncm
Viscosity max. 10000mPas 50000mPas
Chuck range diameter 0.5-10mm 0.5-10mm
Dimension[WxHxD] 83x220x186mm 83x220x186mm
Weight 2.8kg 2.8kg
Protection class IP42 IP42
Permissible ambient temperature and humidity 5-40°C, 80%RH 5-40°C, 80%RH
Overhead Stirrer
Cat. No. P/N Descriptions Power supply
8033100200 NB20-S

LED Digital Overhead Stirrer , Max. stirring quantity 20L.

NB20-S package4 OS20-S main body 8033100200 +Universal plate stand18900258 +Crossed stirrer18900071

USA plug,100V-220V/50Hz/60Hz

Cn plug,100V-220V/50Hz/60Hz

Euro plug,100V-220V/50Hz/60Hz

UK plug,100V-220V/50Hz/60Hz
8033200200 NB40-S

LED Digital Enhanced Overhead Stirrer, Max. stirring quantity 40L.

NB40-S package3,NB40-S main body 8033200200 +Universal plate stand18900258 +Crossed stirrer18900071

USA plug,100V-220V/50Hz/60Hz

Cn plug,100V-220V/50Hz/60Hz

Euro plug,100V-220V/50Hz/60Hz

UK plug,100V-220V/50Hz/60Hz
Accessories
Cat. No. Descriptions
18900258 Universal plate stand(WxD: 20x31cm), including support holder(H: 78cm) and fixing device Grey
18900131 Universal plate stand(WxD: 20x31cm), including support holder(H: 78cm) and fixing device
18900071 Crossed stirrer, shaft length 40cm,stirrer diameter 5cm, 304 stainless steel
18900072 Straight stirrer, shaft length 40cm,stirrer diameter 6cm, 304 stainless steel
18900073 Blade stirrer, shaft length 40cm,stirrer diameter 6.8cm, 304 stainless steel
18900074 Centrifugal stirrer, shaft length 40cm,stirrer diameter 9cm, 304stainless steel
18900075 Crossed stirrer, shaft length 35cm,stirrer diameter 6.5cm, PTFE coated
18900076 Straight stirrer, shaft length 35cm,stirrer diameter 7cm, PTFE coated
18900077 Blade stirrer, shaft length 35cm,stirrer diameter 6.8cm, PTFE coated
18900078 Centrifugal stirrer, shaft length 35cm,stirrer diameter 8.5cm, PTFE coated
18900330 Crossed stirrer, shaft length 40cm,stirrer diameter 5cm, 316L stainless steel (prevent the liquid spills)
