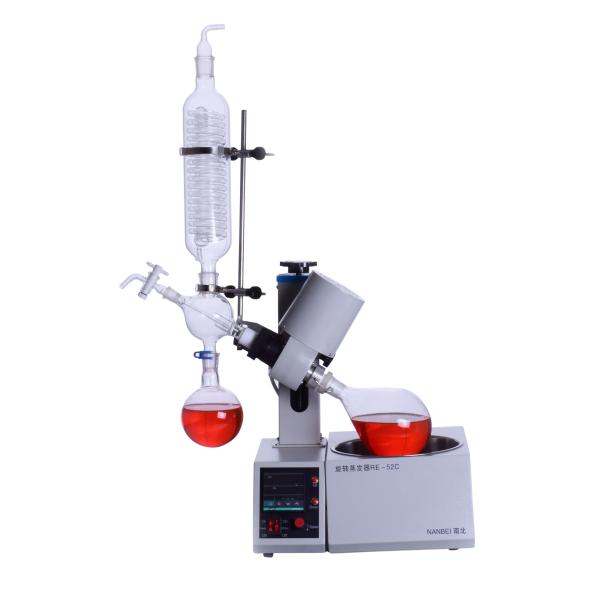

Aluminium Alloy Holder Small Lab Rotary Evaporator
Aluminium Alloy Holder Small Lab Rotary Evaporator
Aluminium Alloy Holder Small Lab Rotary Evaporator
Aluminium Alloy Holder Small Lab Rotary Evaporator
Aluminium Alloy Holder Small Lab Rotary Evaporator
Aluminium Alloy Holder Small Lab Rotary Evaporator
Aluminium Alloy Holder Small Lab Rotary Evaporator
Aluminium Alloy Holder Small Lab Rotary Evaporator
Aluminium Alloy Holder Small Lab Rotary Evaporator
Aluminium Alloy Holder Small Lab Rotary Evaporator
Aluminium Alloy Holder Small Lab Rotary Evaporator
Aluminium Alloy Holder Small Lab Rotary Evaporator
Specifications
Brand Name :
NANBEI
Model Number :
NBRE-52C(52AA)
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1set
Payment Terms :
TT, LC, Paypal, Western Union, MoneyGram…
Delivery Time :
7-10days
Supply Ability :
500 set/per day
Packaging Details :
Wooden cases and cartons
Glass meterial :
GG-17
Holder material :
Aluminium alloy
Evaporator flask :
1L 24#
Collect flask :
0.5L 24#
Vacuum degree :
0.098Mpa
Rotary speed :
0-120rpm
Rotary power :
30W
Heating power :
1KW
Description

Small Lab Rotary Evaporator Aluminium Alloy Holder Material GG-17

USES of Vacuum Rotary Evaporator

Rotary evaporator is the necessary basic instrument for chemical industry, medicine industry, institutions of higher learning and scientific research laboratory and other units, it is the main means for manufacturing and analyzing experiments when they do extraction and concentration .

Features of Vacuum Rotary Evaporator

Motor has the function of 10-120 RPM stepless speed regulation and automatic lifting , revolving consists of a set of stable and reliable micro motor, speed motor and integrated circuit control device. In the role of electronic speed, it can rotating steadily in 10-120 RPM range, it has reached the advanced level at home and abroad.

1 Quick and easy lifting mechanism

2 Evaporator along the horizontal direction can lean in 0-45 ℃ arbitrarily.

3 Vertical condensation system of high rate of evaporation

4 Vacuum sealing way

5 Automatic control temperature digital display

Aluminium Alloy Holder Small Lab Rotary Evaporator

NBRE-52A/NBRE-52C/NBRE-5299 1L

Model NBRE-52A NBRE-52C NBRE-5299
Glass meterial GG-17
Holder material Aluminium alloy
Pot shell Material

Aluminium alloy

250*365*150mm

Aluminium alloy

250*365*150mm

Aluminium alloy

265*310*80mm
Pot bravery

Stainless steel

240*120mm

Stainless steel

250*130mm

Stainless steel

250*140mm
Evaporator flask 1L 24#
Collect flask 0.5L 24#
Vacuum degree 0.098Mpa
Rotary speed 0-120rpm
Rotary power 30W
Heating power 1KW
Heating temp. 0-99C
Temp. accuracy -1
Lifting power --- 15W
Lifting stroke 120mm
Voltage 220/110V 50/60HZ
Dimension 700*440*1005mm
Packing size 590*460*460mm
Packing weight 21kg
Configuration list
Speed mode Electronic stepless
Temp. display Digital
Temp. control Intelligent temp. control
Sealing method PTFE
Condenser Vertical 85*460mm 29#
Lifting mode Manual lifting Electric automatic lifting Electric automatic lifting
Continuous feed Standard mouth feed valve 19# Standard mouth feed valve 19# Standard mouth feed valve
Option
Splash device Transparent cover for heating bath
Bath temp.range 0-400Ｃ
