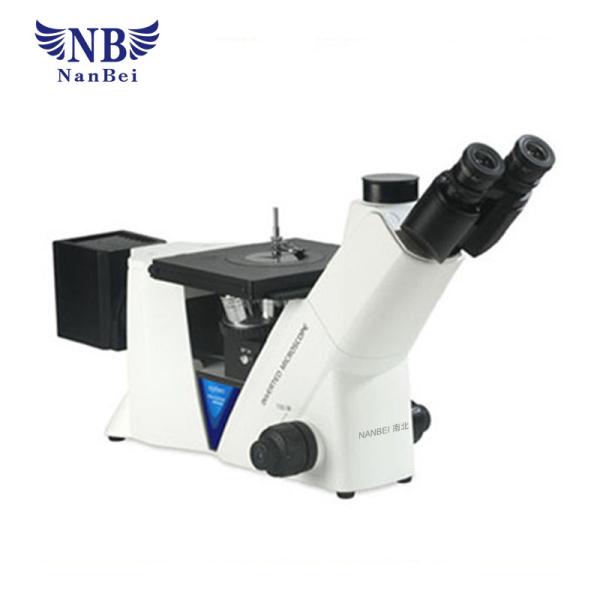

MDS400 Medical Laboratory Microscope For Optical Metallurgical Research
MDS400 Medical Laboratory Microscope For Optical Metallurgical Research
MDS400 Medical Laboratory Microscope For Optical Metallurgical Research
MDS400 Medical Laboratory Microscope For Optical Metallurgical Research
MDS400 Medical Laboratory Microscope For Optical Metallurgical Research
MDS400 Medical Laboratory Microscope For Optical Metallurgical Research
MDS400 Medical Laboratory Microscope For Optical Metallurgical Research
MDS400 Medical Laboratory Microscope For Optical Metallurgical Research
MDS400 Medical Laboratory Microscope For Optical Metallurgical Research
MDS400 Medical Laboratory Microscope For Optical Metallurgical Research
Specifications
Model Number :
MDS400
Price :
USD2269-USD3346/set
Place of Origin :
China
Brand Name :
NANBEI
Certification :
CE,ISO
MOQ :
1set
Delivery Time :
7-10days
Payment Terms :
TT, LC, Paypal, Western Union, MoneyGram…
Optical system :
Infinite Harmonic Correction Optical System
Magnification range :
50×～1000×
eyepiece :
10X large field of view, high eye point field eyepiece, field of view Φ22mm (23mm optional)
Observation tube :
Hinged three-eye observation tube, 45 ° tilt, interpupillary distance adjustment 48 ~ 76mm, two-speed conversion
Objective lens converter :
Internal positioning of four or five hole converters
Coarse focusing device :
Coarse coaxial focus, coarse adjustment with elastic adjustment
Stage :
Three-tier mechanical moving stage, an area of 210 × 180mm, moving range of 50 × 50mm, the cursor scale 0.1mm
Polarizer :
Polarizer, analyzer
Description

MDS400 Medical Laboratory Microscope For Optical Metallurgical Research

Brief introduction of Inverted microscope:

New research and development of a new generation of inverted metallographic microscope, set bright field, dark field, polarized light observation methods, widely used in metal, minerals, electronics and other fields ...

Features of NANBEI Inverted microscope:

1. Light and dark field observation function can be realized

2. large field of vision eyepiece, the number of field can reach 23mm, observe a more flat and comfortable

3. two-speed conversion observation tube, 100% observation; 20% observation, while 80% photography

4. Large area of three-tier mechanical movement of the stage, so that your sample selection is more extensive

5. Polarization observation attachment for simple polarized observation

6. long working distance infinity flat field objective lens

7. Long working distance infinity horizon field

MDS400 Medical Laboratory Microscope For Optical Metallurgical Research

Optical system Infinite Harmonic Correction Optical System
Magnification range 50×～1000×
eyepiece 10X large field of view, high eye point field eyepiece, field of view Φ22mm (23mm optional)
Objective lens Long working distance infinity horizon objective lens:5×/10×/20×/40×/50×(S)/80×(S)/100×(S)
Long working distance infinity field field bright and dark field objective lens:5×/10×/20×/50×/80×
Observation tube Hinged three-eye observation tube, 45 ° tilt, interpupillary distance adjustment 48 ~ 76mm, two-speed conversion
Objective lens converter Internal positioning of four or five hole converters
Coarse focusing device Coarse coaxial focus, coarse adjustment with elastic adjustment
Stage Three-tier mechanical moving stage, an area of 210 × 180mm, moving range of 50 × 50mm, the cursor scale 0.1mm
Lighting system 12V / 50W halogen lamp (wide voltage input: 100V ~ 240V)
Polarizer Polarizer, analyzer
Camera interface 1×/0.5×C-Mount interface
Digital camera Can be configured CANON, NIKON, OLYMPUS and other digital cameras
Metallographic analysis system Professional metallographic analysis rating software
Digital camera system DV / TP series of digital camera system
