Specifications
Brand Name :
NANBEI
Model Number :
LGJ-10-1
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1set
Price :
USD1850-USD2200/set
Payment Terms :
TT, LC, Paypal, Western Union, MoneyGram…
Delivery Time :
7-10days
Supply Ability :
500 set/per day
Packaging Details :
Wooden cases and cartons
Drying Area :
0.12m2
Cold Trap Temperature :
-55c
Vacuum Degree :
<10PA
Material Tray Size :
200mm
Tray Layer :
4PCS
Bulk Capacity :
1.2L
Voltage :
AC220V, 50Hz/110V;60Hz
Power :
700 W
Description

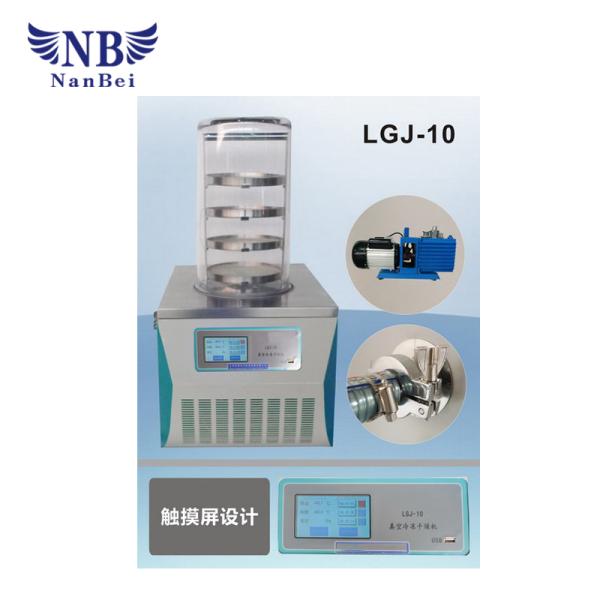

Bench Lab Freeze Dryer , Pharmaceutical Freeze Dryer Vacuum Degree <10PA

Bench Lab Freeze Dryer , Pharmaceutical Freeze Dryer Vacuum Degree <10PA

General Introduction for Freeze Dryer

Freeze dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production ,etc. After the freeze drying process, a long term preservation for products is much easier. They can be restored to the original state and maintain their chemical and biological characteristics after being watered.

The vacuum freeze drying technology, which is also called sublimation drying, is a technical method that freezes samples in advance, and then sublimates its moisture in vacuum state.

Application for Freeze Dryer

LGJ-10 Freeze Dryer is suitable for freeze-drying experiment in laboratory. It is bench top equipment.

Main features for Freeze Dryer

  • CFC Free refrigeration
  • LCD display drying curves, English interface
  • Big opening of condenser, condenser with pre-freezing function
  • low noise compressor, good efficiency, long service life
  • Condenser and operation panel are all stainless steel
  • Drying Chamber with organic glass is safe and visible
  • Shelf and tray are stainless steel, tray spacing can be customized
  • Small volume , easy and convenient operation
  • Nitrogen valve is optional
  • Eutectic point test device is optional
  • Communication interface is optional
  • Cascade refrigeration is optional , applied for -80℃ device

Bench Lab Freeze Dryer , Pharmaceutical Freeze Dryer Vacuum Degree <10PA

Freeze drying area 0.12㎡
Condenser capacity 3-4 L /24h
Condenser temperature -55℃ (-80 ℃ optional )
Vacuum degree < 10 Pa
Material tray Ф200mm , 4 layers
Bulk capacity 1.2L, 10mm thickness
Vial capacity Φ12mm 920 pcs
Vial capacity Φ16mm 480 pcs
Vial capacity Φ22mm 260 pcs
Cooling Air, draughty, ambient temperature ≤25℃
Voltage 220V ,50 Hz; 110V, 50Hz; 110V, 60Hz
Dimension 460×625×(370+430) mm
Total power 700 w
Host weight 41KG
