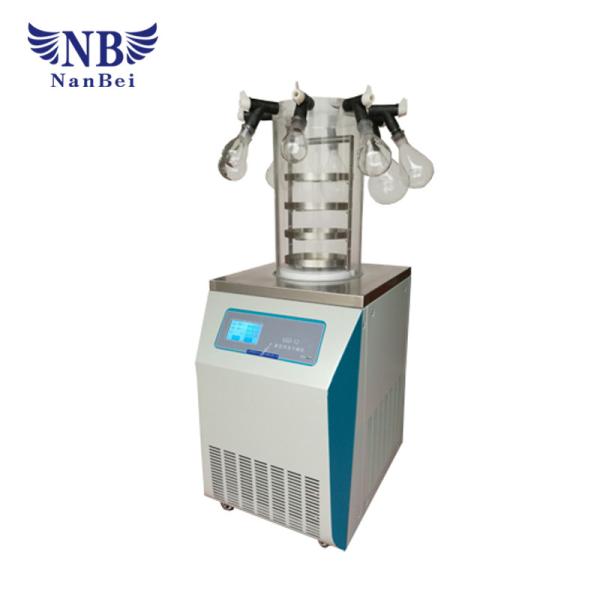

Manifold Laboratory Freeze Dryer , Chemical Vacuum Freeze Dryer 1 Year Warranty
Manifold Laboratory Freeze Dryer , Chemical Vacuum Freeze Dryer 1 Year Warranty
Manifold Laboratory Freeze Dryer , Chemical Vacuum Freeze Dryer 1 Year Warranty
Manifold Laboratory Freeze Dryer , Chemical Vacuum Freeze Dryer 1 Year Warranty
Specifications
Brand Name :
NANBEI
Model Number :
LGJ-12-3
Certification :
CE ISO
Place of Origin :
China
MOQ :
1set
Price :
USD2450-USD2950/set
Payment Terms :
TT, LC, Paypal, Western Union, MoneyGram…
Delivery Time :
7-10days
Supply Ability :
500 set/per day
Packaging Details :
Wooden cases and cartons
Freeze drying area :
0.12㎡
Condenser capacity :
3-4 L /24h
Condenser temperature :
-55℃ (-80 ℃ optional)
Type :
Freeze Drying Equipment,Vacuum Drying Equipment,freeze dryer lyophilizer
Condition :
New
Warranty :
1 Year
After-sales service provided :
Free spare parts
Description

Manifold Laboratory Freeze Dryer , Chemical Vacuum Freeze Dryer 1 Year Warranty

Manifold Laboratory Freeze Dryer , Chemical Vacuum Freeze Dryer 1 Year Warranty

General Introduction for Freeze Dryer

Freeze dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production ,etc. After the freeze drying process, a long term preservation for products is much easier. They can be restored to the original state and maintain their chemical and biological characteristics after being watered.

The vacuum freeze drying technology, which is also called sublimation drying, is a technical method that freezes samples in advance, and then sublimates its moisture in vacuum state.

Application for Freeze Dryer

LGJ-12 vertical vacuum freeze dryer is suitable for experiment in laboratory

Main features for Freeze Dryer

  • CFC Free refrigeration
  • LCD display drying curves, English interface
  • Big opening of condenser, condenser with pre-freezing function
  • low noise compressor, good efficiency, long service life
  • Condenser and operation panel are all stainless steel
  • Drying Chamber with organic glass is safe and visible
  • Shelf and tray are stainless steel, tray spacing can be customized
  • Small volume , easy and convenient operation
  • Nitrogen valve is optional
  • Eutectic point test device is optional
  • Communication interface is optional
  • Cascade refrigeration is optional , applied for -80℃ device

Manifold Laboratory Freeze Dryer , Chemical Vacuum Freeze Dryer 1 Year Warranty

Freeze drying area 0.12㎡
Condenser capacity 3-4 L /24h
Condenser temperature -55℃ (-80 ℃ optional)
Vacuum degree < 10 Pa
Material tray Ф200mm , 4 layers
Bulk capacity 1.2L, 10mm thickness
Vial capacity Φ12mm 920 pcs
Vial capacity Φ16mm 480 pcs
Vial capacity Φ22mm 260 pcs
Manifold with 8 ports
Flask 1000ml,500ml ,250ml ,100ml
Cooling Air,draughty,ambient temperature≤25℃
Voltage 220V, 50Hz
Host dimension 556×460×(720+465) mm
Power 750W
Host weight 62 kg
