Specifications
Brand Name :
NANBEI
Model Number :
NBRE-5000
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1set
Price :
USD4662-USD5891/set
Payment Terms :
TT, LC, Paypal, Western Union, MoneyGram…
Delivery Time :
7-10days
Supply Ability :
500 set/per day
Packaging Details :
Wooden cases and cartons
Rotating motor power :
100W
Lifting motor power :
60W
Heating power :
8KW
Vacuum degree :
0.098Mpa
Condition :
New
Warranty :
1 Year
Description

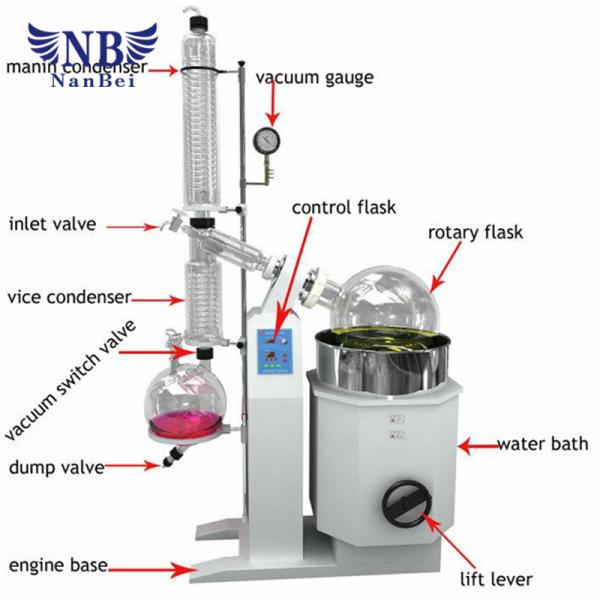

NBRE-5000 Lab Rotary Evaporator 0.098Mpa For Vacuum Oil Extraction

Brief introduction of Lab Rotary Evaporator

Rotary evaporator use stepless speed to make the glass rotating bottle constant rotation, the material in the bottle wall to form a large area of uniform film, and then through the intelligent constant temperature water bath heat the rotating bottle uniformly, high-speed evaporation under vacuum case, after the efficient glass condenser cooling, the solvent vapor will recycle in the collection bottle.

Features of Rotary evaporator:

• The main bracket is made of stainless steel and aluminum alloy with reasonable structure and materials.

• All glass components are borosilicate glass (GG-17), high temperature, anti-corrosion.

• Sealing system adopts imported fluorine rubber and Teflon two-way combination seal, long corrosion-resistant life, to maintain a high degree of vacuum.

• Vacuum gauges show real-time vacuum, oil-based table with anti-vibration characteristics.

• Upright three-layer serpentine coil condenser, main cooler + double cooler, ensuring high recovery.

• Continuous feeding for customer's convenience, valve type feeding valve socket PTFE tube.

• Collecting bottles are equipped with dropping materials to facilitate the collection and discharge of evaporated extracts.

• Check valve control, continuous discharge, the machine in working condition, the vacuum switch.

• All valves use the latest integrated hand wheel valve, sealing is good, the operation is more simple and convenient

Microprocessor-based power switch control.

• LCD full screen display, temperature, speed dual digital display, bath thermostat intelligent control, PT100-type sensor, quickly and accurately transfer temperature.

• Brushless DC motor, stable rotation, no spark, slow down by force.

• Bath electric lift, lift part of the deceleration by force motor, lifting process more stable.

• The pot is made of high-quality 304 stainless steel, corrosion-resistant and durable. The outer layer of the pot is covered with a silicone layer, which makes it safer to use at high temperature.

• Over-temperature protection function, when the actual temperature exceeds the set temperature of 5 ℃, the machine will automatically power-off heating.

• Anti-dry function, the heating pot lower than the heating pipe, the machine will automatically power off.

• If there is a sudden power failure while the machine is working, the machine will stop heating automatically when the power is turned on again.

Industrial NBRE-5000 Lab Rotary Evaporator 0.098Mpa For Vacuum Oil Extraction

Power supply 380V/50HZ (various power supply and plug can be customized)
Rotating motor power 100W
Lifting motor power 60W
Heating power 8KW
Vacuum degree 0.098Mpa
Rotating flask capacity 50000ml Φ470mm/Φ125mm flange mouth
Collecting flask capacity 20000ml Φ355mm/Φ60mm flange mouth
Rotating speed 0-120rpm/min
Temperature controlling range 0-400℃
Temperature controlling accuracy ±1℃
Glass temperature range -80-250℃
Lifting stroke 0-180(mm)
Condenser size MainΦ160×840H(mm) DeputyΦ160×480H(mm)
Feed valve Φ35 flange mouth
Release valve Φ35 flange mouth*2pcs
Discharge valve ¢15mmglass and lean discharge port
Bath size/volume Φ550×320H(mm) about76L
Dimension 1400*600*2250(mm)
Packing size 1270L×620W×1440H(mm) about1.133m3
Gross weight 118KG
