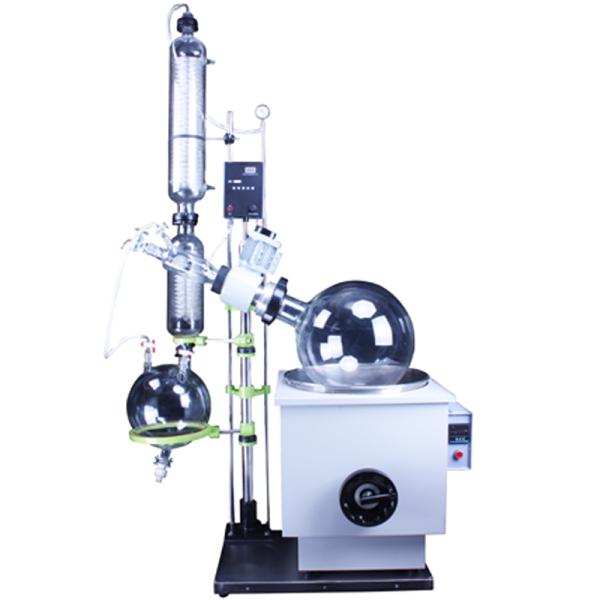

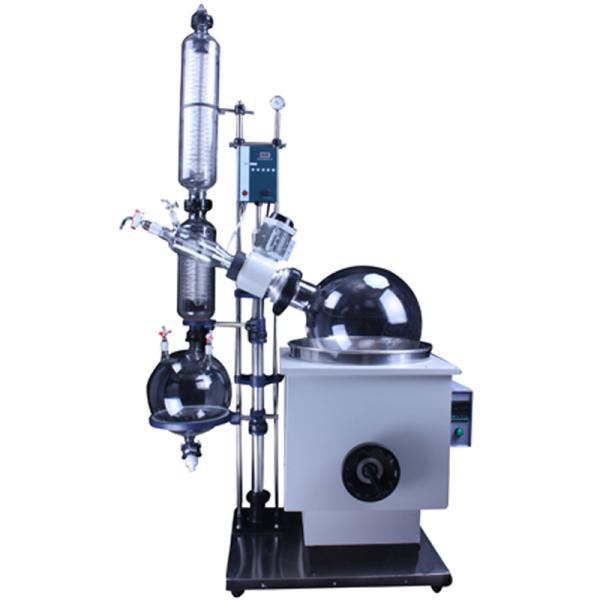

NBRE-5003 Lab Rotary Evaporator 110RPM Vacuum Degree Electric Explosion Proof small rotovap
NBRE-5003 Lab Rotary Evaporator 110RPM Vacuum Degree Electric Explosion Proof small rotovap
NBRE-5003 Lab Rotary Evaporator 110RPM Vacuum Degree Electric Explosion Proof small rotovap
NBRE-5003 Lab Rotary Evaporator 110RPM Vacuum Degree Electric Explosion Proof small rotovap
NBRE-5003 Lab Rotary Evaporator 110RPM Vacuum Degree Electric Explosion Proof small rotovap
NBRE-5003 Lab Rotary Evaporator 110RPM Vacuum Degree Electric Explosion Proof small rotovap
NBRE-5003 Lab Rotary Evaporator 110RPM Vacuum Degree Electric Explosion Proof small rotovap
NBRE-5003 Lab Rotary Evaporator 110RPM Vacuum Degree Electric Explosion Proof small rotovap
NBRE-5003 Lab Rotary Evaporator 110RPM Vacuum Degree Electric Explosion Proof small rotovap
NBRE-5003 Lab Rotary Evaporator 110RPM Vacuum Degree Electric Explosion Proof small rotovap
NBRE-5003 Lab Rotary Evaporator 110RPM Vacuum Degree Electric Explosion Proof small rotovap
NBRE-5003 Lab Rotary Evaporator 110RPM Vacuum Degree Electric Explosion Proof small rotovap
NBRE-5003 Lab Rotary Evaporator 110RPM Vacuum Degree Electric Explosion Proof small rotovap
NBRE-5003 Lab Rotary Evaporator 110RPM Vacuum Degree Electric Explosion Proof small rotovap
Specifications
Brand Name :
NANBEI
Model Number :
NBRE-5003
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1set
Price :
USD2106-USD2592/set
Payment Terms :
TT, LC, Paypal, Western Union, MoneyGram…
Delivery Time :
7-10days
Supply Ability :
500 set/per day
Packaging Details :
Wooden cases and cartons
Glass meterial :
GG-17
Holder material :
Stainless steel
Vacuum degree :
0.098Mpa
Rotary speed :
0-110RPM
Rotary power :
180W 220V/50HZ
Heating power :
8KW 380V/50HZ
Description

NBRE-5003 Lab Rotary Evaporator 110RPM Vacuum Degree Electric Explosion Proof

Brief introduction of Lab Rotary Evaporator

Rotary evaporator is the necessary basic instrument for chemical industry, medicine industry, institutions of higher learning and scientific research laboratory and other units, it is the main means for manufacturing and analyzing experiments when they do extraction and concentration .

Features of Rotary evaporator:

1. Using PTFE + fluorine rubber seal cover, to maintain a high vacuum degree. Gas-liquid separation, no reflow .

2. USES the main and secondary efficient double condenser to ensure high recovery rate.

3. Rotating bottle with nut connection, it is easy to load and unload.

4. There is tap valve under the collection bottle mouth, recycled solvent is very fast.

5. Feeding continuously.

6. Vacuum gauge is to make sure the best work vacuum degree can be adjusted for the low boiling point materials.

7. Water bath with digital and continuous temperature controlling.

8. Reasonable structure, special materials . The mechanical structure mainly use stainless steel and aluminum alloy parts, glass pieces are all made of high temperature resistant and high boron glass. Imported Electrical key-module. Rubber seal is easy to adopt the new international, making it easy for users to purchase and update.

NBRE-5003 Lab Rotary Evaporator 110RPM Vacuum Degree Electric Explosion Proof small rotovapNBRE-5003 Lab Rotary Evaporator 110RPM Vacuum Degree Electric Explosion Proof small rotovap

Model NBRE-5003
Glass meterial GG-17
Holder material Stainless steel

Pot shell

Material

Spray anti-corrosion

710*620*700mm
Pot bravery

Stainless steel

550*320mm
Plate size 804*574mm

Evaporator

flask

50L

flange mouth:Φ125mm
Collect flask

20L

flange mouth:Φ60mm
Vacuum degree 0.098Mpa
Rotary speed 0-110RPM
Rotary power 180W 220V/50HZ
Heating power 8KW 380V/50HZ
Heating temp. 0-400℃
Temp. accuracy ±1℃
Lifting stroke 180mm
Dimension 1520*620*2470mm
Packing size 1540*640*2490mm
Packing weight 170kg
