Heater / Chiller Optional Type Chemical Jacketed Glass Reactor
Heater / Chiller Optional Type Chemical Jacketed Glass Reactor
Heater / Chiller Optional Type Chemical Jacketed Glass Reactor
Heater / Chiller Optional Type Chemical Jacketed Glass Reactor
Heater / Chiller Optional Type Chemical Jacketed Glass Reactor
Heater / Chiller Optional Type Chemical Jacketed Glass Reactor
Specifications
Brand Name :
NANBEI
Model Number :
NBGR-5L
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1set
Payment Terms :
TT, LC, Paypal, Western Union, MoneyGram…
Delivery Time :
7-10days
Supply Ability :
500 set/per day
Packaging Details :
Wooden cases and cartons
Name :
Jacketed Glass Reactor
Glass Material :
High Borosilicate Glass
Rector Type :
Single Glass Reactor, Reaction Vessel
Application Areas :
Pharmacy,Biological,Lab,Chemical
Function :
Stirring Mixing,Vacuum,Distillation and Reflux,Co
Material of Agitated Stirrer :
PTFE
Optional Type :
Heater, Chiller, Vacuum and Ex-Proof
Warranty :
1year
Description

Chemical Jacketed Glass Stirred Tank Reactor Heater / Chiller Optional Type

Brief of Jacketed Glass Reactor

The kettle body is designed by double glazing glass reactor, the inner layer into the reaction solution to do the reaction was stirred interlayer can pass into the type of the cold heat source circulating heating or cooling the reaction can also be used in high temperature, low temperature, or vacuum experiment reflux and distillation of the reaction solution. It is the ideal equipment for primary and secondary schools of modern chemistry experiments, biopharmaceutical and synthesis of new materials.
Heater / Chiller Optional Type Chemical Jacketed Glass Reactor
Features of Jacketed Glass Reactor

1. A full set of glassware with GG3.3 borosilicate glass production with good chemical and physical properties

2. Limit temperature of 250°C for high temperature experiments, and limit temperature of -60°C for low temperature experiments.

3. Titanium ring, new titanium alloy mechanical seal, sealing 0.098Mpa.

4. The PT100 temperature, and is a liquid crystal display. More accurate temperature measurement and more convenient.

5. Frequency control, AC induction motor. Constant speed, brushless, no spark, security and stability, and continuous work.

6. Quality 304 stainless steel all-inclusive PTFE stirring rod and a three-bladed propeller structure.

7. The bottom flanged discharge port with a PTFE value, aluminum parts flange fixed container no dead ends.

Heater / Chiller Optional Type Chemical Jacketed Glass Reactor

Technical parameter of Jacketed Glass Reactor

Models NB-5L NB-3L NB-2L NB-1L
Volume(L) 5 3 2 1
Power(w) 90 60 60 60
Speed(rpm) 20-600
Mixing torque(1300r/min) 5000g.cm 5000g.cm 5000g.cm 2400g.cm
Inside and outside tube diameter 200*230 200*230 150*180 150*180
Size(cm) 44*32*84 44*32*84 44*32*84 35*27*65

Company Introduction

Heater / Chiller Optional Type Chemical Jacketed Glass Reactor

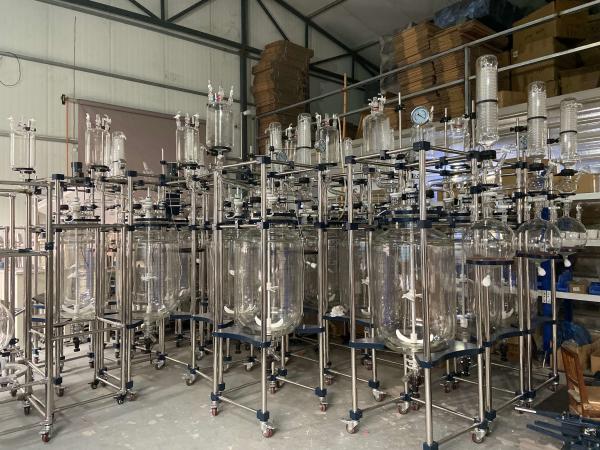

Factory Show
