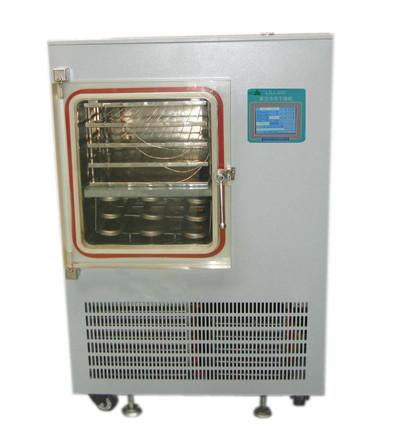

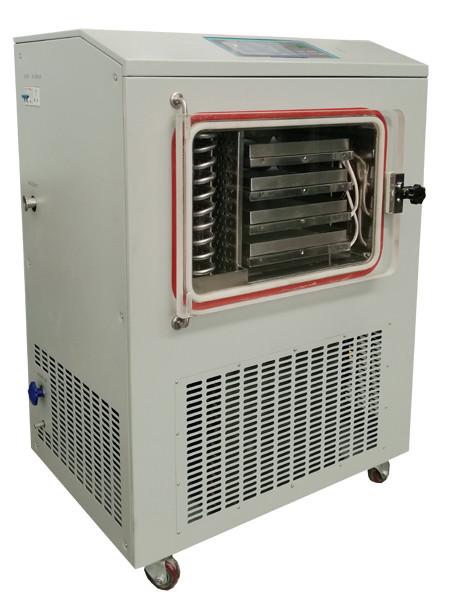

Commercial Lab Freeze Dryer 3.5 KW Power For Vegetable Fruit And Food
Commercial Lab Freeze Dryer 3.5 KW Power For Vegetable Fruit And Food
Commercial Lab Freeze Dryer 3.5 KW Power For Vegetable Fruit And Food
Commercial Lab Freeze Dryer 3.5 KW Power For Vegetable Fruit And Food
Commercial Lab Freeze Dryer 3.5 KW Power For Vegetable Fruit And Food
Commercial Lab Freeze Dryer 3.5 KW Power For Vegetable Fruit And Food
Commercial Lab Freeze Dryer 3.5 KW Power For Vegetable Fruit And Food
Commercial Lab Freeze Dryer 3.5 KW Power For Vegetable Fruit And Food
Specifications
Brand Name :
NANBEI
Model Number :
LGJ-30F
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1set
Price :
USD7500-USD8900
Payment Terms :
TT, LC, Paypal, Western Union, MoneyGram…
Delivery Time :
7-10days
Supply Ability :
500 set/per day
Packaging Details :
Wooden cases and cartons
Freeze drying area :
0.4㎡
Condenser capacity :
6 kg /24h
Condenser temperature  :
Min. ≤-70℃
Vacuum degree :
≤10 Pa
Vial capacity Φ12mm :
2600 pcs
Vial capacity Φ16mm :
1440 pcs
Vial capacity Φ22mm :
728 pcs
Power  :
3.5 KW
Description

Commercial Lab Freeze Dryer 3.5 KW Power For Vegetable Fruit And Food

Commercial Lab Freeze Dryer 3.5 KW Power For Vegetable Fruit And Food

General Introduction for Lab Freeze Dryer

This series is one of our patent products. This series of dryers with heating shelf,

freezing and drying process are finished in the same place. It changes traditional

complicated operation and prevents the product from pollution.

Application for Lab Freeze Dryer

LGJ-30F Freeze Dryer is suitable for pilot scale or small scale production.

Main features for Lab Freeze Dryer

1. With heating shelf and PID control standard, with programmable function

2. Freeze and drying process are completed on shelves

3. 32 groups program can be stored, each program can be set up 36 segments

4. With organic glass observation window, whole process is easy to see

5. Silicon oil fills hollow shelves, with most uniform shelf temp., consistent and repeatable drying

6. Big touch screen LCD display drying curves

7. Internal surface of rectangular chamber and product tray are constructed of stainless steel

8. Air-let-in valve with nitrogen is available

9. Eutectic point test device is optional

Commercial Lab Freeze Dryer 3.5 KW Power For Vegetable Fruit And Food

Freeze drying area 0.4㎡
Condenser capacity 6 kg /24h
Condenser temperature Min. ≤-70℃
Vacuum degree ≤10 Pa
shelf temperature -50℃----+70℃
Shelf layers 4+1 layers; 50mm spacing
Shelf size 300x340x15mm
Bulk capacity 4 L, 10mm thickness
Vial capacity Φ12mm 2600 pcs
Vial capacity Φ16mm 1440 pcs
Vial capacity Φ22mm 728 pcs
Electric defrosting N/A
Cooling Air,draughty,ambient temperature≤25℃
Voltage 220V, 50Hz
Host dimension 880x735x1310mm
Weight 300 kg
Power 3.5 KW

Company Introduction of Lab Freeze Dryer

Commercial Lab Freeze Dryer 3.5 KW Power For Vegetable Fruit And Food

Certificate of Lab Freeze Dryer

Commercial Lab Freeze Dryer 3.5 KW Power For Vegetable Fruit And Food
Our Services of Lab Freeze Dryer

Commercial Lab Freeze Dryer 3.5 KW Power For Vegetable Fruit And Food
