Specifications
Brand Name :
NANBEI
Model Number :
ANJ-M100
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1set
Price :
USD1914-USD3174/set
Payment Terms :
TT, LC, Paypal, Western Union, MoneyGram…
Delivery Time :
7-10days
Supply Ability :
500 set/per day
Packaging Details :
Wooden cases and cartons
Dimension :
880mm×350mm×550mm
Check length range :
130mm~750mm
Width stroke :
0~60°
Height stroke :
130mm
Accuracy :
±1％
Power :
AC220V/50HZ
Peak sampling frequency  :
2000HZ
Net weight :
65kg
Description

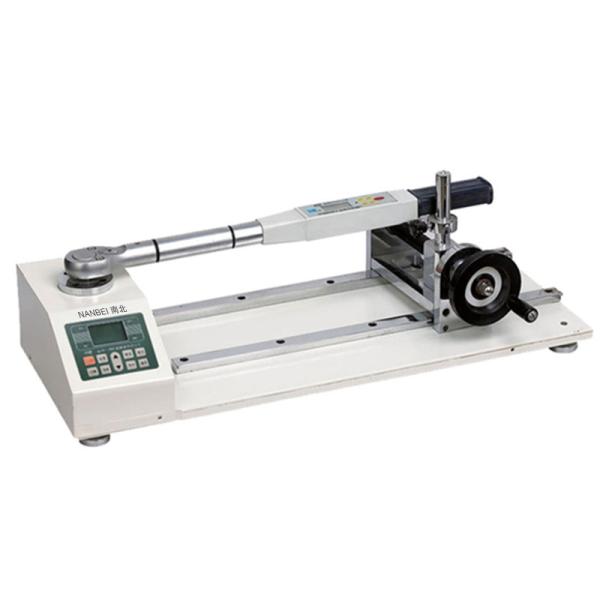

CE Digital Torque Wrench Calibration Machine , Torque Calibration Machine

Digital torque wrench calibration machine,torque calibration machine

Application and Usage of Torque Calibration Machine

The ANJ-M torque wrench tester is a special device for verifying torque wrenches and torque wrenches

Mainly used to detect a variety of fixed-type torque wrench, digital torque wrench, preset torque wrench, torque screwdriver, screwdriver and other equipment involved in tightening force and products

Widely used in electrical manufacturing, machinery manufacturing, automotive light industry, professional research and testing industry.

Feature of Torque Calibration Machine

1. Seven-inch touch screen, can display real-time curve;

2. Can switch between Chinese and English;

3. The use of high-precision torque sensor, with torque direction display;

4. Three units convert each other to choose from (N.m kgf.cm Ibf.in)

5. Can be inserted U disk to save the data can be printed;

6. Storage capacity, you can save the data to the U disk, save the data automatically saved as Excel format documents.

7. Using worm gear drive, the torque load more stable, more effort to operate.

8. 480 × 800 resolution color screen;

9. High precision, high resolution, sampling speed;

10. The upper and lower limits should be set, the font red light and buzzer sound and light alarm;

11. Real-time, peak two modes can be free to switch;

12. Peak hold function;

2000HZ CE Digital Torque Wrench Calibration Machine , Torque Calibration Machine

Model ANJ-M100 ANJ-M200 ANJ-M300 ANJ-M500 ANJ-M1000 ANJ-M2000 ANJ-M3000
Measurement range / scale value N.m 100.0/0.01 200.00/0.01 300.00/0.01 500.00/0.01 1000.0/0.1 2000/0.1 3000/0.1
Kgf.cm 1021.0/0.1 2040.0/0.1 3063.1/0.1 5105.2/0.1 10210/1 20420/1 30631/1
lbf.in 886.2/0.1 1772.4/0.1 2658.6/0.1 4431.1/0.1 Jan-62 17724/1 26586/1
Dimension 880mm×350mm×550mm 1250mm×500mm×800mm
Check length range 130mm~750mm 250mm~980mm 250mm~1800mm
Width stroke 0~60° 0~360°
Height stroke 130mm 150mm
Accuracy ±1％
Peak sampling frequency 2000HZ
Power AC220V/50HZ
Net weight 65kg 335kg

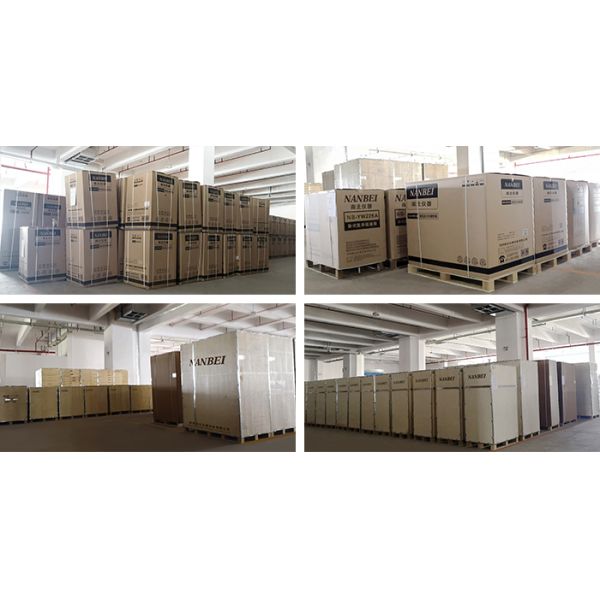

Packing and Shipping

2000HZ CE Digital Torque Wrench Calibration Machine , Torque Calibration Machine

2000HZ CE Digital Torque Wrench Calibration Machine , Torque Calibration Machine
Company Introduction

2000HZ CE Digital Torque Wrench Calibration Machine , Torque Calibration Machine
Factory Show

2000HZ CE Digital Torque Wrench Calibration Machine , Torque Calibration Machine

2000HZ CE Digital Torque Wrench Calibration Machine , Torque Calibration Machine
Certificate

2000HZ CE Digital Torque Wrench Calibration Machine , Torque Calibration Machine

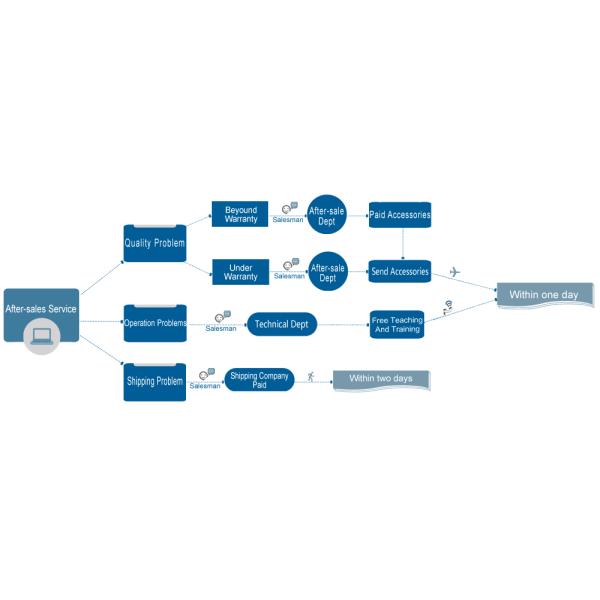

Our Services
