1920HZ Precision Torque Screwdriver Tester，Torque Wrench Calibrating Apparatus
1920HZ Precision Torque Screwdriver Tester，Torque Wrench Calibrating Apparatus
1920HZ Precision Torque Screwdriver Tester，Torque Wrench Calibrating Apparatus
1920HZ Precision Torque Screwdriver Tester，Torque Wrench Calibrating Apparatus
1920HZ Precision Torque Screwdriver Tester，Torque Wrench Calibrating Apparatus
1920HZ Precision Torque Screwdriver Tester，Torque Wrench Calibrating Apparatus
Specifications
Brand Name :
NANBEI
Model Number :
AQJ-2
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1set
Price :
USD793-USD1333/set
Payment Terms :
TT, LC, Paypal, Western Union, MoneyGram…
Delivery Time :
7-10days
Supply Ability :
500 set/per day
Packaging Details :
Wooden cases and cartons
Accuracy :
±1％
Peak sampling frequency :
1920HZ
Power :
7.2V 1.2V×6 Ni-MH battery pack
Charging time  :
4~6 hour
Battery continuous use of time :
About 10 hour
Battery warranty :
≥300time
Dimension :
260mm*300mm*620mm
Net weight :
32kg
Description

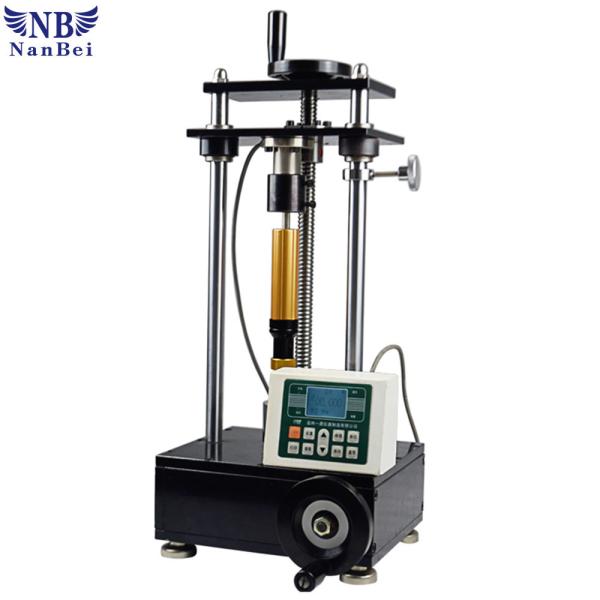

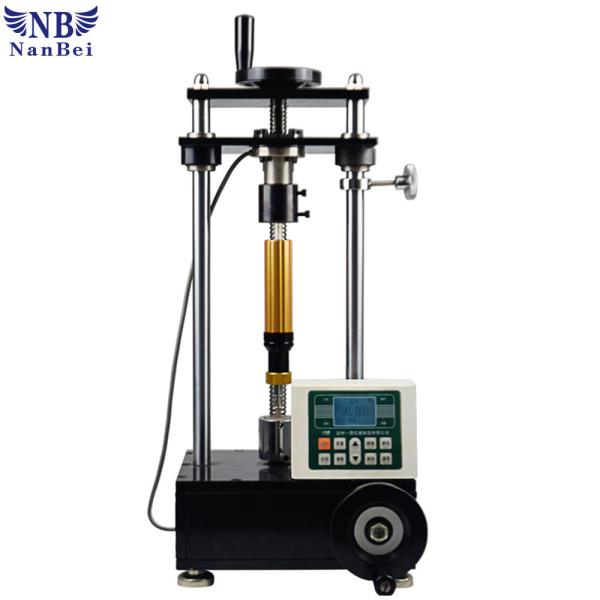

Precision Torque Screwdriver Tester,Torque Wrench Calibrating Apparatus

Application and Usage of Torque Wrench

AQJ series torque kicker is designed for testing and testing a variety of torque screwdriver design and manufacture of an intelligent multi-function measuring instruments.

Mainly used to detect and correct a variety of torque screwdriver, a variety of products involved in the test of tightening force, parts torque destructive test. With simple operation, high precision, full-featured features.

Widely used in a variety of electrical, light industry, machinery manufacturing, research institutions and other industries.

Feature of Torque Wrench

1. High precision, high resolution, sampling speed, full screen display.

2. The use of high-precision torque sensor, with torque direction display.

3. Set the upper and lower limits.

4. Three units convert each other to choose from (N.m kgf.cm Ibf.in)

5. Real-time, peak, automatic peak three modes can be free to switch.

6. Using the USB interface to communicate with the PC, the synchronization test function may link the computer test, the computer displays the test curve and the detailed test force in the test process, and can save and do all kinds of analysis.

7. Peak hold function, automatic peak function Automatic peak value display time free setting function.

8. Storage capacity, can save 99 sets of test data.

9. No operation Automatic shutdown function, the time can be set freely1920HZ Precision Torque Screwdriver Tester，Torque Wrench Calibrating Apparatus

Model AQJ-2 AQJ-5 AQJ-10 AQJ-20

Measurement range

/ scale value

 N.m 2.000/0.001 5.000/0.001 10.00/0.01 20.00/0.01
Kgf.cm 20.40/0.01 51.00/0.01 102.0/0.1 204.0/0.1
lb.in 17.70/0.01 44.25/0.01 88.5/0.1 177.0/0.1
Accuracy ±1％
Peak sampling frequency 1920HZ
Power 7.2V 1.2V×6 Ni-MH battery pack
Charging time 4~6 hour
Battery continuous use of time About 10 hour
Battery warranty ≥300time
Dimension 260mm*300mm*620mm
Net weight 32kg
charger Input:AC220V50HZ output:DC12V1000mA
