230mm Jumbo Roll Napkin Printing Machine
230mm Jumbo Roll Napkin Printing Machine
230mm Jumbo Roll Napkin Printing Machine
230mm Jumbo Roll Napkin Printing Machine
230mm Jumbo Roll Napkin Printing Machine
230mm Jumbo Roll Napkin Printing Machine
230mm Jumbo Roll Napkin Printing Machine
230mm Jumbo Roll Napkin Printing Machine
Specifications
Brand Name :
YU SHENG DA
Model Number :
YD-NP-I
Certification :
CE
Place of Origin :
Dongguan, Guangdong, CHINA
MOQ :
1
Price :
Negotiable
Supply Ability :
2 sets per month
Delivery Time :
45days after down payment
Packaging Details :
Wooden packing
Folding Type :
4 FOLD AND TWO FOLD AND EIGHT FOLD
Embossing :
Steel to Paper or Steel to Steel
Speed :
3000 Sheets Per Min
Lamination :
Point to Point or Point to Nest
Color Printing :
1 to 4 color printing
PLC :
Delta
Voltage :
380V, 50 HZ OR CUSTOMERIZED
Dimension(l*w*h) :
3200*1000*1800mm
After-sales service provided :
Engineers available to service machinery overseas, Video technical support, Online support, Field maintenance and repair service, Field installation
Condition :
NEW
Warranty :
One year
Power(w) :
5.5KW
Product type :
Napkin making machine
Processing type :
Napkin making machine
Description

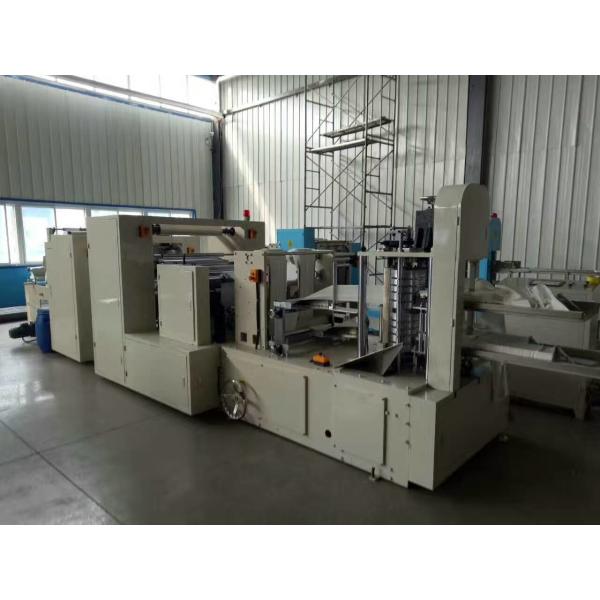

Cocktail Napkin Tissue Paper Folding Machine 230mm From Jumbo Roll

Description

Cocktail Napkin Paper Folding Machine For 230mm Size Napkin Tissue Paper is to produce 230mm Cocktail Napkin from jumbo roll. The process including embossing , folding , cutting and so on process. The machine is customerized and additional function like color printing and lamination can be specified. The speed for the two deck napkin making machine is 3000 sheets / min for 200mm size and 2200 sheets / min for 300mm size.

Specification

Open size of finished product

200*200-430*430mm (to be specified)

Diameter of Raw Paper Roll

1100mm(other size to be specified)

Inner Diameter of Paper core

76.2mm(3 inch) (other size to be specified)

Capacity

3000pieces/min

Counting Device

Electronic Counting

Embossing Roller

Woolen Roller

Power

Frequency Conversion Speed Regulator

Calendaring

Steel to steel or steel to rubber

Embossing unit

Felted roller, woolen roller, Rubber roller

Color Printing

1-2 color

Dry Device

Hot Wind Heating System

Function and Features

1. Transmission belt drive configuration

2. Color printing deviceadopts flexible printing, the design can be flexibly according to you need replace, useprofessional color printing anilox stringink roller

3. Pattern matching paper rolling device, pattern significantly

4. Electronic counting dislocation row of output

5. Folding board with mechanical hand with the folded shape, cutting through the band saw cutter

6. Other standard models can be customized

230mm Jumbo Roll Napkin Printing Machine

230mm Jumbo Roll Napkin Printing Machine

Product Application

Color Printing Embossing Napkin Folding Machine is to cut through the paper tray after printing, embossing and automatically folded into a square or rectangular-shaped napkin open. Clear and bright with printing, overlay accuracy, high speed stationary, is the processing of special equipment for high-grade napkins.

Main technical parameters

Speed
2000-2400 sheets/min
Color printing
Flexographic printing 1-4 color
Embossing unit
Steel to woolen roller
Counting unit
Electronic counting
Machine power
4.5KW
Overall dimension
4700-5200*1000*1800mm

Why buy Machine from US ?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hoursFor all the machines we sell, we will offer two-years guaranty for free and all life maintenance.
We deliver a DVD of Operation Video with machine,it will help customer to work the machine easy.
After the machines arrive, the sellers shall dispatch technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food ,transportations and accommodation in buyer's city.
