Specifications
Brand Name :
ACE
Model Number :
TPL-L
Certification :
CE
Place of Origin :
CHINA
MOQ :
1set
Price :
$20000 - 100000/set
Payment Terms :
L/C, , T/T
Supply Ability :
5 set /month
Delivery Time :
60 days
Packaging Details :
standard export packing
products :
toilet paper kitchen towel production line
lamination :
yes
Description

Lamination High Speed Automatic Start-Stop Toilet Paper and Kitchen Towel Production Line

Technical parameters of our Lamination High Speed Automatic start stop Kitchen Towel Making Machine

Model TPL Start-Stop Toilet Paper and Kitchen Towel Production Line
Parent roll size 1500mm diameter x 1200-3500mm width or customized.
Finished roll size

Diameter adjustable, maximum 150mm

Length/Width adjustable.
Speed 0-300 m/min start-stop model
Core diameter 76mm
Control

PLC Control

Human-Machine Interface (Touch screen)

Inverter speed control
Embosser

steel to rubber (1 set) controlled by level-type cylinders, not traditional screws.

Embossing tension is adjustable(micro adjustment.)

Embossing pattern can be any company LOGO, brand name, flower etc, provided by client, or recommended by us.

Steel to steel and steel to paper are optional.
Lamination

With point-to-point embossing and lamiantion system.

Similar to Italy design.

Features

Pneumatic loading jumbo rolls.

Automatic core feeding unit

Automatic counting unit

Automatic perforating unit(perforating distance is adjustable)

Outer diameter of finished rolls is adjustable by cylinder

Automatic pushing out finished logs by cylinder

Automatic tail cutter and sealer tail (Glue)

Emergency stop when paper breaks
Perforation unit

Perforating distance is adjustable.

Controlled by cylinders, not screw
Machine size 10000*5000*3000 mm depends on jumbo roll width.
Weight 5000 KG
Photos and videos available. Please contact us.

Overall view of Lamination High Speed Automatic start stop Kitchen Towel Making Machine.

1500mm Lamination Kitchen Paper Towel Machine

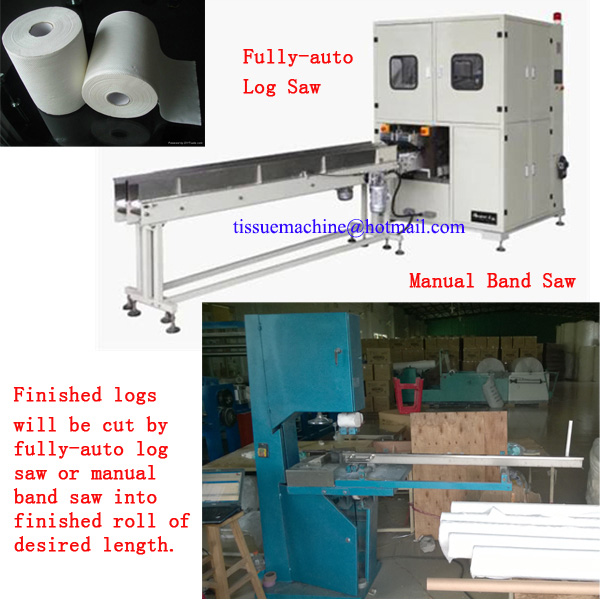

Finished logs made by our Lamination High Speed Automatic start stop Kitchen Towel Making Machine
will be cut by semi-auto or fully-auto cutting machines.

1500mm Lamination Kitchen Paper Towel Machine

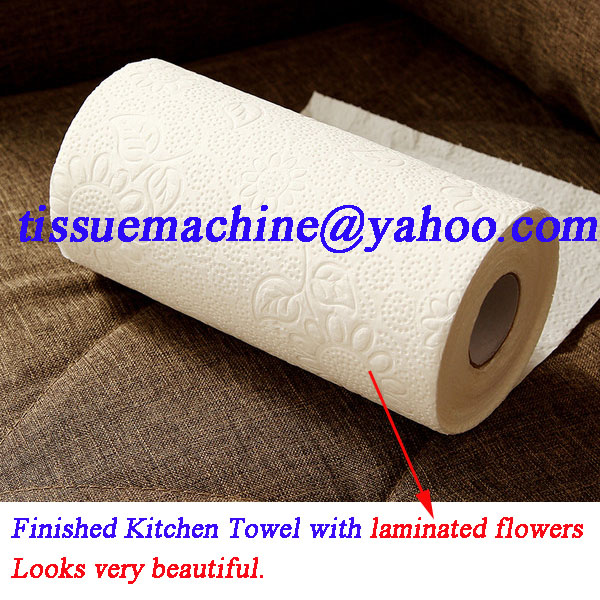

Finished toilet rolls made by our Start-Stop Toilet Paper and Kitchen Towel Production Line

1500mm Lamination Kitchen Paper Towel Machine

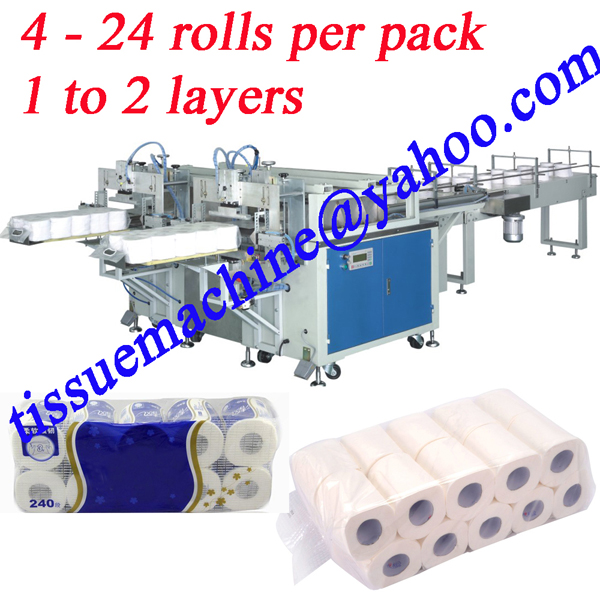

Finally packed toilet rolls made by our Start-Stop Toilet Paper and Kitchen Towel Production Line

1500mm Lamination Kitchen Paper Towel Machine

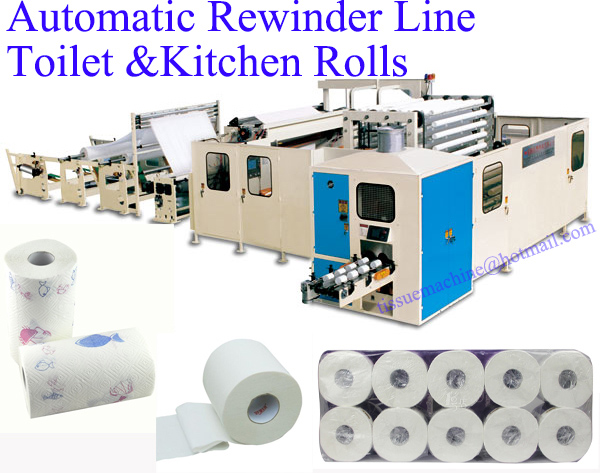

We also have another model of Lamination High Speed Automatic Continuous Kitchen Towel Making
Machine which can produce both toilet rolls and kitchen towels with lamination as shown below.

1500mm Lamination Kitchen Paper Towel Machine
