Automatic JRT Jumbo Maxi Roll Log Saw, 300mm Dia Cutting Tissue Paper Machine

Description:

This JRT maxi roll jumbo toilet paper log saw is an automatic tissue paper cutting machine widely used to cut JRT, maxi roll, industrial roll, jumbo toilet rolls etc.. It can handle big ranges of cutting sizes. It adopts advanced PLC and servo motors to control the cutting length and infeed to ensure the cutting accuracy. It can greatly increase the production efficiency.

Quick details:

1 For cutting jumbo roll tissues

2 Automatic

3 Single lane cutting

4 Cut speed 60 cut/min

5 Cut diameter 150-300mm

1. Design speed: up to 75 cuts/min;

2. Running speed: 60cuts/min;

3. Paper width: Max. 2800mm, or to be specified.

4. Log diameter: Φ150mm –Φ300mm

5. Blade diameter: Φ1000mm.

6. Adjustable clamps for the log diameter.

7. Automatic blade sharpening system.

8. Automatic blade lubrication system.

9. Solid green round belts discharge conveyor.

10. Servo drive system for any cutting length desired with the range from 90mm to 300mm.

11. Single in-feed channel;

12. Push button control on the adjustment of blade level.

13. Air disk brake.

14. Installed power: 22KW. 3phase 380v 50hz or customized.

15. MITSUBISHI or Siemens PLC control.

16. MITSUBISHI or Siemens touch screen operation panel.

17. Schneider electronics like brokers, contactors etc.

18. Omron sensors.

With sensors on the output to stop the machine if tissue rolls get stuck or jammed on the output.

Strong safety guards for protection if blade breaks.

With a fan on the top to exhaust the paper dusts.

Control system:

PLC programmed control,

Inverter for variable frequency speed control,

Touch screen for operation

Servo driving

With sensors for safety doors to stop the machine on emergency.

With sensors for the doors. If the doors are open, the machine will automatically stop.

Air compressor: 4-8kg/cm2pa, supplied by customer.

Installed Power: 3phase 380v 50hz or customized. Total about 13kw

Machine weight: about 3T.

Machine dimension: about 7.8x1.7x2.3m LxWxH. Floor plan refer to below.

Technical parameters

Brands of components used on this tissue cutting machine.

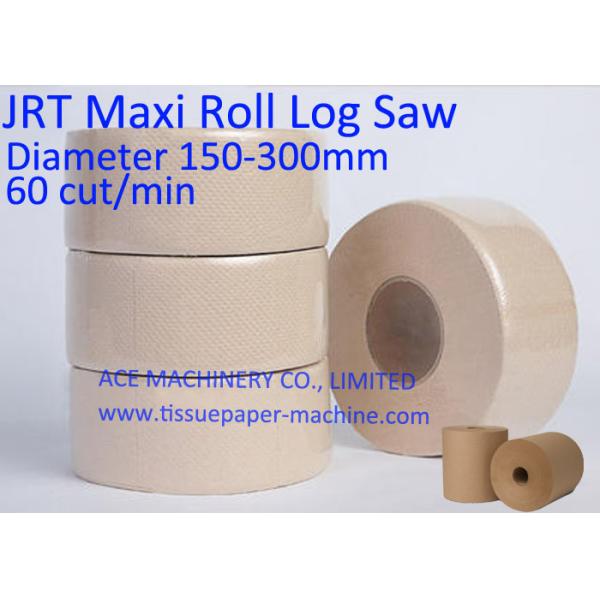

Finished products of this High Speed Logsaw Tissue Paper Cutting Machine For Tissue Paper Rolls.
