2 Lanes 1/6 Fold Napkin Tissue Paper Machine
2 Lanes 1/6 Fold Napkin Tissue Paper Machine
2 Lanes 1/6 Fold Napkin Tissue Paper Machine
2 Lanes 1/6 Fold Napkin Tissue Paper Machine
Specifications
Brand Name :
ACE
Model Number :
DNM-2L
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 set /month
Delivery Time :
60 days
Packaging Details :
standard export packing
Name :
Two Lanes Dinner Napkin Machine
Fold type :
1/8 1/6 book fold
Napkin size :
406*380mm
Fold style :
1/6 1/8
Speed :
1000 pc/min
Printing :
two colors
Description

Two Lanes Dinner Napkin Machine, Book Fold Tissue Paper Folding Machine 2 Colors

Application

This Two Lanes Dinner Napkin Machine, Book Fold Tissue Paper Folding Machine 2 Colors is mainly used to automatically fold, emboss, print, cut and count 1/8 fold dinner napkins, 1/6 book fold dinner napkins, lowfold dispenser napkin, nonwoven airlaid napkins and MG paper napkins etc. It adopts vacuum folding style. The mainly function of this machine is to manufacture plain, embossed and LOGO printed and laminated dinner tissue paper napkins. It has 2 lanes output and can run at very high speed up to 2000 sheets per minute. It is an ideal equipment to manufacture away-from-home tissue paper products.

Advantage:

1 Two lanes

2 high speed up to 2000 sheet/min

3 Embossed and printed and laminated

4 Two colors printing

5 vacuum fold 1/8 book fold

Technical parameters

Model DNM-2L
Output type 2 lanes
Folding speed 2000 piece/min, depending on the paper quality and napkin size.
Raw paper

13-20g/m2 2-ply, 16-45g/m2 1-ply, wooden pulp paper or nonwoven airlaid.

Other sizes please specify.
Jumbo roll size ≤ 1520mm x Φ1200mm (Depends on your napkin size, customized)
Napkin unfolded size 406mm x 380mm or Customized.
Napkin folded size

102mm x 190mm

One size is fixed. One napkin size is adjustable, by paper roll width.
Folding type

Vacuum folding

1/8 1/6 fold.
Embossing unit

1- Steel to paper(wool), Male to female. (Steel to steel is available.)

2- Embossing pattern can be any LOGO, brand name, flowers etc.

3- Embossing pattern can be customized by client or recommended by us

4- Controlled by screws, mechanical pressing type. Cylinder type is optional.
Printing unit

1- Flexo printing type.

2- Printing colors customized up to 8 colors.

3- Printing Logo is changeable. You just need to change the Printing Rubber only.

4- Anilox printing roll.

5- Printing roll is adjustable.

6- Ink printing system to be negotiated.

E. Folding Section

1. Unfolded size: 33x330mm

2. Folded size: 82x165mm

3. Fold type: 1/8 1/6 fold and mechanical fold.

4. Synchronizer for feeding paper

5. The gap between 2 folding cylinders can be adjustable to fit for papers of different gsm and different quality.

6. With 4lanes output delivery.

7. Capacity: about 400-500 piece/min/lane x 2lanes = 1000 piece/min total, depending on paper quality, gsm and workers operation.

8. With automatic counting unit. With single tissue pop up every count.

9. Automatic counting function: counting range: 0-9999 sheet per count, adjustable.

C. Control system

1. Controlled by Taiwan DELTA inverter, NOT like others using inferior buttons which is bad.

2. With variable frequency speed control motor, NOT like others use electric magnetic speed regulation motor which is bad.

3. With alarm system when the machine starts or paper breaks or emergency stops.

4. With JOG function.

5. With emergency stop function.

6. With auto sensors for detecting paper breaks or used up. Machine will automatically stop if paper breaks or used up.

7. Famous brand motor.

8. Power: 7.5Kw for main motor, 11kw for vacuum pump (3-phase 380V 50Hz or customized)

9. Pressure: 0.5MPa.

10. Machine size: 7x2x2(M)

Free spare parts

1. Plastic tuckers. 4pcs

2. Band saws 4pcs

3. Timing belt 1 pc each type

4. tool kit

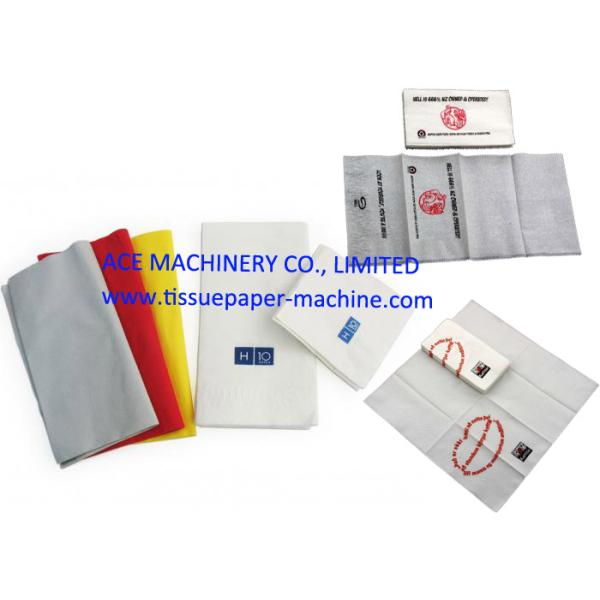

Products made by this Two Lanes Dinner Napkin Machine, Book Fold Tissue Paper Folding Machine 2 Colors:
