Sinotruk Jinan Fuqiang Power 200kw Natural Gas Generator T12 with Customized Request
Sinotruk Jinan Fuqiang Power 200kw Natural Gas Generator T12 with Customized Request
Sinotruk Jinan Fuqiang Power 200kw Natural Gas Generator T12 with Customized Request
Sinotruk Jinan Fuqiang Power 200kw Natural Gas Generator T12 with Customized Request
Sinotruk Jinan Fuqiang Power 200kw Natural Gas Generator T12 with Customized Request
Sinotruk Jinan Fuqiang Power 200kw Natural Gas Generator T12 with Customized Request
Sinotruk Jinan Fuqiang Power 200kw Natural Gas Generator T12 with Customized Request
Sinotruk Jinan Fuqiang Power 200kw Natural Gas Generator T12 with Customized Request
Sinotruk Jinan Fuqiang Power 200kw Natural Gas Generator T12 with Customized Request
Sinotruk Jinan Fuqiang Power 200kw Natural Gas Generator T12 with Customized Request
Sinotruk Jinan Fuqiang Power 200kw Natural Gas Generator T12 with Customized Request
Sinotruk Jinan Fuqiang Power 200kw Natural Gas Generator T12 with Customized Request
Specifications
Model NO. :
T12
Standard :
Standard
Transport Package :
Wooden Cases
Specification :
no
Trademark :
sinotruk fuqiang
Origin :
Chins
HS Code :
84099990
Supply Ability :
50000
After-sales Service :
Avaivable
Warranty :
1500 Hours
Output Type :
DC
Gas Source :
Gas
Certification :
ISO9001
Power :
50-200kW
Customization :
Available | Customized Request
Place of Origin :
china
MOQ :
1
Price :
10-1000
Packaging Details :
Wooden box and carton packaging
Delivery Time :
15 days
Payment Terms :
TT,western
Description


Genset
Model

50Hz,cosφ=0.8, 400/230V,3P,4W

Gas Engine


Alternator

Overall Size(mm)


Gross
Weight
(kg)


Rated Power(KW/KVA)


Standby
power(KW/KVA)

Model


Rated Power(KW)

T120GF-S

120/150

132/165

WT615D-1

138

:
Standard
configuration:
Xing Nuo
:


Option:
Stamford
Faraday

2850*970*1700

2200

T140GF-S

140/175

154/192

WT615D-3

161

2850*970*1701

2200

T150GF-S

150/187

165/206

WT615D-5

173

2850*970*1702

2200

T180GF-S

160/200

176/220

WT615D-7

185

2850*970*1703

2200

T140GF-S

180/225

198/248

T12-1

220

2880*1000*1800

2600

T200GF-S

200/250

220/275

T12-2

240

2880*1000*1801

2600

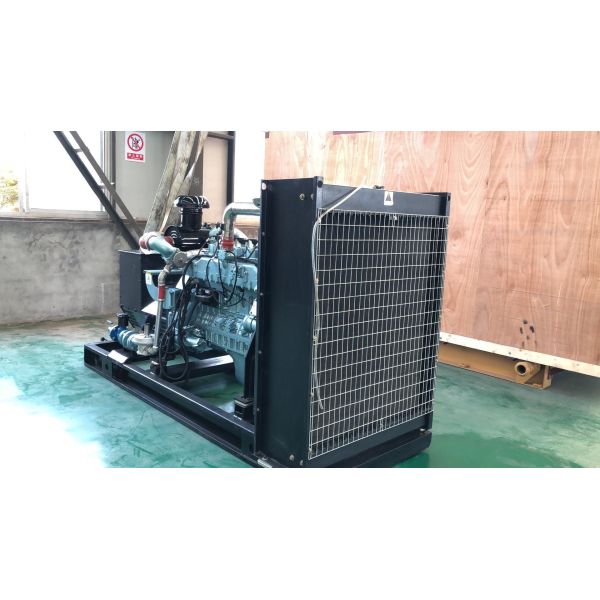

Detailed Photos

Sinotruk Jinan Fuqiang Power 200kw Natural Gas Generator T12 with Customized Request

Company Profile

Jinan Guohua Green Power Equipment Co.,Ltd(JNGH),is a high-tech sales &service company of Jinan Diesel Engine Co., Ltd. Established in 2010,JNGH has formed a complete system in sales and after-sales of 190 series engine(jichai brand:6L190,8V190,12V190.16V190)

Our Advantages

Early stage:Consultation,designation, supply and erection of engine-based power plants,including diesel generator,natural gas generator,coal gas generator and biogas generator.
Mid stage:Parts supply of jinan diesel engine(jichai/chidong brand).JNGH has two warehouses.One located in Jinan which supply the domestic north and south market.One located in Xinjiang province which supply the west market.Thus could delivery parts fast and guarantee the quality.
Later stage:JNGH also offer engine overhaul and maintenance service.With experienced engineer and professional skills,the problems could be easy solved.Not only the domestic China,Ghana,Kazakhstan,Vietnam and Myanmar also could see the trace of JNGH.
Later stage:Overhaul and maintenance service offered.

Our product
Model of genset Model of engine Rated Power(KW/KVA) Rated Voltage(V) Rated Frequency(HZ) Overall Dimension L*B*H(mm) Net weigh(KG) Fuel
700GF-TK2 A12V190ZLT-2 700/875 400/230 50 5620*2180*2520 16000 natural gas
800GF-W AD12V190ZLW-2 800/1000 400/230 50 7040*2335*2520 20200 coal mine gas
1000GF-NK AD12V190ZLZ 1000/1250 400/230 50 5375*2312*2776.5 16500 biogas
1000GF-TK1 AD12V190ZLT1 1000/1250 400/230 50 5375*2312*2776.5 16500 natural gas
1000GF-TK2 AD12V190ZLT2 1000/1250 400/230 50 5375*2312*2776.5 16500 natural gas
1000GFZ-TK2 AD12V190ZLT3 1000/1250 400/230 50 5375*2312*2776.5 16500 natural gas
1000GF-T AD12V190ZLT2 1000/1250 400/230 50 6660*2335*2520 19800 natural gas
1000GF-T3 AD12V190ZLT2 1000/1250 400/230 50 6660*2335*2520 19800 natural gas
1000GF-T4 AD12V190ZLT2 1000/1250 400/230 50 6660*2335*2520 19800 natural gas
1100GF-WK H16V190ZLW-2 1100/1375 400/230 50 5920*2180*2200 17200 coal mine gas
Main specification for gas engines
Model Rated Power(KW) Rated Speed(r/min) Compression ratio Specific heat consumption(kj/kw.h) Specific oil consumption(g/kw.h) Overall Dimension L*B*H(mm) Net weigh(KG) FUEL
AD12V190ZLT1 1100 1500 12:01 ≤11000 ≤1.6 2979*2312*2471 9300 natural gas
AD12V190ZLT2 1100 1500 10:01 ≤9500 ≤1.0 2979*2312*2471 9300 natural gas
AD12V190ZLT3 1100 1500 10:01 ≤9500 ≤1.0 2979*2312*2471 9300 natural gas
AD12V190ZLW-2 900 1000 10:01 ≤9500 ≤1.0 2979*2312*2471 9300 coal mine gas
H12V190ZLT 1500 1500 12:01 ≤9500 ≤1.0 3830*1792*2315 9300 natural gas
H16V190ZLT-2 1200 1000 10:01 ≤9500 ≤1.0 3692*2516*2405 13000 natural gas
H16V190ZLW-2 1200 1000 10:01 ≤9500 ≤1.0 3692*2516*2405 13000 natural gas
