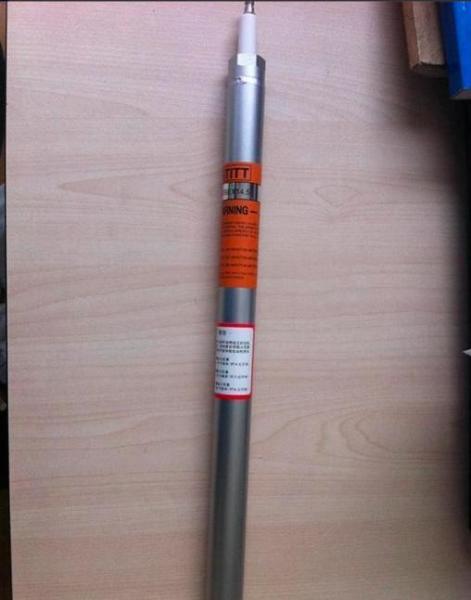

Water Cooling Jichai 12V190 Pre-Combustion Chamber Spark Plug for Cooling Method
Water Cooling Jichai 12V190 Pre-Combustion Chamber Spark Plug for Cooling Method
Water Cooling Jichai 12V190 Pre-Combustion Chamber Spark Plug for Cooling Method
Water Cooling Jichai 12V190 Pre-Combustion Chamber Spark Plug for Cooling Method
Water Cooling Jichai 12V190 Pre-Combustion Chamber Spark Plug for Cooling Method
Water Cooling Jichai 12V190 Pre-Combustion Chamber Spark Plug for Cooling Method
Water Cooling Jichai 12V190 Pre-Combustion Chamber Spark Plug for Cooling Method
Water Cooling Jichai 12V190 Pre-Combustion Chamber Spark Plug for Cooling Method
Water Cooling Jichai 12V190 Pre-Combustion Chamber Spark Plug for Cooling Method
Water Cooling Jichai 12V190 Pre-Combustion Chamber Spark Plug for Cooling Method
Specifications
Model NO. :
12V190
HS Code :
8409999000
Supply Ability :
50000pieces/Year
Output Type :
DC
Cooling Method :
Water Cooling
Installation Method :
Fixed
Transport Package :
Wooden Cases
Customization :
Available | Customized Request
Place of Origin :
china
Certification :
ISO9001
MOQ :
1
Price :
10-1000
Packaging Details :
Wooden box and carton packaging
Delivery Time :
15 days
Payment Terms :
TT,western
Description
Water Cooling Jichai 12V190 Pre-Combustion Chamber Spark Plug for Cooling Method
Water Cooling Jichai 12V190 Pre-Combustion Chamber Spark Plug for Cooling Method
Water Cooling Jichai 12V190 Pre-Combustion Chamber Spark Plug for Cooling Method


Water Cooling Jichai 12V190 Pre-Combustion Chamber Spark Plug for Cooling Method Product details:
Technical parameters of 500KW gas generator set 12V190
Unit model: 500GF-WK2
Rated power: 500KW
Rated voltage: 400V
Rated current: 902A
Rated frequency: 50Hz
Rated power factor: COSφ=0.8 (hysteresis)
Excitation mode: brushless
Wiring mode: star three-phase four-wire
Start mode: DC 24V electric start
Control mode: remote electric control
Connection mode: elastic coupling
Cooling method: semi-open double temperature forced water cooling
Lubrication mode: pressure lubrication and splash lubrication
Oil brand: Kunlun 15W40CD special oil or equivalent technical specification lubricating oil
Crankshaft steering (viewed from the flywheel end) : counterclockwise
Dimensions: 5120×2040×2780
Unit quality: 12500kg

Generator Technical Parameters:
Motor model 1FC6 455-6LA42
Rated capacity 625KVA
Rated voltage 400V
Rated current 902A
Rated frequency/speed 50Hz/1000r/min
Rated power factor 0.8(hysteresis)
Brushless excitation mode (built-in AVR, adjustable DROOP)
Wiring mode star three-phase four-wire
Insulation class F
Protection level IP23
Support structure double side single bearing
No-load voltage adjustment range is 95 ~ 105%

Gas quality requirement:
Gas engine fuel is mainly natural gas, but also can use oil field associated gas, liquefied petroleum gas, biogas and other flammable gases.The gas used should be dried and dehydrated to free water, crude oil and light oil, and its low calorific value should not be less than 31.4 MJ /m³, the total sulfur content should not be more than 480mg/m³, and the hydrogen sulfide content should not be more than 20mg/m³.In addition, the air source pressure should be in the range of 0.05~0.30MPa.
Water Cooling Jichai 12V190 Pre-Combustion Chamber Spark Plug for Cooling Method


COMPANY INTRO:

Official website: jinanguohua.en.made-in-china.com




Jinan Guohua Lveng Power Equipment Co., Ltd. was established on January 15, 2010.The business scope includes electrical equipment, barrel lubricating oil sales;Technical development, design, sales, leasing, repair, maintenance and technical services of gas engines, combustible gas generator sets, diesel engines and diesel generator sets;Technical development, design and sales of the above machine spare parts and required auxiliary materials, mechanical equipment, instruments and meters, power station equipment, industrial monitoring system equipment;Import and export business.(For projects that must be approved according to law, business activities can only be carried out after being approved by relevant departments.) Jinan Guohua Lveng Power Equipment Co., Ltd. has one branch.

After nearly ten years development, the company has formed a complete ,mature sales and maintenance service system. At present, the company has set up a warehouse in Jinan and XinJiang, covering an area of more than 1,000 square meters, And the company also has 2000 square meters of engine overhaul and stalling workshop in jinan, with assets of 30 million yuan, more than50 employees. At present, the company has obtained SGS general notary certificate, 190 series engine agent certificate.

The company's sales network has been continuously expanded. It has established stable supply and marketing relationships with clients from 32 provinces, municipalities and autonomous regions in China.Also the products are sold overseas and have been sold to 20 countries including Asia, Africa, America, and the Commonwealth of Independent States.
Companies adhere to the "quality first, scientific management, customer first, integrity-based" purposes, which are in accordance with the "integrity, pragmatic, pioneering, innovative" spirit of enterprise, so as to meet the needs of users with first class service.

Warmly welcome friends from all walks of life to review, cooperate and create brilliance
