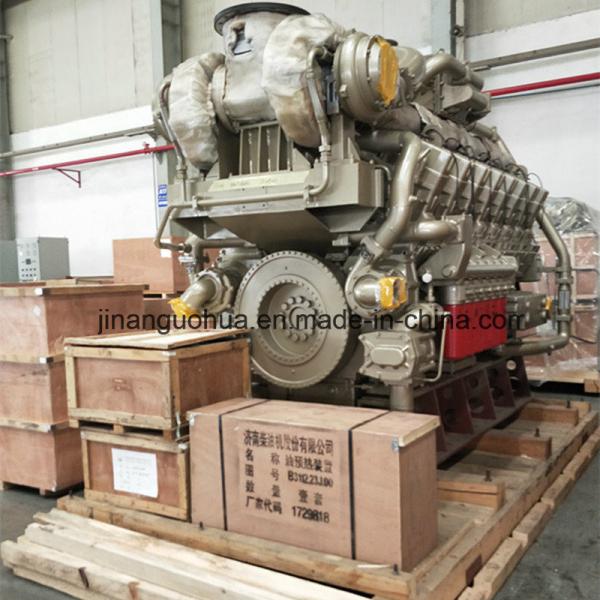

Jichai Chidong H16V190zl Water-Cooled Four-Stroke Diesel Engine for Jinan Jichai
Jichai Chidong H16V190zl Water-Cooled Four-Stroke Diesel Engine for Jinan Jichai
Jichai Chidong H16V190zl Water-Cooled Four-Stroke Diesel Engine for Jinan Jichai
Jichai Chidong H16V190zl Water-Cooled Four-Stroke Diesel Engine for Jinan Jichai
Jichai Chidong H16V190zl Water-Cooled Four-Stroke Diesel Engine for Jinan Jichai
Jichai Chidong H16V190zl Water-Cooled Four-Stroke Diesel Engine for Jinan Jichai
Jichai Chidong H16V190zl Water-Cooled Four-Stroke Diesel Engine for Jinan Jichai
Jichai Chidong H16V190zl Water-Cooled Four-Stroke Diesel Engine for Jinan Jichai
Jichai Chidong H16V190zl Water-Cooled Four-Stroke Diesel Engine for Jinan Jichai
Jichai Chidong H16V190zl Water-Cooled Four-Stroke Diesel Engine for Jinan Jichai
Jichai Chidong H16V190zl Water-Cooled Four-Stroke Diesel Engine for Jinan Jichai
Jichai Chidong H16V190zl Water-Cooled Four-Stroke Diesel Engine for Jinan Jichai
Specifications
Model NO. :
H16V190
Number of Strokes :
Four-Stroke
Cylinder Arrangement Form :
V
Number of Cylinders :
12-Cylinder
Type :
Combustion Engine
Transport Package :
Wooden Cases
Specification :
9300KG
Trademark :
Jichai chidong
Origin :
China
HS Code :
8408201090
Supply Ability :
50000pecises/Year
Ignition Mode :
Ignition
Speed :
High Speed
Cooling Cylinder :
Water-Cooled
Intake Pressure Impulse :
Supercharged
Piston Movement :
Reciprocating
Fuel :
Diesel
Customization :
Available | Customized Request
Place of Origin :
china
Certification :
ISO9001
MOQ :
1
Price :
10-1000
Packaging Details :
Wooden box and carton packaging
Delivery Time :
15 days
Payment Terms :
TT,western
Description
Jichai Chidong H16V190zl Water-Cooled Four-Stroke Diesel Engine for Jinan Jichai
series 6000 diesel engines
Model 12 hour power(kw)/speed(r/min) Continuous power(KW)Speed(r/min) Specific fuel consumption(g/kw.h) Specific oil consumption(g/kw.h) Overall Dimension L*B*H(mm) Net weigh(KG)
H12V190ZL 1740/1500 1560/1500 ≤200 ≤1.0 3234*1140*2286 9500
H12V190PZL 1740/1500 1560/1500 ≤200 ≤1.0 5417*3145*3174 13700
H12V190ZL-1 1400/1200 1260/1200 ≤200 ≤1.0 3234*1140*2286 9500
H12V190PZL-1 1400/1200 1260/1200 ≤200 ≤1.0 5417*3145*3174 13700
H12V190ZL-2 1160/1000 1040/1000 ≤200 ≤1.0 3234*1140*2286 9500
H12V190PZL-2 1160/1000 1040/1000 ≤200 ≤1.0 5417*3145*3174 13700
H16V190ZL 2400/1500 2160/1500 ≤200 ≤1.0 3525*2060*2331 13000
H16V190ZL-2 1300/1000 1170/1000 ≤200 ≤1.5 3880*2080*2540 13700
Main technical data
No. and arrangement of cylinders:12,60.Vee
Type:Four stroke,water cooled,turbocharged and aftercooled,direct injection
Bore:190mm
Stroke:215mm
Total displacement:73.15L
Compression ration:14.5:1
Direction of rotation:Counter-clockwise engine without R,clockwise engine with R in the model(facing to flywheel)
Starting method:Air motor or electric motor
Lubricating method:Pressure and splash lubrication
Jichai Chidong H16V190zl Water-Cooled Four-Stroke Diesel Engine for Jinan Jichai
Jinan Guohua Green Power Equipment Co.,Ltd(JNGH),is a high-tech sales &service company of Jinan Diesel Engine Co., Ltd. Established in 2010,JNGH has formed a complete system in sales and after-sales of 190 series engine(jichai brand:6L190,8V190,12V190.16V190) after eight years experience.
Main business scope:
Early stage:Consultation,designation, supply and erection of engine-based power plants,including diesel generator,natural gas generator,coal gas generator and biogas generator.
Jichai Chidong H16V190zl Water-Cooled Four-Stroke Diesel Engine for Jinan Jichai
Mid stage:Parts supply of jinan diesel engine(jichai/chidong brand).JNGH has two warehouses.One located in Jinan which supply the domestic north and south market.One located in Xinjiang province which supply the west market.Thus could delivery parts fast and guarantee the quality.
Jichai Chidong H16V190zl Water-Cooled Four-Stroke Diesel Engine for Jinan Jichai
Later stage:JNGH also offer engine overhaul and maintenance service.With experienced engineer and professional skills,the problems could be easy solved.Not only the domestic China,Ghana,Kazakhstan,Vietnam and Myanmar also could see the trace of JNGH.
Jichai Chidong H16V190zl Water-Cooled Four-Stroke Diesel Engine for Jinan Jichai
