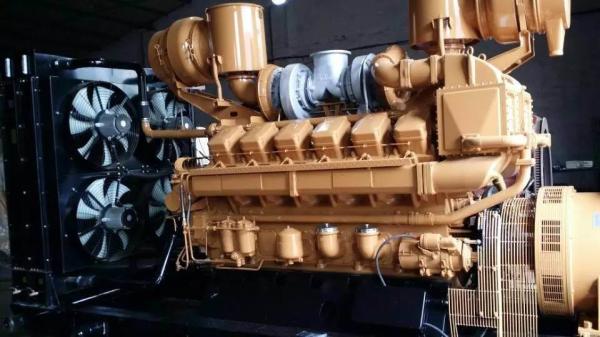

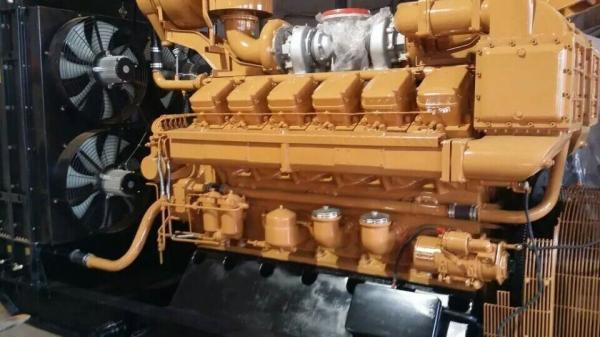

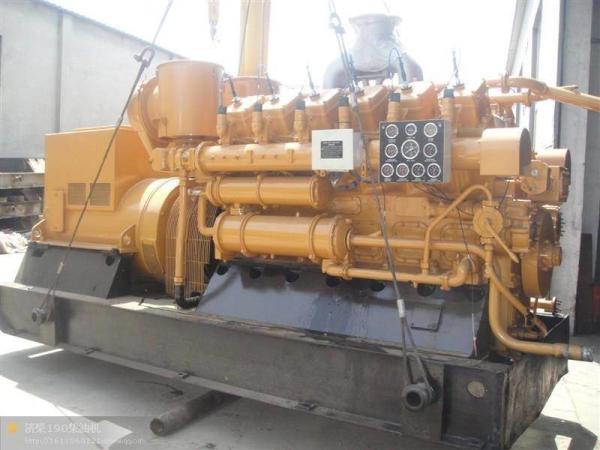

G12V190pzl-3 Jichai V Cylinder Arrangement Drilling Engine for Drilling Industry
G12V190pzl-3 Jichai V Cylinder Arrangement Drilling Engine for Drilling Industry
G12V190pzl-3 Jichai V Cylinder Arrangement Drilling Engine for Drilling Industry
G12V190pzl-3 Jichai V Cylinder Arrangement Drilling Engine for Drilling Industry
G12V190pzl-3 Jichai V Cylinder Arrangement Drilling Engine for Drilling Industry
G12V190pzl-3 Jichai V Cylinder Arrangement Drilling Engine for Drilling Industry
G12V190pzl-3 Jichai V Cylinder Arrangement Drilling Engine for Drilling Industry
G12V190pzl-3 Jichai V Cylinder Arrangement Drilling Engine for Drilling Industry
G12V190pzl-3 Jichai V Cylinder Arrangement Drilling Engine for Drilling Industry
G12V190pzl-3 Jichai V Cylinder Arrangement Drilling Engine for Drilling Industry
G12V190pzl-3 Jichai V Cylinder Arrangement Drilling Engine for Drilling Industry
G12V190pzl-3 Jichai V Cylinder Arrangement Drilling Engine for Drilling Industry
Specifications
Model NO. :
12V190
Number of Strokes :
Four-Stroke
Cylinder Arrangement Form :
V
Number of Cylinders :
12-Cylinder
Type :
Combustion Engine
Transport Package :
Wooden Cases
Specification :
7500
Trademark :
jichai
Origin :
China
HS Code :
8408201090
Supply Ability :
50000pecises/Year
Ignition Mode :
Ignition
Speed :
High Speed
Cooling Cylinder :
Water-Cooled
Intake Pressure Impulse :
Supercharged
Piston Movement :
Reciprocating
Fuel :
Diesel
Customization :
Available | Customized Request
Place of Origin :
china
Certification :
ISO9001
MOQ :
1
Price :
10-1000
Packaging Details :
Wooden box and carton packaging
Delivery Time :
15 days
Payment Terms :
TT,western
Description
G12V190pzl-3 Jichai V Cylinder Arrangement Drilling Engine for Drilling Industry

Product Parameters

series 2000 diesel engines
Model Rated Power(KW/hp) Rated Speed(r/min) Specific fuel consumption(g/kw.h) Specific oil consumption(g/kw.h) Overall Dimension L*B*H(mm) Net weigh(KG)
BG12V190ZL 900/1500 800/1500 ≤209.4 ≤1.6 3160*1770*2400 5300
BG12V190PZL 900/1500 800/1500 ≤209.4 ≤1.6 4374*1740*2400 8100
BG12V190ZL-3 810/1300 730/1300 ≤209.4 ≤1.6 3160*1770*2400 5300
BG12V190PZL-3 810/1300 730/1300 ≤209.4 ≤1.6 4374*1740*2400 8100
G12V190ZL 900/1500 800/1500 ≤209.4 ≤1.6 2692*1560*2070 5300
G12V190PZL 900/1500 800/1500 ≤209.4 ≤1.6 3860*2040*2678 8100
G12V190ZL-3 810/1300 730/1300 ≤209.4 ≤1.6 2692*1560*2070 5300
G12V190PZL-3 810/1300 730/1300 ≤209.4 ≤1.6 3860*2040*2678 8100
G12V190ZL-1 740/1200 660/1200 ≤209.4 ≤1.6 2692*1560*2070 5300
G12V190PZL-1 740/1200 660/1200 ≤209.4 ≤1.6 3860*2040*2678 8100
G12V190ZL-2 600/1000 540/1000 ≤209.4 ≤1.6 2692*1560*2070 5300
G12V190PZL-2 600/1000 540/1000 ≤209.4 ≤1.6 3860*2040*2678 8100
G8V190ZL 600/1500 540/1500 ≤213.5 ≤2.7 1802*1560*2070 4300
G8V190PZL 600/1500 540/1500 ≤213.5 ≤2.7 3280*2040*2678 6750
G8V190ZL-3 510/1300 460/1300 ≤213.5 ≤2.7 1802*1560*2070 4300
G8V190PZL-3 510/1300 460/1300 ≤213.5 ≤2.7 3280*2040*2678 6750
G8V190ZL-1 470/1200 425/1200 ≤213.5 ≤2.7 1802*1560*2070 4300
G8V190PZL-1 470/1200 425/1200 ≤213.5 ≤2.7 3280*2040*2678 6750
G8V190ZL-2 390/1000 350/1000 ≤213.5 ≤2.7 1802*1560*2070 4300
G8V190PZL-2 390/1000 350/1000 ≤213.5 ≤2.7 3280*2040*2678 6750
Main technical data
No. and arrangement of cylinders:12,60.Vee
Type:Four stroke,water cooled,turbocharged and aftercooled,direct injection
Bore:190mm
Stroke:210mm
Total displacement:71.45(47.6)L
Compression ration:14:1
Direction of rotation:Counter-clockwise engine without R,clockwise engine with R in the model(facing to flywheel)
Starting method:Air motor or electric motor
Lubricating method:Pressure and splash lubrication

Company Profile

G12V190pzl-3 Jichai V Cylinder Arrangement Drilling Engine for Drilling Industry

warehouse picture

Our Advantages

Jinan Guohua Green Power Equipment Co.,Ltd(JNGH),is a high-tech sales &service company of Jinan Diesel Engine Co., Ltd. Established in 2010,JNGH has formed a complete system in sales and after-sales of 190 series engine(jichai brand:6L190,8V190,12V190.16V190)

After Sales Service

Main business scope:

Early stage:Consultation,designation, supply and erection of engine-based power plants,including diesel generator,natural gas generator,coal gas generator and biogas generator.
Mid stage:Parts supply of jinan diesel engine(jichai/chidong brand).JNGH has two warehouses.One located in Jinan which supply the domestic north and south market.One located in Xinjiang province which supply the west market.Thus could delivery parts fast and guarantee the quality.
G12V190pzl-3 Jichai V Cylinder Arrangement Drilling Engine for Drilling Industry
Later stage:JNGH also offer engine overhaul and maintenance service.With experienced engineer and professional skills,the problems could be easy solved.Not only the domestic China,Ghana,Kazakhstan,Vietnam and Myanmar also could see the trace of JNGH.
G12V190pzl-3 Jichai V Cylinder Arrangement Drilling Engine for Drilling Industry
