CKY5110Z Good Quality Fast Delivery Vertical Lathe Machine in High Speed
CKY5110Z Good Quality Fast Delivery Vertical Lathe Machine in High Speed
CKY5110Z Good Quality Fast Delivery Vertical Lathe Machine in High Speed
CKY5110Z Good Quality Fast Delivery Vertical Lathe Machine in High Speed
Specifications
Brand Name :
Baili
Model Number :
CKY5110Z
Certification :
iso9001
Place of Origin :
Dalian
MOQ :
1 unit
Price :
usd 40000--80000 per unit
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
15 units per month
Delivery Time :
35--90 days for vertical lathe machine in high speed
Packaging Details :
solid wooden package for vertical lathe machine in high speed
Description :
vertical lathe machine in high speed
lathe model :
CKY5110Z
Max turning diameter :
1000
max.machinng diameter :
1100
hydaulic chuck diameter :
800
Max height of workpiece :
500
max weight of workpiece :
500kgs
Max.cutting force of worktable :
9.8KN.m
Description

CKY5110Z Good Quality Fast Delivery Vertical Lathe Machine in High Speed

CKY SERIES CNC HIGH SPEED FIXED BEAM VERTICAL LATHE
Selected machine tool for automative,bearings,wind power,locomotive,. flanges and motor housing etc industries.
This series cnc high speed fixed beam vertical lathe is designed for strong cutting and achining on casting and forging plates, cylinder parts in automotive, bearings, wind power, locomotive, flanges, motor hoursing etc industry, with many advantages such as high rigidity, multiple combination, easy to set wires, multiple configuration, complete specification, high precision etc.
This lathe machine is equipped with hydraulic spindle and hydraulic chuck(fixture), which could be quickly and convenient to complete the workpiece clamping and accurate positioning according to the different requirement of different mechanical parts.
This lathe machine is an integration of high-tech mechanical,electrical and hydraulic product with many advantages meeting your selection.
Technical parameters:
specification unit CKY5110Z
Max.machining diameter mm 1000
Max.turnign diameter mm 1100
hydraulic chuck diameter mm 800
Max.height of workpieceN mm 500
Max.clamping force of hydkgraulic fixture N 150000
Max.weight of workpieceKN.m kg 500
Max.cutting force of worktable KN.m 9.8
Worktable speed r/min 0-500
Horizontal travel of rail head mm -20-700
Vertical travel of rail head mm 500
cnc rail head cutting force N 5000
horizontal feeding range of rail head mm/min 0.1-1000
horizontal feeding stopes of rial head stepless
vertical feeding range of rail head mm/min 0.1-1000
vertical feeding steps of rail head stepless
fast moving speed of rail head mm/min 3000
horizontal feeding servo motor power Nm 15Nm
vertical feeding servo motor power Nm 15Nm
cnc system optional
spindle motor power Kw 30
Overall dimensions Nm

2800x2500x3600
Lathe Machine weight kg 9000

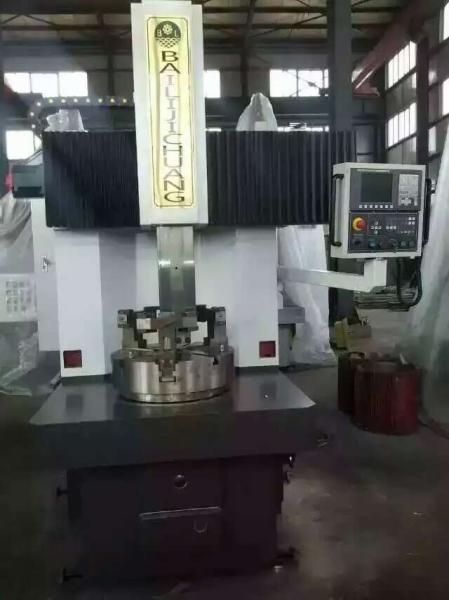

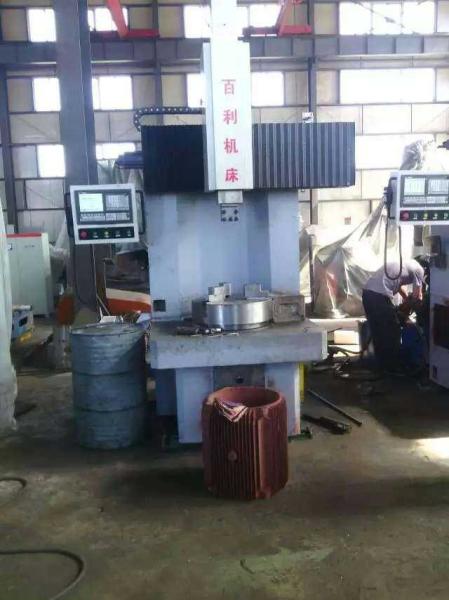

machine tools photos
CKY5110Z Good Quality Fast Delivery Vertical Lathe Machine in High Speed
CKY5110Z Good Quality Fast Delivery Vertical Lathe Machine in High Speed
CKY5110Z Good Quality Fast Delivery Vertical Lathe Machine in High Speed
We are factory directly and the core competencies of our company is high speed vertical lathe machines.
We are star company of manufactguring vertical lathe machine tools since 1990s, we can supply you more suitable and high ratio performance to price lathe machine once you send us the drawings of your parts.
You can send mail to us: audrey.bailijc@hotmail.com or you can contact with us on mobile: 0086-13478609753 same number of wechat and whatapp!
Welcome your visiting to our factory.
