Permanent Cast Alnico 2 3 4 5 8 Bar Magnets for guitar pickups
Permanent Cast Alnico 2 3 4 5 8 Bar Magnets for guitar pickups
Permanent Cast Alnico 2 3 4 5 8 Bar Magnets for guitar pickups
Permanent Cast Alnico 2 3 4 5 8 Bar Magnets for guitar pickups
Permanent Cast Alnico 2 3 4 5 8 Bar Magnets for guitar pickups
Permanent Cast Alnico 2 3 4 5 8 Bar Magnets for guitar pickups
Permanent Cast Alnico 2 3 4 5 8 Bar Magnets for guitar pickups
Permanent Cast Alnico 2 3 4 5 8 Bar Magnets for guitar pickups
Specifications
Brand Name :
YYMAG
Model Number :
2.5x0.5x0.125
Certification :
ISO9001
Place of Origin :
Hangzhou, China
MOQ :
10pcs
Price :
US$1-US$2
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
1000000pcs per month
Delivery Time :
10-25 days
Packaging Details :
Box, magnetic shield packing, standard export packing, according to customer's requirement
Shape :
Bar
Composite :
AlNiCo Magnet
Type :
cast alnico magnet
Application :
Industrial Magnet
Size :
2.5x0.5x0.125 inch
Tolerance :
+/-0.1mm
Material :
Alnico
Grade :
Alnico5,LNG40
Magnetism direction :
Width 0.5 inch
Product name :
Alnico Magnets for Guitar Pickup
Description

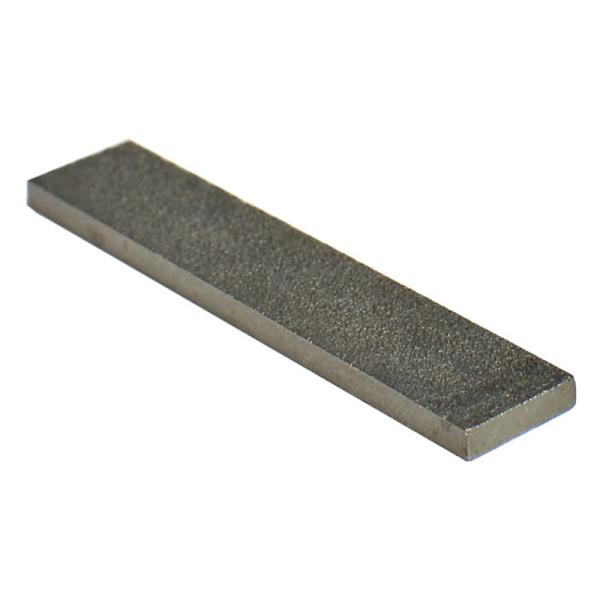

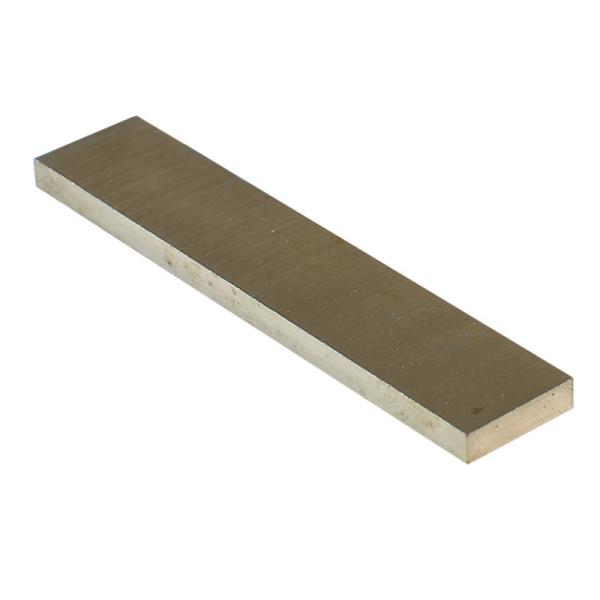

Bar shape magnet for pickups.

Most popular size is 2.5x0.5x0.125"

Magnetic direction: 0.5"

Grade: Alnico 2 3 4 5 8

Surface: Polished or Rough

Permanent Cast Alnico 2 3 4 5 8 Bar Magnets for guitar pickups

Permanent Cast Alnico 2 3 4 5 8 Bar Magnets for guitar pickups

One of our favorite application is magnets for pickups.There are many things to consider if you are looking to optimize your guitar to its full potential, and pickups are arguably one of the most important elements of customization. If you are a skilled designer of pickups looking to create the best sound from your instrument, you have a choice between alnico and ceramic magnets when it comes to magnetic guitar pickups.Shapes: Bar and Rod.

Magnet grade: Alnico 2, 3,4, 5,8

Alnico 2 traces back to days of the 1950 telecasters, this class seems to work well for middle-position pickups. It is known by its sweet, vintage tone, and there seem to be little disadvantages to using it.

Alnico 3 is the weakest of the three grades. It contains less cobalt, a core ingredient in the rest of the Alnico family. Because of the decrease in magnetic pull, it works wonders for neck pickups, where there is the most string vibration.

Alnico 5 is the strongest of the three alnico grades. The tone and response of the magnet is more powerful than its two cousins. This makes it perfect for bridge pickups. Where there is the least vibration. If you want an aggressive, in-your-face kind of sound, Alnico 5 is your best bet.

One of our favorite applications is magnets for pickups. There are two material: Alnico magnet and Ceramic magnet. Alnico magnet is more strong and durable than ceramic magnet.

The grade we can supply are follows:

Alnico: 2,3,4,5,8

Ceramic: 5,8

Magnetic properties

Grade Br(KGs) Hcb(Oe) Bhmax (MGOe) Density(g/cm3)
Alnico2 7.0 600 1.6 7.2
Alnico3 6.5 500 1.2 6.9
Alnico4 8.0 600 4.0 7.3
Alnico5 12.0 600 5.0 7.3
Alnico8 8.0 1380 4.75 7.3
C5 3.8 2600 3.4 4.8
C8 3.9 2900 3.5 4.8

Common sizes as belows, you can choose according to your pickups.

Material Grades Shape OD Length Width Thickness
Alnico 2,3,4,5 Rod 0.187 0.625
Alnico 2,3,4,5 Rod 0.187 0.656
Alnico 2,3,4,5 Rod 0.187 0.688
Alnico 2,3,4,5 Rod 0.187 0.719
Alnico 2,3,4,5 Rod 0.187 0.781
Alnico 2,3,4,5 Rod 0.195 ask
Alnico 2,3,4,5 Block 2.125 0.500 0.125
Alnico 2,3,4,5 Block 2.250 0.500 0.125
Alnico 2,3,4,5,8 Block 2.500 0.500 0.125
Ceramic 5,8 Block 3.500 0.500 0.125

Other sizes are available, please contact us to talk details.

All sizes are inch.

Application:

Permanent Cast Alnico 2 3 4 5 8 Bar Magnets for guitar pickups

Permanent Cast Alnico 2 3 4 5 8 Bar Magnets for guitar pickups
