Name: N42 Grade Neodymium Arc Magnets For DC Brushless Motors
Brand: YYMAG
Price: 0.05 USD

MachineU > China Products > Minerals & Metallurgy > Iron & Iron Products > Magnetic Materials

N42 Grade Neodymium Arc Magnets For DC Brushless Motors

Specifications

Brand Name :

YYMAG

Model Number :

N35

Certification :

ISO,SGS,REACH

Place of Origin :

ZHEJIANG PROVINCE,CHINA

MOQ :

100pcs

Price :

US$0.05-US$5 Per Piece

Payment Terms :

T/T, Western Union, MoneyGram,Paypal

Supply Ability :

1000000 per month

Delivery Time :

25days

Packaging Details :

Standard Exporting Packing, Magnets+ Small Carton+ Green Foam + Big Carton, Carton Size: 33x24x15cm

Materials :

NdFeB Magnet

Grade :

N35-N52(M,H,SH,UH,EH)

Working Temperature :

80-200 Degree Centigrade

Magnetization Direction :

Axial,Diametrical,Thickness,Width

Tolerance :

+/-0.05mm

Coating :

Nickle,Epoxy,Silver,Gold

Shape :

Disc,Arc,Block,Ring or customized

Size :

can be customized

Description

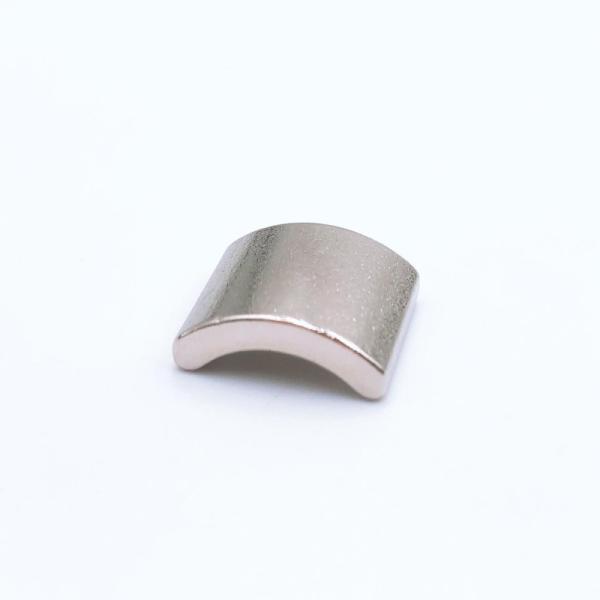

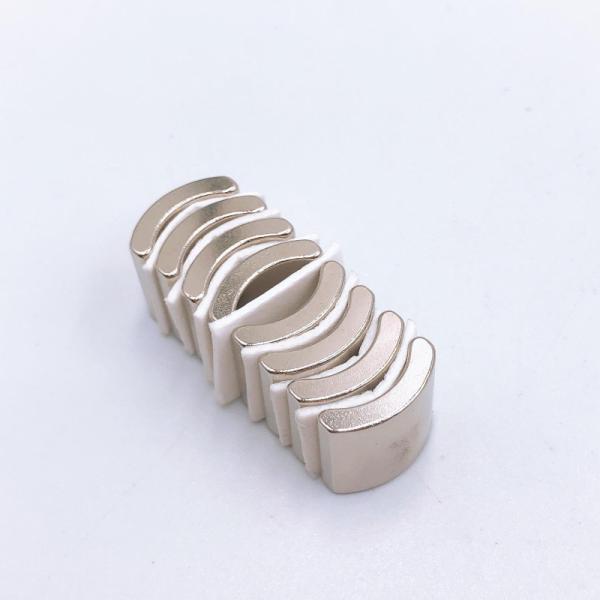

N42 grade Arc segment magnets Neodymium arc magnets for DC Brushless Motors

Neodymium (NdFeB)

Neodymium Iron Boron (NdFeB) magnet has high remanence, high coercive force, high energy product and high performance/cost ratio.
 It is easily formed into various sizes, widely used in motor, sensor, meter, sound device, magnetic separator, automobile,
 aviation, aerospace and other applications. It is prone to corrosion in humid environments, so it usually needs surface treatment according to customers' requirements. The coatings we can offer include: nickel, zinc, gold, silver, epoxy and parylene.

Product Name	N42 grade Arc segment magnets Neodymium arc magnets for DC Brushless Motors
Material	Permanent Neodymium Magnet
Color	Gold,Bright Silver,black epoxy
Shape	Block,Arc,Ring,Disc,Segment
Density	7.3--7.4G/CM3
Grade	N35-N52- NSH/customized
MOQ	100 PCS
Sample	Free
Packing	Magnets+ Small Carton+ Green Foam + Big Carton
Delivery Time	Shipped in 25 days after payment
Used	Micromotor,generater,speaker,sensor,DC motors

Grade

- The grades like N35-N52 could meet your requirement on strong power
 - Standard one like N35 or N38 is okay for your normal applications
 - If you have requirement on the working temperature, please contact us.

Coating

Ni-Cu-Ni, Zn, Epoxy, Parylene, etc.


Magnetic Direction

Packing and Shipping

Standard export package for air and sea shipping.
 usually inner carton -→ outer box (single layer and double layer) -→ pallet and can be packaged per your requests.
 +By Air: all the magnetic should be degaussed and we will use Iron sheet to shield.
 +By Sea: we will place a pallet on the bottom of cartons.

Express (TNT, DHL, FedEx, UPS, etc), Air, Ocean.
a: The weight is under 40Kgs, we recommend to send them in shielding boxes to you by Express.
b: The weight is between 40Kgs-100Kgs, it can be sent by Express or Air.
c: The weight is over 100Kgs, we recommend to send them by Ocean.

About Us

Company name	Hangzhou YangYi magnetics Co., Ltd
Year of establishment	2007
Location	Hangzhou City, Zhejiang Province, P.R. China
