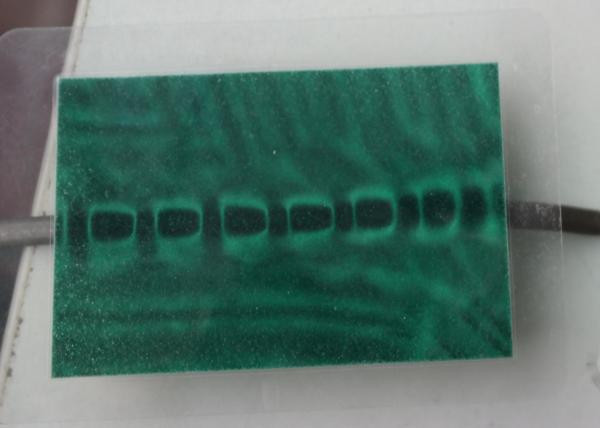

Thin NdFeB Rubber Magnet Rare Earth Magnetic Tape 30x1.05x0.3mm
Thin NdFeB Rubber Magnet Rare Earth Magnetic Tape 30x1.05x0.3mm
Thin NdFeB Rubber Magnet Rare Earth Magnetic Tape 30x1.05x0.3mm
Thin NdFeB Rubber Magnet Rare Earth Magnetic Tape 30x1.05x0.3mm
Thin NdFeB Rubber Magnet Rare Earth Magnetic Tape 30x1.05x0.3mm
Thin NdFeB Rubber Magnet Rare Earth Magnetic Tape 30x1.05x0.3mm
Thin NdFeB Rubber Magnet Rare Earth Magnetic Tape 30x1.05x0.3mm
Thin NdFeB Rubber Magnet Rare Earth Magnetic Tape 30x1.05x0.3mm
Specifications
Brand Name :
MGT
Model Number :
Rubber Magnet-L30xW1.05xT0.3mm
Certification :
ISO9001：2015
Place of Origin :
China
MOQ :
10\50\100PCS
Price :
USD 0.1-10USD/PC
Payment Terms :
T/T
Supply Ability :
50000pcs/ 1 week
Delivery Time :
1-2 weeks
Packaging Details :
Packed in cartons lined in separate bags
Material :
NdFeB Rubber Magnet
Color :
Silver Gray
Coating :
UV Coating
Length :
From 1mm to 1000mm or a roll
thickness :
From 0.1mm to 10mm
Surface magnetic force :
From 1500GS to 2000GS
Description

Thin NdFeB Rubber Magnet Rare Earth Magnetic Tape 30x1.05x0.3mm

We can manufacture products as thin as 0.15-0.25mm

Process flow

  • 1. Use NdFeB magnetic powder, CPE and antioxidant to mix in a closed mixer, and then crush into particles
  • 2. Produced by calendering or extrusion into materials that require thickness and diameter
  • 3. UV varnish or PVC and PET paste
  • 4. Magnetization, testing, packaging

Application

  • The magnetic properties of rubber NdFeB magnets are the highest among the current rubber magnets, which can be widely used in machinery, medical equipment, outdoor advertising display purposes, and can also be used in household appliances and toys.
  • In products with a thickness of 0.2-0.6mm, the surface magnetic field strength can still reach 600-800gs, which is very suitable for wearable applications

Features

  • Anti-drop and broken, good flexibility and bending
  • Wear-resistant, long service life, strong magnetic
  • Good workability, can be cut, punched, and bent
  • Operating temperature range -30 to 85 degrees

Product grade list

Product standards Of Flexible NdFeB Magnet
Version 2020-02-v01
Magnetic Properties
Material Type MGT-RN2 MGT-RN3 MGT-RN3-B MGT-RN4 MGT-RN5 MGT-RN6 MGT-RN7-B MGT-RN7
Br Gs 3000±500 3300±500 4600±500 4300±500 4800±500 5300±500 6200±500 5800±500
mT 300±50 330±50 460±50 430±50 480±50 530±50 620±50 580±50
Hcb Oe 2000±500 2600±500 2400±500 3200±500 3700±500 4200±500 4000±500 4800±500
kA/m 159±40 207±40 191±40 255±40 295±40 334±40 318±40 382±40
Hcj Oe 3000±1000 5800±1000 3000±1000 7800±1000 8500±1000 9000±1000 7000±1000 9000±1000
kA/m 239±80 462±80 239±80 621±80 677±80 716±80 557±80 716±80
(BH)max MGOe 2±0.5 3±0.5 3±0.5 4±0.5 5±0.5 6±0.5 7±0.5 7±0.5
kJ/m3 16±4 24±4 24±4 32±4 40±4 48±4 56±4 56±4
Flux Irreversible Loss % ＜5 ＜5 ＜5 ＜5 ＜5 ＜5 ＜5 ＜5
(αBr) %/℃ -0.11 -0.11 -0.11 -0.11 -0.11 -0.11 -0.11 -0.11
Temperature Coefficient of Br
Max Operating Temp ℃ 80 80 80 80 80 80 80 80
Physical Properties
Density g/cm3 4-4.8 4.5-5 4.5-5 4.8-5.3 4.8-5.3 5-5.5 5.1-5.7 5.1-5.7
Hardess Shore D 30-70
Tensile Strength Mpa >3.5
Elongation % 20-90
Size Range
Thickness(mm) Range 0.2-0.3 0.4-1.0 1.1-2.0 2.1-3 ≥3.1 Remark:This data is only applicable to the general situation, and the specific product is determined according to the delivery specifications
Tolerance ±0.03 ±0.05 ±0.07 ±0.1 ±0.15
Width (mm) Range 1-30 31-100 101-200 201-400 401-450
Tolerance ±0.1 ±0.15 ±0.3 ±0.5 ±1
Length (mm) Range 1-30 31-100 101-200 201-400 ≥401
Tolerance ±0.1 ±0.15 ±0.3 ±0.5 1-5
Technical information can be change without furture notice
