Gas Cylinder Ultrasonic Testing System

Introduction

This system is used for Gas Cylinder testing , generally test longitudinal defects , transverse defects and wall thickness of the main gas cylinder tube and both carved sides .

Testing speed : 0-8m/min

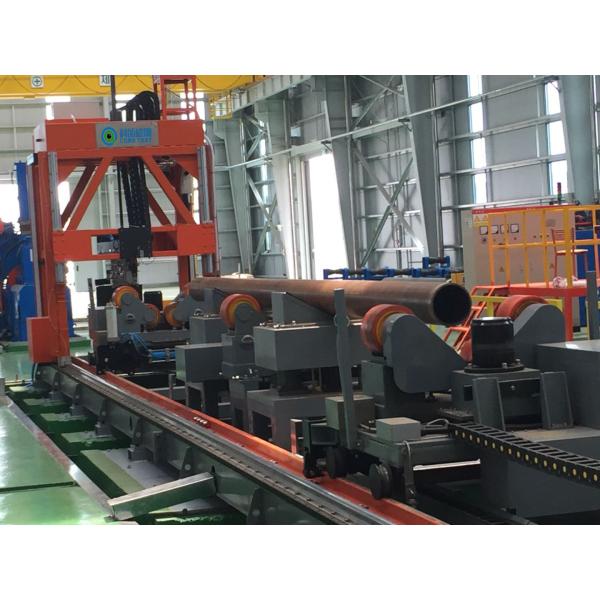

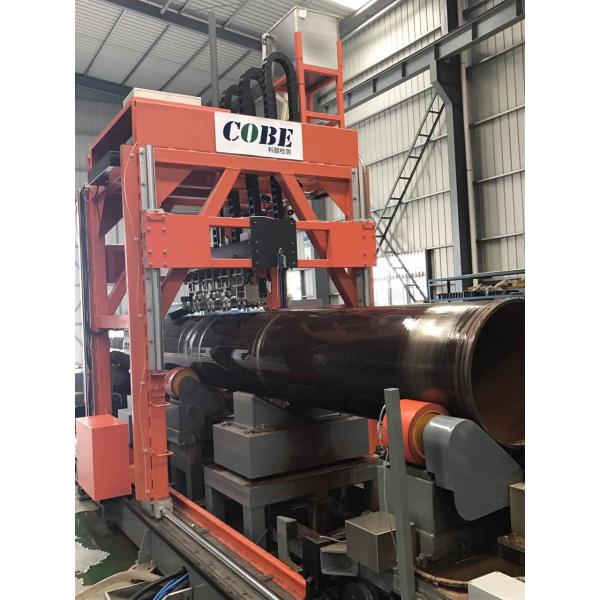

Testing model : Gantry ultrasonic testing , Gas Cylinder rotated ,probes move and scan right and left

Testing object: High pressure gas cylinder tube

Testing material : Carbon steel ,30CrMo,35CrMo,34CrMo4,37Mn

Step : Work piece will be neatly put onto the platform; Work pieces will be put onto the orbit by the mechanical hand ,and then the workpiece willl move to the testing area, then gas cylinder rotated ,probes move right and left ; When find defects, the instrument will automatic alarm, at the same time it will display the flaw signal; record and analyse the test results , automatic sort the qualified and unqualified, and then finish the detection.

Features

Can test longitudinal defects , transverse defects and wall thickness of the main gas cylinder tube and both carved sides according to the customer’s requirement

Application

Gas cylinder and seamless tube manufacturers
