LPX9K High-Pressure Spray Test Chamber for Comprehensive Environmental Simulation

Product Description:

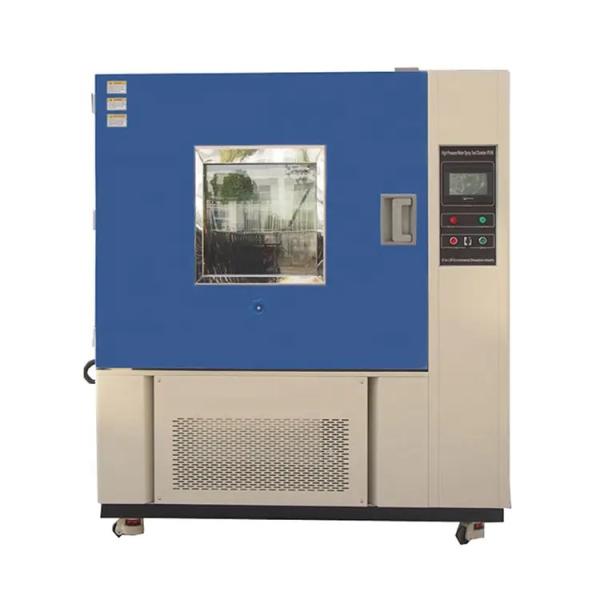

The IPX9K High - Pressure Rain Spray Test Chamber is a specialized and indispensable piece of equipment in the field of product waterproofing assessment. Its primary function is to accurately test the IPX9K waterproof grade of a wide variety of products.

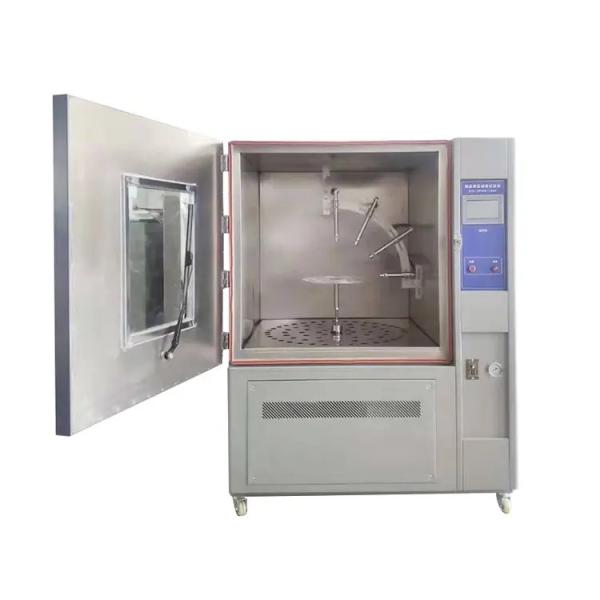

The chamber features a box - type structure, which offers several advantages. It provides a self - contained and enclosed testing environment, minimizing the impact of external factors on the test results. This structure also allows for easy installation and operation, with no significant site restrictions. Whether in a laboratory setting or an industrial production facility, the box - type design can be easily integrated into the existing space.

Specifications:

Internal Dimensions (mm) 1000*1000*1000
Overall Dimensions (mm) Approx 1450*1180*1850 W*D*H

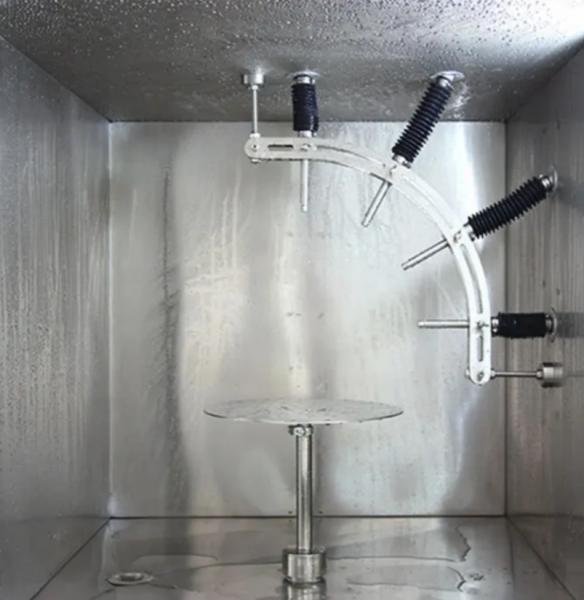

Numbers of Spray Nozzles 4
Water Spray Angle 0°.30°.60°.90°
Spray Adjustable Range 0-200 mm (Horizontal directon) :0-170 mm (Vertical direction)
Test Platform Dlameters 400mm
Test Platform Lift Range 450-680mm (Adjustable)
Function Parameters
Water Pressure 8000-10000 Kpa (adjustable)
Water Flow Rate 14L-16L/min
Water Temperature RT(25℃):80℃
Water Spray lmpact 0.9-1.2N
Testing Platfom Speed 1-10 r.p.m (Adjustable)
Test Time 1208 (30S each position, adjustable)
ElectricalParameters
Power Supply 380V 50HZ
Safety protection function Leakage Protectlon; Water Shortage Prtection; Short Circuit Protection,Phase Sequence Protection, Thermal Overoad Protection
