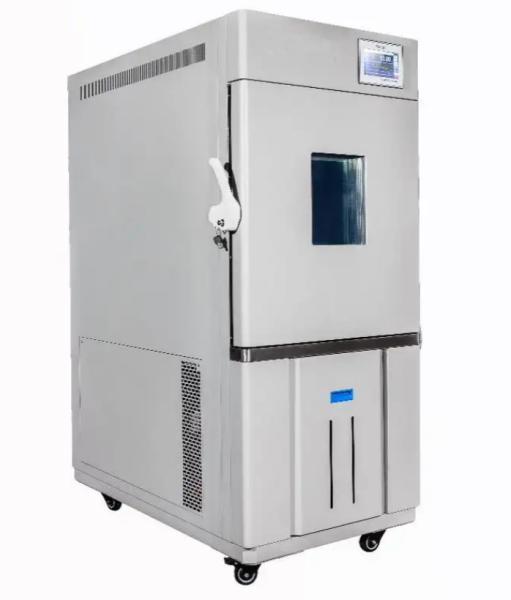

High And Low Temperature Humidity Climatic Test Chamber For Environmental Simulation
High And Low Temperature Humidity Climatic Test Chamber For Environmental Simulation
High And Low Temperature Humidity Climatic Test Chamber For Environmental Simulation
High And Low Temperature Humidity Climatic Test Chamber For Environmental Simulation
Specifications
Brand Name :
Neide
Model Number :
ND-C500
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
100sets/month
Delivery Time :
7-22 work days
Packaging Details :
Wooden Box(standard export packaging)
Voltage :
220V, 380V
Type :
vertical
Power supply :
50Hz
Display :
LCD
Material(chamber) :
polished stainless-steel chamber
Brand :
Neide
Customized :
Welcome
Factory :
Yes
Customer :
More than 500+
Material :
SUS304 or customized
After-sales service :
Yes
Transportation :
By Sea
Reply for probme :
Within 24 hours
Description

High And Low Temperature Humidity Climatic Test Chamber For Environmental Simulation

Product Description:

The High and Low Temperature Humidity Climatic Test Chamber is a state-of-the-art testing equipment designed to simulate extreme environmental conditions, enabling precise evaluation of product performance, reliability, and durability. This chamber is widely used across industries such as automotive, electronics, aerospace, and materials science to ensure products can withstand harsh climatic conditions.

Application:

  1. Automotive Industry

Testing components and systems for performance under extreme temperatures and humidity, such as engine parts, batteries, and electronic control units (ECUs).

2. Electronics and Semiconductors

Evaluating the reliability of electronic devices, PCBs, and semiconductors under varying climatic conditions.

3. Aerospace

Simulating high-altitude and space conditions to test the durability of aerospace components and materials.

4. Materials Science

Assessing the stability and aging properties of materials, including plastics, metals, and composites.

5. Pharmaceuticals and Medical Devices

Conducting stability tests for drugs, vaccines, and medical devices to ensure they remain effective under different environmental conditions.

Major Specification:

Model
ND-C060A
ND-C120A
ND-C250A
ND-C500A
Temperature Range
A:-20℃~150℃；B:-40℃~150℃； C:-60℃~150℃
Temperature Fluctuation
±0.5℃
Temp. uniformity
±2℃
Humidity range
30%RH~95%RH
Humidity Fluctuation
±3%RH
Compactor
Original imported compressor, non-fluorine environmental protection refrigerant
Inner/Exterior Dimensions (mm)(W×D×H)
400×380×450 650×1040×1650
500×400×600 700×1040×1750
600×600×700 800×1160×1850
800×700×900 1000×1210×1980
Shelves
2
2
2
3
Electrical Requirement
A:AC220V 50Hz B:AC220V 50Hz C:AC220V 50Hz
A:AC220V 50Hz B:AC380V 50Hz C:AC380V 50Hz
A:AC220V 50Hz B:AC380V 50Hz C:AC380V 50Hz
A:AC380V 50Hz B:AC380V 50Hz C:AC380V 50Hz
Power Consumption
3750W/4150W/5250W
5950W/7050W/9300W
6000W/7100W/9300W
6650W/7850W/8500W

High And Low Temperature Humidity Climatic Test Chamber For Environmental Simulation

Company Information:

Dongguan Neide Technology Co. Ltd located in Dongguan, Guangdong province with convenient transportation access. We take immense pride in our journey of excellence as a premier provider of top-quality testing equipment. With our unwavering commitment to innovation, we specialize in crafting cutting-edge environmental test chambers and mechanical test machines.

Our extensive range includes temperature and humidity chambers, thermal shock test chambers, tensile testing machines, and vibration test machines. What sets us apart is our proficiency in creating customized testing equipment tailored to your specific needs.

At the heart of our operations lies a dedication to precision and compliance. Our products are engineered to meet and exceed international standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, AMSI, UL, TAPPI, AATCC, and IEC.

This ensures that our solutions not only adhere to industry benchmarks but set new standards of excellence. Our services and products find applications across diverse sectors, including R&D institutions, quality inspection establishments, universities, and electronics and communications industries.

FAQ:

1. What industries and applications is this chamber best suited for?

The chamber is widely used in industries where products are exposed to harsh environmental conditions, such as automotive, aerospace, electronics, and construction. It is essential for testing the durability and reliability of vehicle components, aircraft parts, electronic devices, and building materials. The chamber can also be used to test the protective coatings on various materials, ensuring they can withstand extreme temperature and humidity conditions.
2. How does the chamber handle data collection and analysis? Can it integrate with external systems for further evaluation?
The chamber is equipped with advanced data logging capabilities, allowing you to collect and analyze test data in real-time. The touch screen controller provides detailed information on test parameters, and data can be exported via USB or network interfaces for further analysis using external software. The chamber also supports remote monitoring and control, enabling you to manage tests from a distance and integrate with laboratory information management systems (LIMS).
3. Does the chamber support real-time monitoring and remote access, allowing users to control and monitor tests from a distance?
Yes, the chamber supports real-time monitoring and remote access. It includes a touch screen interface that can be connected to a network, allowing users to control and monitor tests remotely. This feature is particularly useful for high-use environments or when users need to manage tests from different locations. The chamber also supports data logging and remote data retrieval, ensuring that users have access to test results at any time.
4. Can the chamber be integrated with other testing equipment, such as vibration testers or mechanical stress testers, to conduct combined environmental and mechanical tests?
Yes, the chamber is designed to be compatible with other testing equipment. It includes interfaces and connectors that allow it to be integrated with vibration testers, mechanical stress testers, and other devices. This capability enables users to conduct combined environmental and mechanical tests, providing a comprehensive evaluation of product performance under multiple stress conditions.
