Specifications
Place of Origin :
China
Brand Name :
HUATEC
Model Number :
TG8812
Certification :
CE
MOQ :
1 set
Packaging Details :
Carton
Delivery Time :
3-7 working days
Payment Terms :
TT, L/C, Western Union
Supply Ability :
2000pcs per month
Measuring range :
1.2-225mm
Sound velocity :
500-9000m/s
Display :
4digits LCD with EL backlight
Power supply :
4x1.5V AA(UM-3)battery
Dimensions :
120x62x30mm
Weight :
164g
Description

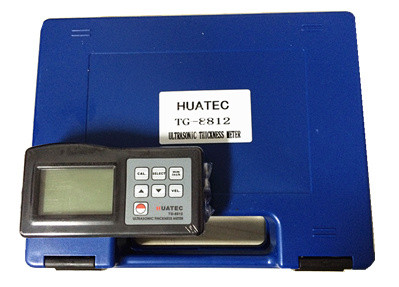

Non Destructive Testing Equipment 0.1mm 500 - 9000m / s Ultrasonic Thickness Gauge TG8812 with RS232 / bluetooth
Application:
TG8812 can be used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. In industries of petroleum, shipbuilding, power station and machine manufacturing.
Description:
Measuring range (metric/imperial): 1.2-225mm, 0.05-9inch
Operating principle: ULTRASONIC
Materials measured: any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other materials
Sound velocity: 500-9000m/s
Lower limit steel pipes: ф15x2.0mm, ф20x3.0mm determined by the transducer
Calibration block: included
Display: 4digits LCD with EL backlight
Resolution: 0.1mm
Accuracy: ±(0.5%H+0.1)
Power supply: 4x1.5V AA(UM-3)battery
Battery indicator: low battery indicator
Operating conditions:0-+45℃(32℉-104℉), ≤90%RH
Dimensions: 120x62x30mm
Weight: 164g (not including battery)
Standard Delivery:
Main unit 1
5M Φ10 Transducer 1
Couplant 1
Carrying case 1
Instruction manual 1
Optional Accessories
1. 6M Φ6mm thin material probe:
measuring range (steel): 1-50mm Operating temperature:-10-+60℃
2. 5M Φ12mm high temperature probe:
measuring range (steel):4-100mm Operating temperature:-10-+300℃
3. Cable and Software for RS232C interface
Non Destructive Testing Tools TG8812 Ultrasonic Thickness MeasurementNon Destructive Testing Tools TG8812 Ultrasonic Thickness Measurement
