Specifications
Place of Origin :
China
Brand Name :
HUATEC
Model Number :
TG-3230
MOQ :
1 set
Packaging Details :
Carton
Delivery Time :
3-7 working days
Payment Terms :
TT, L/C, Western Union
Certification :
CE ISO
Supply Ability :
200pcs per month
Display Resolution :
0.1mm/0.01mm/0.001mm
Sound Velocity Range :
1000 to 9999 m/sec
Measuring Refresh Frequency :
4Hz - 25Hz
Memory Capacity :
500 test values
Multiple Calibrations :
One point or Two Point
Power Source :
2 pcs. 1.5v AA size batteries
Description

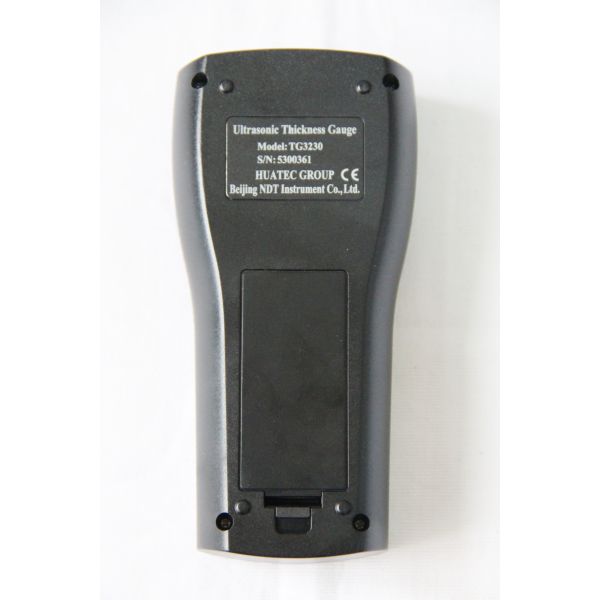

Non Destructive Testing Equipment HIGH PRECISION ULTRASONIC THICKNESS GAUGE TG-3230 in Imperlal And Metric

FEATURES

* High Accuracy And Resolution Up To 0.001mm or 0.0001 inch
* Measuring Ultra Thin Sample As Low As 0.15mm or 0.006 inch
* Display Units:Imperlal And Metric
* Automatic Self Calibration
* Couplant Indicator
* Automatic Power Off Device
* High-Low Limit Alarm
* Lcd Brightness Adjust
* Low Battery Indictor

TECHNICAL SPECIFICATIONS

Measuring Range (for steel)

Interface-Echo Mode:

(I-E or Standard Mode)

1.50mm– 20.0mm

(0.059in – 0.787 in)

Echo-Echo Mode:

(E-E or High Precision Mode)

0.15mm– 10.0mm

(0.006in – 0.394in)

Measuring Accuracy

±0.005mm or 0.0002 inch (if thickness < 3mm)

±0.05mm or 0.002 inch (if thickness < 20mm)

Display Resolution

mm : 0.1 / 0.01 / 0.001

inch : 0.01 / 0.001 / 0.0001

Sound Velocity Range

1000 to 9999 m/sec (0.0394 – 0.3936 inch/ms)

Measuring Refresh Frequency

4Hz in normal mode, up to 25Hz

Memory Capacity

500 test values

Multiple Calibrations

One point or Two Point

Display LCD

42×57mm LCD size with EI backlight and adjustable contrast, font size up to 13.75mm (0.54 inch)

Power Source

2 pcs. 1.5v AA size batteries

Continuous working period

About 200 hours (with backlight off)

Power off

Auto power off if idle for 4 minutes

Operating Temperature

-10 °Cto +50 °C

Unit Size

2.9 W x 5.9 H x 1.26 D inches (73 W x 149 H x 32 D mm).

Weight

200g

STANDARD DELIVERY

Ultrasonic Thickness Gauge TG-3230 Main unit with Calibration block (4.00 mm)

Precision Probe (D11R) with Replaceable Delay Tip

Coupling Paste

Operation Manual

Consumer-Type 2 AA Type Alkaline Battery (3 Volt)

Carrying Case
