Specifications
Place of Origin :
China
Brand Name :
HUATEC
Model Number :
TG4000
MOQ :
1 set
Packaging Details :
Carton
Delivery Time :
3-7 working days
Payment Terms :
TT, L/C, Western Union
Certification :
CE
Supply Ability :
300pcs per month
Display :
128X64 Pixel LCD with backlight
Built-in standard block :
4.00 mm
Velocity range :
1000-9999 m/s
Power :
2 pcs 1.2 V AAA batteries
Outside dimension :
149X73X32 mm
Net Weight :
160g
Description

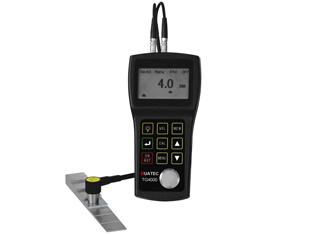

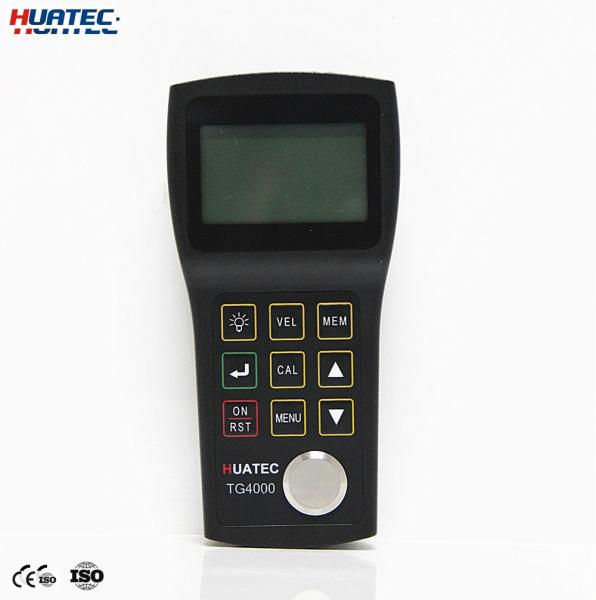

Non Destructive Testing Equipment Through Coating Ultrasonic Thickness Gauge TG 4000 with Velocity Range 1000 - 9999 m/s

TECHNICAL DATA

Display 128X64 Pixel LCD with backlight

Measuring range (in two function modes of Standard mode and through coating mode) Standard mode 0.8 mm-- 300.0 mm in steel depending on the probe. Special request can reach measuring range up to 500mm

Through coating mode 2.5 mm – 18.0 mm (Probe PT-08 and PT-12 )

Tolerance +/-0.05 mm in steel

Display resolution 0.1 mm

Built-in standard block 4.00 mm

Memory 500 datas in 5 groups, memory does not lose after powering off

Velocity range 1000-9999 m/s

Power 2 pcs 1.2 V AAA batteries

Outside dimension 149X73X32 mm

Net Weight 160 g

FEATURES

- Automatic self-calibration

- Couplant indicator

- Automatic power off in 5 minutes and manual power off function

- High-low limit alarm

- LCD brightness adjustable

- Through coating capability

- Low battery indicator

- Two points calibration

- Metric/imperial optional

- Dataview for PC communication

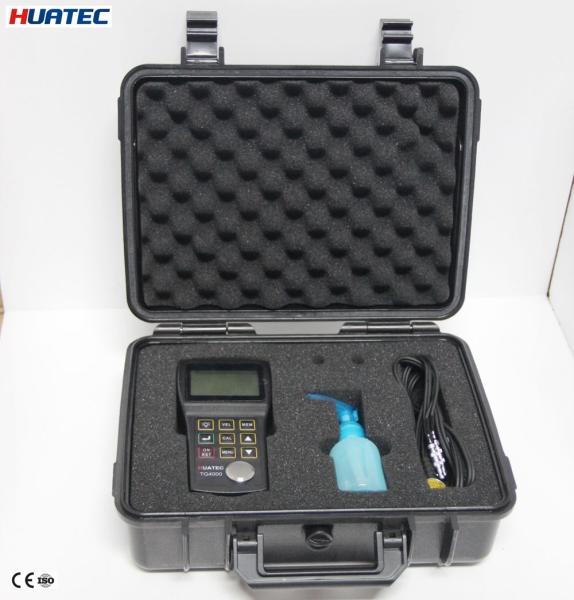

STANDARD DELIVERY

Ultrasonic Coating Thickness gauge TG4000 main unit with through coating mode

Hard carrying case

Couplant bottle

Standard 8 mm, 5 MHzprobe PT-08 with cable (through coating mode)

Dataview CD and communication cable

OPTIONAL ACCESSORIES

4 stepssteel test block

7 stepsmetrics steel test block

5 MHz, 4 mm contact probe

10 MHz, 4 mm, contact probe

5 MHz high temp. probe

Dataview CD and communication cable

Probe cables

Water proof housing
