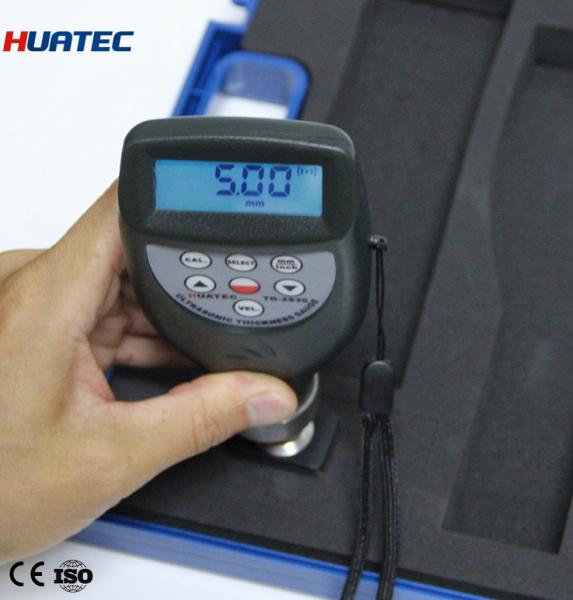

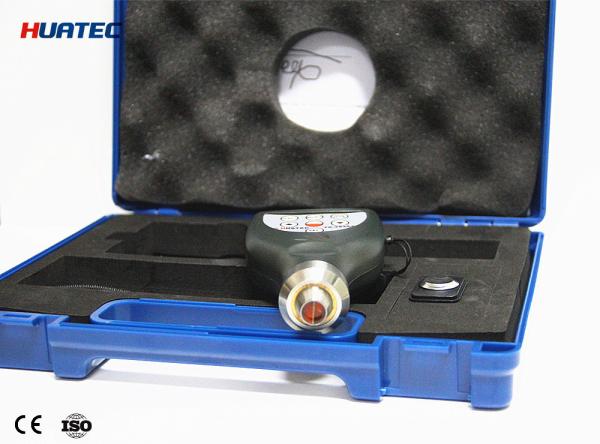

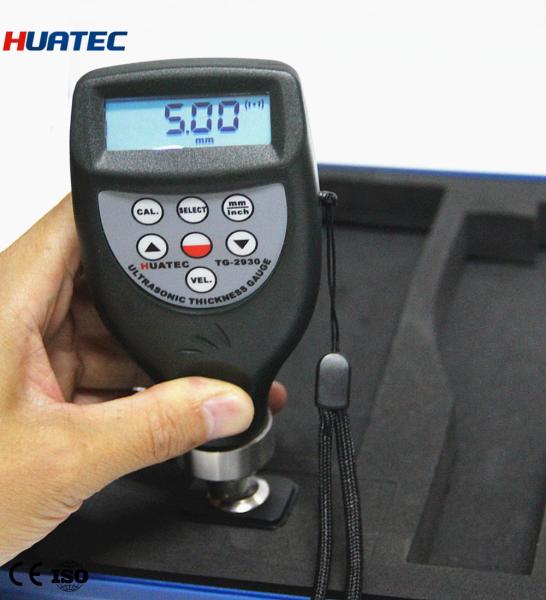

Bluetooth Ultrasonic Wall Thickness Gauge Measurement 1.0 - 200mm ndt instrument
Bluetooth Ultrasonic Wall Thickness Gauge Measurement 1.0 - 200mm ndt instrument
Bluetooth Ultrasonic Wall Thickness Gauge Measurement 1.0 - 200mm ndt instrument
Bluetooth Ultrasonic Wall Thickness Gauge Measurement 1.0 - 200mm ndt instrument
Bluetooth Ultrasonic Wall Thickness Gauge Measurement 1.0 - 200mm ndt instrument
Bluetooth Ultrasonic Wall Thickness Gauge Measurement 1.0 - 200mm ndt instrument
Bluetooth Ultrasonic Wall Thickness Gauge Measurement 1.0 - 200mm ndt instrument
Bluetooth Ultrasonic Wall Thickness Gauge Measurement 1.0 - 200mm ndt instrument
Bluetooth Ultrasonic Wall Thickness Gauge Measurement 1.0 - 200mm ndt instrument
Bluetooth Ultrasonic Wall Thickness Gauge Measurement 1.0 - 200mm ndt instrument
Bluetooth Ultrasonic Wall Thickness Gauge Measurement 1.0 - 200mm ndt instrument
Bluetooth Ultrasonic Wall Thickness Gauge Measurement 1.0 - 200mm ndt instrument
Bluetooth Ultrasonic Wall Thickness Gauge Measurement 1.0 - 200mm ndt instrument
Bluetooth Ultrasonic Wall Thickness Gauge Measurement 1.0 - 200mm ndt instrument
Bluetooth Ultrasonic Wall Thickness Gauge Measurement 1.0 - 200mm ndt instrument
Bluetooth Ultrasonic Wall Thickness Gauge Measurement 1.0 - 200mm ndt instrument
Bluetooth Ultrasonic Wall Thickness Gauge Measurement 1.0 - 200mm ndt instrument
Bluetooth Ultrasonic Wall Thickness Gauge Measurement 1.0 - 200mm ndt instrument
Bluetooth Ultrasonic Wall Thickness Gauge Measurement 1.0 - 200mm ndt instrument
Bluetooth Ultrasonic Wall Thickness Gauge Measurement 1.0 - 200mm ndt instrument
Specifications
Place of Origin :
China
Brand Name :
HUATEC
Certification :
CE
Model Number :
TG-2930
MOQ :
1 set
Packaging Details :
Carton
Delivery Time :
3-7 working days
Payment Terms :
TT, L/C, Western Union
Supply Ability :
500pcs per month
Measuring range :
1.0-200mm, 0.05-8inch
Operating principle :
ULTROSONIC
Sound velocity :
500-9000m/s
Display :
5 digits LCD with EL backlight
Resolution :
0.1mm or 0.01mm
Interface :
RS232C
Description

Non Destructive Testing Equipment Bluetooth Ultrasonic Thickness Gauge Wall for measuring thickness1.0 - 200mm

Application:

Ultrasonic thickness gauge TG-2930 is used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc.in industries of petroleum, shipbuilding, power station, and machine manufacturing.

Specification:

Measuring range (metric/imperial): 1.0-200mm, 0.05-8inch

Operating principle: ULTROSONIC

Materials measured: any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other materials

Sound velocity: 500-9000m/s

Lower limit steel pipes: ф15x2.0mm, ф20x3.0mm determined by the transducer

Calibration block: included

Display: 5 digits LCD with EL backlight

Resolution: 0.1mm or 0.01mm

Accuracy: ±(0.5%H+0.1)

RS232C interface: with RS232C

Power supply: 4x1.5V AAA (UM-4)battery

Battery indicator: low battery indicator

Operating conditions:0-+45℃(32℉-104℉), ≤90%RH

Dimensions: 126x65x27mm

Weight: 81g(not including battery)

Standard Delivery

Main unit 1
5M Φ8 Transducer inbuilt 1
Couplant bottle 1
Carrying case 1
Instruction manual 1

Optional Accessories

Cable and Software for RS232C interface

Bluetooth
