Specifications
Place of Origin :
China
Brand Name :
HUATEC
Model Number :
HXPC-100D
MOQ :
1 set
Packaging Details :
Wooden Case
Delivery Time :
3-7 days
Payment Terms :
TT
Certification :
CE
Supply Ability :
100 pcs per month
Pipe diameter :
Φ219—Φ510mm
Crawler length :
1770mm
Creeping speed :
>15M/min
Creeping distance :
5KM
Max.output voltage :
150KV
Radiation angle :
360°x40°
Focus spot :
1.0×2.0mm
Description

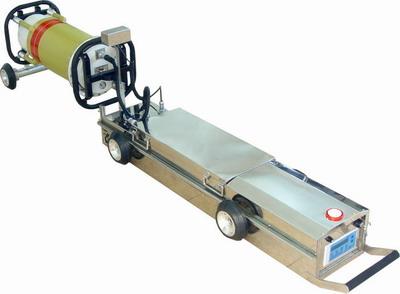

HUATEC 1770mm 120V X - ray Pipeline Crawlers HXPC-100D

The X-ray pipeline crawlers include the special part that can detect the welding line of long pipeline. The X-ray pipeline crawlers have the advantages of high radiographic quality, high imaging sensitivity, low failure rate and high work efficiency. The X-ray pipeline crawlers have differential driving and vibration absorbers. The chassis of the X-ray pipeline crawlers can be moved in the pipeline steadily without off center running and overturning. The X-ray pipeline crawlers can be moved in the pipeline with great efficiency because it is controlled by PLC with protecting it from blocking and under voltage. The X-ray pipeline crawler is easy to be separated into several parts and then to be put together, so it is easy to carry. You can change the exposure parameter and make the X-ray pipeline crawler move, stop and have an exposure with the exterior controlling source. The X-ray pipeline crawlers are easy to operate.

Specification of X Ray Pipeline Crawler

Model Specification

HXPC-100D

Pipe diameter detecting range

Φ219—Φ510mm

Total weight

70KG

Crawler length

1770mm

Size for generator

Φ200×570

Creeping speed

>15M/min

Creeping distance

>5Km

Locating error

±5mm

Max.output voltage

150Kv

Max.outout current

3mA

Climbing ability

22°

Radiation angle

360°*40°

Focus spot

1.0×2.0mm

Batteryenergy

22Ah/120V

Motor power

150W

Exposure time

1s~9h continues adjustable

Delay time before exposure

24s

Humidity

90%

Max.Penetrate thickness

12mm

Operation temperature

-30°~ 70°

The crawler include below parts as standard accessories:

Main vehicle

Lead acid pile: 110V(22Ah)

X-ray machine: 150KV/3mA

Remote controller (Electro magnetic induction type, no source)
