Specifications
Place of Origin :
Beijing
Brand Name :
HUATEC
Certification :
CE ISO GOST
Model Number :
HFE100
MOQ :
1 pc
Packaging Details :
Carton
Delivery Time :
from stock
Payment Terms :
T/T,western union, L/C
Supply Ability :
100pcs per month
Range :
0.1~80%Fe , ( 0.1~110)WRC-number
Precision :
±2%(raneg0.1~30%Fe), ±3%(raneg30~80% Fe)
Operating temperature :
5 ~ 40℃
Batteries :
9v 6F22
Size :
LX WX H 175X100X38mm
Description

Digital Ferrite Meter, Ferrite Analyzer, Ferrite Tester, with LCD Display Ferrite Content

Ferrite meter HFE100 ferrite content measurements

1. Preface

In the chemical industry the stress-bearing members of containers,pipes,reactor vessels and other plant are usually made of austenitic steel or duplex steel or cladding of austenitic chromium-nickel steel．The residual ferrite content must be within a specific range compatible with the mechanical strength requirements or the item concerned．

The HFE100 was developed to facilitate accurate ferrite content measurements On welded seams and cladding items. It gives results that match for the standards of GB/T1954-2008,ISO 8249 and ANSI/AWS A4.2.

2. Feature

● LCD-display,

● Two display modes (SAVE and FREE).

● Two units — Fe% and FN (WRC number).

● Statistics display together with measurements.

● Built-in Rs-232 interface for printer(Option if need)

3. Technical data

The meter is mainly used for the determination of the ferrite content of welded austenitic steel or Duplex or cladding of austenitic chromium-nickel steel weld.

Range 0.1~80%Fe , ( 0.1~110)WRC-number

Precision ±2%(raneg0.1~30%Fe), ±3%(raneg30~80% Fe)

Operating temperature 5 ~ 40℃

Batteries 9v 6F22

Size: LX WX H 175X100X38mm

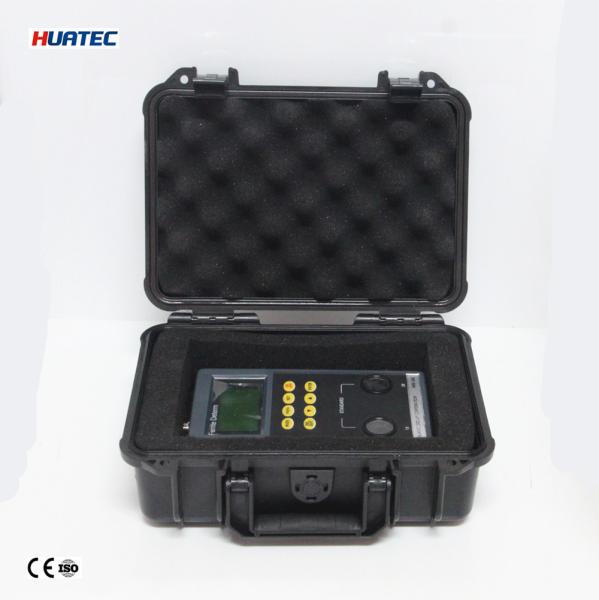

Accessories Main unit, probe, two calibration sample piece, carrying-case , operating manua, certificate.
