Automatic Hot Metallographic Equipment For Mounting Press / Inlaying 220V 50HZ
Automatic Hot Metallographic Equipment For Mounting Press / Inlaying 220V 50HZ
Specifications
Brand Name :
HUATEC
Model Number :
HSM-3
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
T/T, Western Union, L/C
Packaging Details :
Standard export package, wooden case
Specification of Die :
φ25mm φ30mm φ40mm φ50mm
Power supply :
220V 50HZ
Heater power :
1000W
Temperature :
50-3000C
Shortest mounting time :
＜15 minutes
Dimensions :
630×520×520mm
Weight :
120Kg
Description

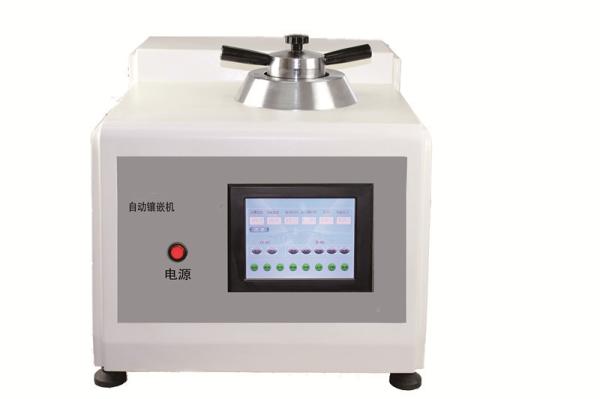

Automatic Hot Metallographic Sample Mounting Press / Mounting Press Equipment / Inlaying Machine HSM-3

HSM-3 Automatic Metallographic Inlaying Machine,all procedures are done automatically. It is used for all types material mounting press (hot mounting press and cold mounting press), and is one of the leading mounting press of the world. With Pre-heating and cooling function, can efficiently short the mounting period.

Product Features

Microcomputer control, all process automatic heating, pressure, cooling

Pre-heating function to heat the demo quickly, save process time

Water-forced cooling,quickly get the sample

Duo-cylinder inside, with the constant pressure while mounting press

Big size touch screen, graphical HMI for friendly and easy operation

Two demos can be done simultaneous, more inefficient

Four kinds diameter mold can be chose, easily change

Main Technical Specifications

Pressure, temperature, heating and cooling time can be set via touch screen

Aboard water cooling system

Aboard hydraulic system, pressure:0~2MPa(product pressure:0~72MPa)Can be done with two demos by once

Model HSM-3
Mold diameter(can be randomly selected 2 types) φ25mm φ30mm φ40mm φ50mm
Mounting temperature 50-3000C
Shortest mounting time ＜15 minutes
Heating power 1000W
Voltage 220V 50Hz
Dimensions 630×520×520mm
Weight 120Kg

Packaging and Shipping

Packaging: Standard export package, wooden case

Delivery: 3-15 days upon receipt of payment,depending on order quantity

Shipping: Can be shipped by sea, air or other means per request.

Our Services:

Warranty: One year

After sales service and maintenance: Lifelong
