Specifications
Brand Name :
Huatec
Model Number :
HPA-500
Certification :
ISO CE GOST
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
100 sets per month
Delivery Time :
3~7 working days
Packaging Details :
in High quality carton
Product name :
Phased Array Ultrasonic Flaw Detector
Model :
HPA-500
Display :
11-inch 800X600 TFT color display
Transducer Ports :
160-pin PA transducer port; Lemo-00 conventional transducer Port
Description

Water-Proof And Oil-Proof Fan-Free And With Touch Screen Portable 64-CH Phased Array Ultrasonic Flaw Detector

Introduction

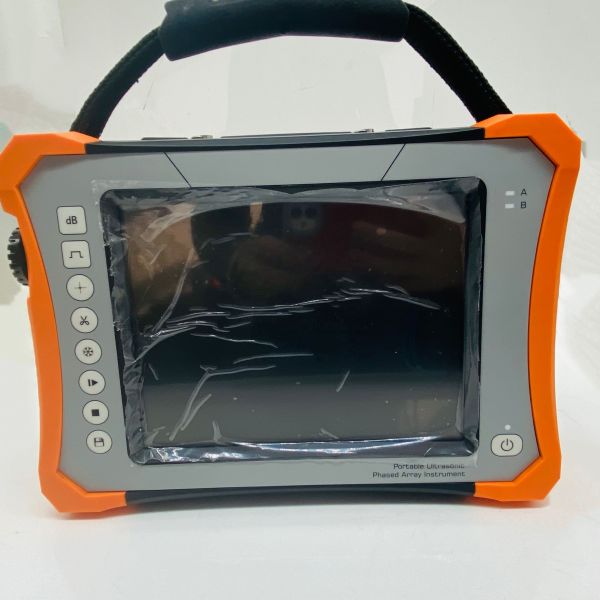

HPA-500 is a portable 64-CH phased array ultrasonic flaw detector originally developed by HUATEC. It is water-proof and oil-proof , fan-free and with touch screen. Whole-process data logging, innovative phased array probes and inspection methods being the advantages, this model guarantees superior performance and support, which makes it among the best of its kind for high C/P ratio.

Main Function

★ File & Entry Management System for Flexible Bridging between setting (Focal Law & Model), Calibration and Inspection

★ Modular Configuration: L-Scan, S-Scan, L-C-Scan, S-C-Scan, Butt-Weld, CrankShaft , Pipeline, TOFD, UT(Conventional),

★ 3D Simulation Model

★ Image analysis

★ Natural Structure of Heat Dissipation

★ Dynamic Depth Focusing (DDF)

★ Smooth Filtering

★ Touch Screen

★ ACG Calibration

2.1 Features

  • 16:64 configuration & 2 conventional channels (HPA-500: plus 2 TOFD channels)
  • The 3D modeling scheme, customizable for one-stop solutions.
  • Image smoothing, for finer presentation
  • Dynamic depth-focusing, for high discernibility at different depths
  • Omnisealed, water&dust -proof but capable of fan-free heat dissipation, over any adversities.
  • Delay precision up to 2.5ns, for evident inhibition on sidelobes so as to enhance vertical and horizontal discernibility, as well as to improve imaging definition.
  • Responsive A/L/S/C scan imaging; Encoder used for continuity of 100%-original-data logging.
  • Supportive of ACG and TCG curves specified by ASME, to solve the problem of uneven energy distribution and poor measurement accuracy.
  • Automatic generation of focal laws according to beam angle, focal length, scan mode, specs of probe and wedge, with optimized angle stepping of S-scan.
  • 3 options of filtering: 0.5-9.6MHz, 2.5-12.9MHz, 3.8-19MHz; Auto Optimization of pulse width according to probe frequency; Excellent noise filtration
  • 11-inch IG & WVGA (800x600) TFT display, touch screen, ensuring nice visual effect outdoors or in the sun.
  • USB port for instant data dump; HDMI port for external display of unlimited size.
  • AC/DC optional, single battery, ensuring 6+ working time.

2.2 Specification

Channel Configuration

Mode PA UT TOFD(HPA-500)
Channel 16:64 2 2

Physical Specification

Display 11-inch 800X600 TFT color display

Transducer

Ports

 I-PEX 160-pin PA transducer port; Lemo-00 conventional transducer Port, for either T-R or T&R

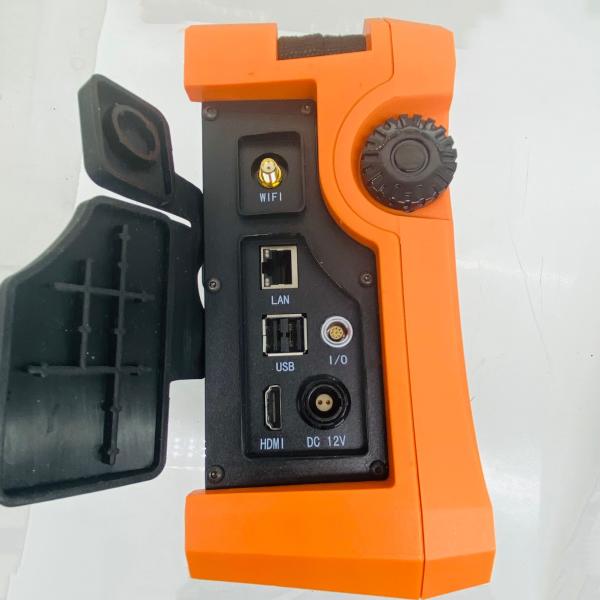

I/O Ports USB2.0 Port: 2(qty)
HDMI; encoder
LAN(Gigabit-NIC);
WIFI
I/O (commissioning)
2D Encoder
Memory

In-Built: 16G RAM+4GB FLASH ;SD card (max to 32G);

External: USB drive
Weight 3.5Kg (with 1 battery)
Dimension 284mm×202mm×95mm
Power Supply AC:100～240V,50～60Hz；DC:12V
Charging (battery) within or individually
Battery Life 6 Hours
Working Power 26W
Language English

Temperature

Conditions

Ambiance:-20℃～50℃

Storage:-20℃～60℃
IP 54

Performance Specification

Mode PA UT TOFD(HPA-500)
PRF 50Hz～10kHz 50Hz～10kHz 50Hz～10kHz
Voltage

Bipolar,

±45～±100V,

with 5V per step

 Negative Square Wave, -75V～-250V, with 25V per step Negative Square Wave, -75V～-250V, with 25V per step
Pulse Width

20ns～800ns,

with 5ns per step

 20～800ns, with 5ns per step 20～800ns, with 5ns per step
Damping 50Ω 80Ω / 400Ω 80Ω / 400Ω
Sampling Rate 125MHz 200MHz 200MHz
Delay PRN 2.5ns N/A N/A
Rx Delay 0～40us N/A N/A
Bandwidth 0.5MHz～19MHz 0.5MHz～15MHz 0.5MHz～15MHz
Gain 0.0～80dB 0.0～110.0dB 0.0～110.0dB
Filter

0.5-9.6MHz;

2.5-12.9MHz;

3.8-19MHz;

Optional

 broadband, narrowband broadband, narrowband
Rectification FW FW RF
Reject 0~80% 0~80% 0~80%
Scan Mode A/L/S/C A A/D
Triggering Encoder N/A Encoder
Scan Line Max 128 N/A N/A
Skew

L-scan:-89°～+89°

S-scan:-89°～+89°

 N/A N/A
Smart-Cal Velocity/Delay/ACG/TCG/Encoder DAC/DGS

Delay/X-Value/PCS/

Wave/Encoder
Range

0.0～1000mm,

min 1mm

 0.0～2000mm 0.0～2000mm

Displaying Delay

(max)

 1000mm 2000mm 2000mm

Pulse Shift

(max)

 N/A 2000mm 2000mm
Unit mm mm mm
Gate A/B A/B A/B
Gate Start Available within the range Available within the range Available within the range
Gate Width Available within the range Available within the range Available within the range
Gate Threshold 0-100% 5-95% 0-100%
Alarm Signal Buzzer / LED Buzzer / LED Buzzer / LED
Spotting Crest / Flank Crest / Flank Crest / Flank
Readout

Amp/Path/

Horizontal/Depth

Amp/Path

/Horizontal/Depth

Amp/Path

/Horizontal/Depth
Resolution 0.5mm 0.1mm 0.1mm

3D Simulation Model

The 3D simulation scheme can be customized to offer one-for-all solutions.

APP Menu

Menu of the software is shown in the manner of APP.

It can be cut down or enlarged accordingly if asked by the users.

Specification Application

1.Common or special welded seam of steel structure, utility boiler, pressure vessel, pipeline, nuclear power infrastructures, watercraft, oil tank, ethylene tube, etc.
2.Railway welded seams, locomotive wheel sets and axles.
3.Aluminum alloy FSW butts and bonding of composites used in aerospace industry.
4.Blades and bolts used in power industry.
5.Cases when there’s not enough space for movement whilst inspection; Cases when conventional UT is preferred.

Packing Details

HPA-500 1pc

PAUT Probe 1pc

PAUT Probe Wedge 2pcs

UT Normal Probe 2.5P20 1pc

UT Angle Probe 2.5P13×13 60°1pc

UT Probe Cable LEMO 00-BNC 2pcs

Li-ion battery 1pc

Charger 1pc

Power converter 1pc

HDMI Cable 1pc

Crossover Cable 1pc

Allen Wrench (S2.5) 1pc

Instrument Suitcase 1pc

USB Drive Disk (8G) 1pc

User Manual 1pc

Certificate 1pc

Optional accessories

TOFD Probe 5MHz 6mm/7.5MHz 3mm/

TOFD Wedge 60°w/anti-wear nail , 70°w/anti-wear nail

TOFD Wedge R100 curve surface R100/0°

TOFD Probe Cable LEMO 00-LEMO 00

Non-Parallel TOFD Scanner

Scanner for Phased Array

Encoder Cable Extension

Other Allen Wrench for TOFD

Other probes/wedge for Phased Array and TOFD

Calibration block
